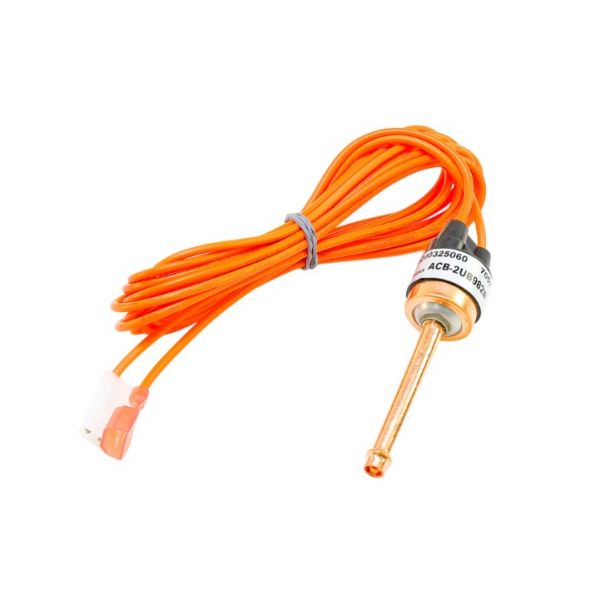

Trane SWT3403 High Pressure Switch 61" Open 650 PSI Close 550 PSI
Special Price $48.41 Regular Price $62.94
In stock
SKU
SWT3403
The Trane SWT3403 is one of the High-Pressure switches manufactured and intended for deploying in refrigeration as well as air conditioning systems. It consists of a switch operated by a spring that opens at several pressure degrees of 650 PSI, cutting off power to the compressor and averting harm. The switch closes and restarts the compressor when the pressure drops to a second predetermined value of 550 PSI. The is constructed with materials such as stainless steel discs and it is housed in an IP65 enclosure which means that it is protected from dust and water. This has brazed orange leads and a direct mount system.
Manufacturer:
Specifications
- Length: 8"
- Height: 1.95"
- Contact Configuration: SPST
- Enclosure Type: IP65
- For Use With: Refrigeration and Air Conditioning Systems
- Material: Stainless Steel Disc
- Mounting Type: Direct
- Pressure Rating: Open 650 PSI Close 550 PSI
- Standards: CE,TUV,UL,VDE
- Terminal Type: Lead Wire
- Voltage: 250 VAC
- Contact Arrangement: Normally Closed
- Current Rating: 8A
- Features: Orange Leads, Brazed
- Function: High
- Mount: Direct
- Number of Poles: 1
- Power Rating: 8.0 FLA, 48 LRA at 120/240 VAC
- Size: 22.6 mm Diameter 49.4 mm Length
- Temperature: -22°F to 185°F
- Type: Cartridge Control, High, Small Disc
- Weight: 0.18lb
