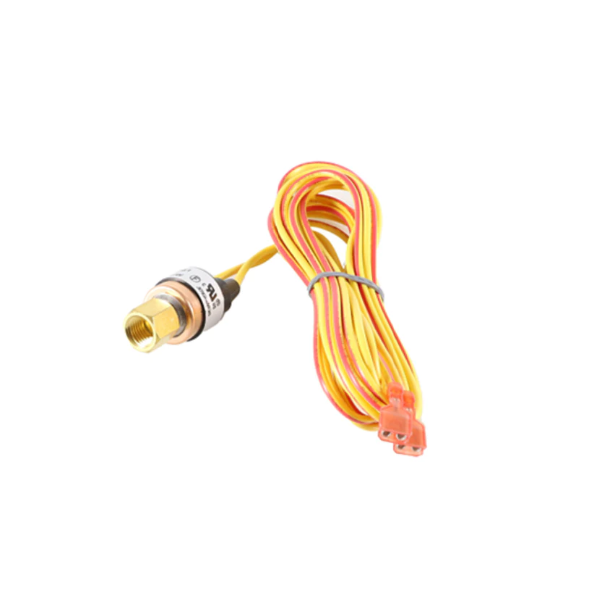

Trane SWT3211 High Pressure Switch 650 PSI Open 500 PSI Close
Special Price $59.55 Regular Price $68.49
In stock
SKU
SWT3211
The Trane SWT3211 is a High-Pressure Switch that is essentialcomponent of refrigeration and AC systems. This switch comes with an opening pressure of 650 PSI and a closing pressure of 500 PSI thus it manages and protects the high pressure range within the system. It has to include automatic/manual reset capability for flexibility according to the prevailing conditions. The specifications of this manufacturable can be CE, TUV, UL, and VDE and it is known to have met high quality and safety standards. It has an SPST contact configuration, 8A current rating, and 250 VAC voltage making it compatible with various systems.
Manufacturer:
Specifications
- Length: 9"
- Height: 1.95"
- Contact Configuration: SPST
- Enclosure Type: IP65
- For Use With: Refrigeration and Air Conditioning Systems
- Material: Stainless Steel Disc
- Mounting Type: Direct
- Size: 22.6 mm Diameter 49.4 mm Length
- Temperature Rating: -22°F to 185°F
- Type: Cartridge Control, High, Small Disc
- Pressure: Opens at 650 PSI, Close at 500 PSI
- Current Rating: 8A
- Features: Automatic/Manual Reset
- Function: High
- Mount: Direct
- Number of Poles: 1
- Pressure Rating: -0.5 to 45 Bar Operating, 5 Burst, 8 Proof
- Standards: CE,TUV,UL,VDE
- Terminal Type: Lead Wire
- Voltage: 250 VAC
- Weight: 0.27lb
