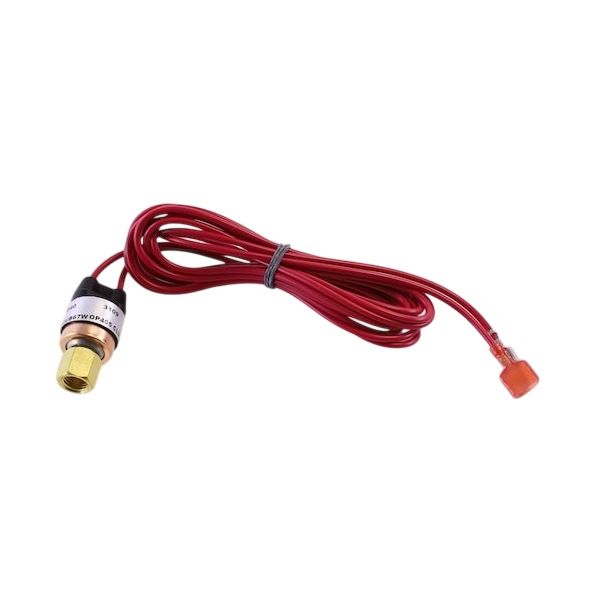

Trane SWT1720 High Pressure Switch 405 PSI Open/300 PSI Close
Special Price $44.20 Regular Price $57.46
In stock
SKU
SWT1720
The Trane SWT1720 High Pressure Switch is an essential component which is installed in refrigeration and air conditioning systems to control high pressure. This switch comes with a stainless steel disc and has dimensions of 6” in length, 1.95” height, and is ideal for use in different HVAC applications. Its SPST contact configuration and normally closed design make it to shut down circuit operation as soon as pressure goes beyond 405 PSI to protect the system. The switch is designed to work in pressure range from -0.5 to 45 Bar and is capable to withstand burst pressure up to 300 Bar, it is effective in different conditions. It is an IP65 enclosure protection, it is dust tight and water resistant.
Manufacturer:
Specifications
- Length: 6"
- Height: 1.95"
- Contact Configuration: SPST
- Enclosure Type: IP65
- For Use With: Refrigeration and Air Conditioning Systems
- Material: Stainless Steel Disc
- Mounting Type: Direct
- Pressure Rating: -0.5 to 45 Bar Operating, 300 Bar Burst
- Terminal Type: Lead Wire
- Voltage: 250 VAC
- Contact Arrangement: Normally Closed
- Current Rating: 8A
- Features: Automatic/Manual Reset, with Deflator
- Function: High
- Mount: Direct
- Number of Poles: 1
- Power Rating: 6.0 FLA, 36 LRA at 120/240 VAC
- Pilot Duty - 77 VA at 24 VAC
- 375 VA at 120/277 VAC. 2A at 28 VDC, 1A at 24 VAC Ext 100 & 120
- Size: 22.6 mm Diameter 49.4 mm Length
- Temperature Rating: -22°F to 185°F
- Type: Cartridge Control, High, Small Disc
- Weight: 0.19lb
