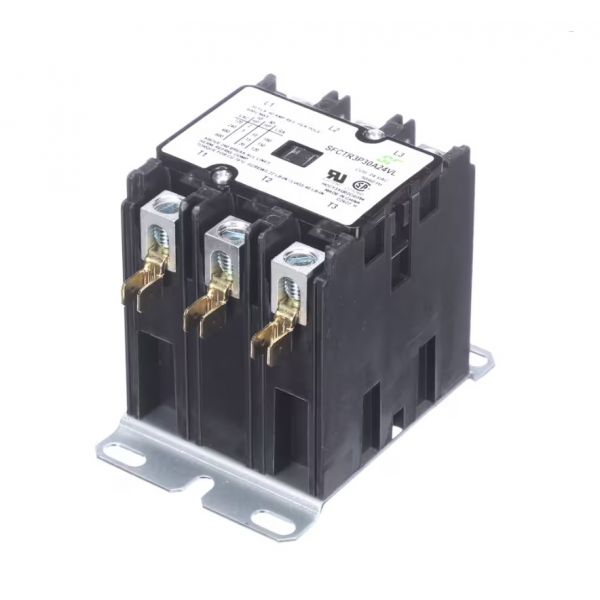

Trane SFCTR3P30A24VL 3-Pole Contactor 30 AMP 24V
Special Price $54.32 Regular Price $62.47
Out of stock
SKU
SFCTR3P30A24VL
The highly recommended Trane SFCTR3P30A24VL 3-Pole Contactor 30 Amp 24V is an electrical component used to control and switch high voltage circuits within the HVAC systems. It has the following dimensions; length of 2.91”, width of 3.62”, and height of 2.37” and has a chassis mounting design for vertical applications. This contactor uses a coil voltage of 24V and has a current rating of 30A for FLA (Full Load Amps) and 100 LRA (Locked Rotor Amps) which is suitable for HVAC units’ applications.The termination type available is combo screw, screw with pressure plate or lug for flexibility during the installation process.
Manufacturer:
Specifications
- Length: 2.91"
- Width: 3.62"
- Height: 2.37"
- Contact Configuration: 1 Normally Closed
- Current Rating: 30A
- For Use With: Optional Auxiliary Switch
- Includes: Universal Mounting Configuration and Termination Options Combo Screw, Screw with Pressure Plate, or Lug
- Mounting Type: Chassis Mount/Vertical
- Number of Poles: 3
- Resistive Load: 40A
- Standards: CSA,SEMKO/CE,UL 508
- Temperature Rating: -40°F to 150°F
- Type: Definite Purpose
- Coil Voltage: 24V
- Contact Current (A): 30 FLA, 100 LRA
- Frequency Rating: 50/60 Hz
- Material: Silver Cadmium Oxide Alloy Contact
- Aluminum Lug
- Switching Voltage: 600 VAC
- Terminal Type: Lug
- Weight: 1.02lb
