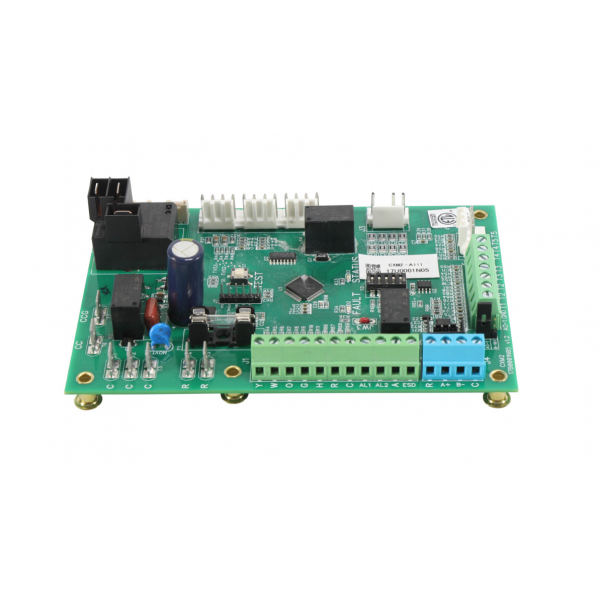

ClimateMaster S17S0001N05 Heat Pump Control Board

Rating:
5 5 6
6  Reviews Add Your Review
Special Price $158.11 Regular Price $181.82
In stock
SKU
S17S0001N05
The ClimateMaster S17S0001N05 Heat Pump Control Board an essential component in ClimateMaster geothermal heat pumps that are used in HVAC systems. This improved control board that directs central control of the system through the compressor, the fan speeds, the refrigerant, and the defrost functions as well. It tracks system performance continuous, modifies frequency and voltage instantly for maximum energy economy and furnishes diagnostic codes to address performance issues. Through the use of intelligent algorithms and sophisticated sensors. The control board makes sure the right heating and cooling, consuming little energy and at the same time extending the longevity of the system.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/1/s17s0001n05_-_nc.png

Specifications

  • Type: Heat Pump Control Board
    Write Your Own Review
    You're reviewing:ClimateMaster S17S0001N05 Heat Pump Control Board
    Your Rating
    Product Questions (2)
    Customer Questions
    What maintenance is required for the ClimateMaster S17S0001N05 Heat Pump Control Board?

    Inspect wiring connections and terminals regularly to ensure they are tight and free from corrosion. Keep the control board clean and free from dust buildup to prevent overheating and electrical faults. Check for error codes or irregular system behavior to catch issues early. Always disconnect power before performing inspections or maintenance for safety.

    What are common issues with the ClimateMaster S17S0001N05 Heat Pump Control Board?

    • System fails to start.
    • Intermittent or erratic operation.
    • Burnt or damaged circuits.
    • Error codes or communication faults.

    Installation Steps

    Step1: Turn off power to the heat pump and verify it’s fully disconnected.

    Step2: Open the control panel and label wiring before removing the old board.

    Step3: Install the new control board and reconnect all wires to matching terminals.

    Step4: Close the panel, restore power, and test the system to confirm proper operation.
