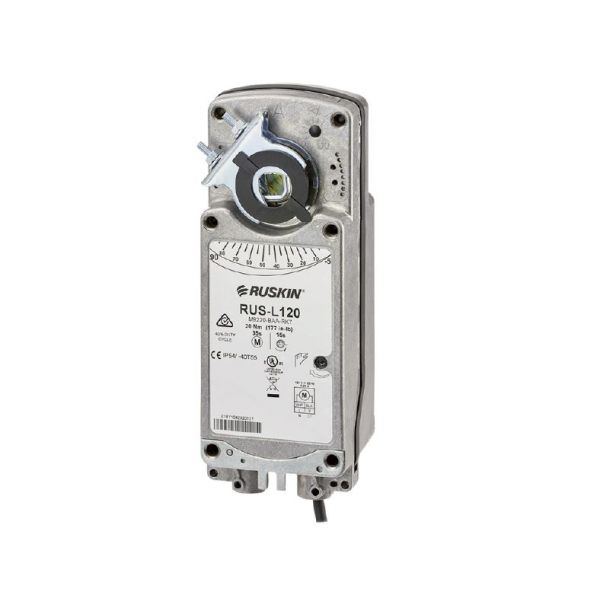

Ruskin RUS-L120(S) Electric On/Off Spring Return Actuator W/2 Integrated Auxiliary Switches 120V
Special Price $1,693.44 Regular Price $1,879.72
In stock
SKU
RUS-L120(S)
The Ruskin RUS-L120(S) Electric Actuator is designed to provide accurate control and spring return for the HVAC systems to operate effectively. It also operates to move dampers to their safe state during power failure. It is powered by 120V and has a 3’ cable and it consumes 0.25A in the driving mode and 0.13A in the holding mode, and it returns in less than 15 seconds. Suitable for shaft size 3/4” to 1-1/16” and work in the temperature range of -40°F to 131°F with a humidity level of up to 90%. It is widely used in air damper and ventilation equipment to improve the safety, automation and energy efficiency of HVAC systems.
Manufacturer:
Specifications
- Type: Actuator
- Voltage: 120V
- Shaft Mounting: 3/4" to 1-1/16"
- Spring Return: Yes
- Running Time: Drive-24 to 57 Sec, Spring-Lessthan 15 Sec
- Power Consumption: Running 0.25 amps, Holding 0.13 amps
- Electrical Connection: 3' Cable
- Humidity: 5% to 90% non-condensing
- Ambient Temperature Range: -40°F to 131°F
