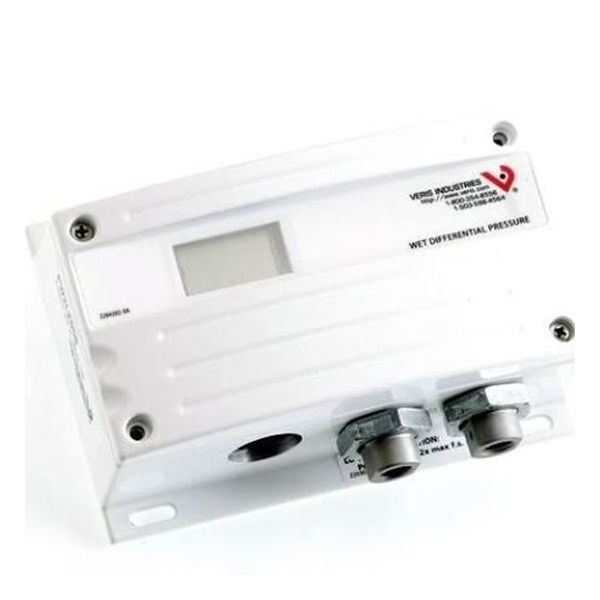

Veris Industries PWLX05S Wet Pressure Transducer W/LCD 0-250 PSI

Wet Media Differential Pressure Transmitter Veris Industries PWLX05S

The Veris Industries PWLX05S is a wet differential pressure transmitter designed for measuring pressure differences in liquid or gas media in various industrial applications. Its robust construction, microprocessor-controlled accuracy, and user-friendly features make it a reliable choice for monitoring pressure in pumps, filters, heat exchangers, and other equipment.

Key Features:

• Wet-wet differential pressure measurement: Suitable for measuring pressure difference between two liquid or gas media.
• Microprocessor-controlled accuracy: Provides exceptional accuracy of ±1.0% of full scale, ensuring reliable pressure readings.
• LCD display: Offers clear and easy-to-read pressure readings on a backlit LCD display.
• Jumper-selectable output switch: enables the choice of a regular (4-20 mA) or reverse (20-4 mA) output for interoperability with different control systems.
• Rugged, die-cast enclosure: Provides NEMA 4 sealing for protection against dust, moisture, and harsh environmental conditions.
• Switch-selectable pressure ranges: Reduces the need for multiple models and simplifies inventory management.
• Pushbutton and remote zero adjustment: Enables easy calibration and maintains accuracy over time.
• Jumper-controlled electronic surge dampening: lessens the effect of pressure variations and increases stability.
• Dual sensor design: Eliminates the need for a bypass valve in most applications, simplifying installation and reducing potential leak points.

Applications:

The Veris PWLX05S is ideal for various applications requiring accurate measurement of differential pressure in wet media, including:

• Pumping systems: Monitoring differential pressure across pumps to optimize performance and prevent cavitation.
• Filtration systems: Measuring pressure drop across filters to determine service intervals and ensure proper filtration efficiency.
• Heat exchangers: Monitoring differential pressure across heat exchanger plates to optimize heat transfer and detect potential fouling.
• Compressor systems: Measuring pressure difference across compressors to optimize performance and prevent overpressurization.
• Oil and gas production: Monitoring pressure in pipelines and wellheads for safety and efficiency purposes.

Signs of a Faulty PWLX05S Wet Media Differential Pressure Transmitter Veris Industries:

The Veris Industries PWLX05S is a reliable wet differential pressure transmitter, but like any equipment, it can experience issues over time. Here are some warning signs that might indicate a faulty Wet Media Differential Pressure Transmitter PWLX05S:

Inaccurate Measurements:

• Significant deviations from expected pressure readings: This could be due to sensor malfunction, calibration drift, or issues with the media being measured.
• Erratic or fluctuating pressure readings: This could indicate internal electrical problems or unstable pressure conditions in the system.
• Output signal inconsistencies: If the 4-20 mA or 20-4 mA output signal deviates from the expected range, it suggests issues with the transmitter's electronics.

Display Issues:

• Dim or malfunctioning LCD display: This could be due to battery depletion, internal electrical issues, or environmental factors affecting the display.
• Incorrect or missing pressure readings on the display: This could indicate sensor malfunction, communication problems, or software issues.

Physical Signs:

• Visible damage to the enclosure: Cracks, dents, or corrosion on the enclosure can compromise its sealing and affect internal components.
• Leaks around the sensor connections: This could indicate loose fittings, damaged O-rings, or internal pressure build-up beyond the transmitter's capacity.
• Unusual sounds or vibrations: Excessive noise or vibration from the transmitter could be a sign of internal component failure or problems with the pressure media.

Other Warning Signs:

• Increased maintenance needs: If the Wet Media Differential Pressure Transmitter PWLX05S requires frequent calibration or maintenance compared to its usual operation, it could indicate underlying issues.
• Failure to respond to calibration attempts: If the transmitter doesn't respond to calibration attempts using the pushbutton or remote methods, it suggests internal electronic problems.
• Failure to boot up or complete self-test: If the Wet Media Differential Pressure Transmitter PWLX05S doesn't display the initial readings or complete its self-test during startup, it indicates potential internal malfunction.
