The Functional Devices PSH300A-LVC 300VA Power Supply converts input voltages from 120V to 480V to a stable 24V output. An on/off handled unit fitting well in HVAC systems to supply reliable power to low voltage control actuators and other components. The durable construction supports long-term performance, and its high power capacity makes it compatible with demanding applications. It improves the system efficiency by supplying stable power, causing minimum operational disturbances, and consuming less energy. It is ideal for commercial and industrial and simplifies installation, supports a broad range of equipment, and is dependable for operation lowering maintenance and enhancing the reliability of the entire system.

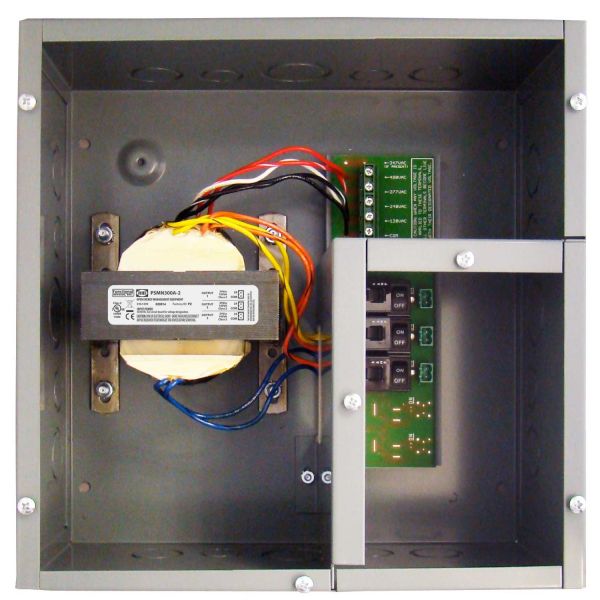

There are three 100VA Class 2 outputs on the Functional Devices PSH300A-LVC, a 300VA power supply. It is designed for use in building automation and lighting control applications. The PSH300A-LVC has a metalenclosure and separate wiring compartments for high and low voltage circuits, making it ideal for applications where safety is a concern.
Key Features:
Function:
Converts incoming high voltage (typically 480V, 277V, 240V, or 120V) to safe and usable low voltage (24VAC) power.
Provides three independently isolated 100VA output circuits. This allows powering various low-voltage devices without risk of electrical interference between them.
Offers high/low voltage separation: The high-voltage wiring compartment is physically separated from the low-voltage compartment, enhancing safety and compliance with electrical codes.
Suitable for Variable Air Volume (VAV) applications: Its compact size and quiet operation make it ideal for integrating into HVAC systems with variable air volume control.
Specifications:
Input voltage: 480VAC, 277VAC, 240VAC, or 120VAC (depending on model).
Output voltage: 24VAC.
Output current: 4 Amps per circuit.
Output power: Triple 100VA.
Enclosure: Metal, which gives interior components strength and protection.
Mounting: Wall-mountable for convenient installation.
Features:
On/off switch and circuit breaker for each output for independent control and protection.
LED indicators for monitoring power status of each circuit.
Plugable terminal blocks for easy low-voltage wiring connections.
OSHPD-approved for use in healthcare facilities.
Benefits:
Enhances safety: High/low voltage separation and individual circuit protection minimize electrical hazards.
Improves reliability: Provides stable and isolated power for sensitive low-voltage devices.
Simplifies installation: Compact size, wall-mounting option, and plugable terminal blocks make for easy integration into various systems.
Versatility: Suitable for diverse applications in building automation and lighting control, particularly VAV systems.
Important notes:
Always consult a qualified electrician before installing or connecting the PSH300A-LVC.
Verify compatibility with your specific system voltage and power requirements.
Observe the manufacturer's installation guidelines and safety advice with great care.
Additional information:
Functional Devices offers various RIB® power supply series with different configurations and features. Make your choice based on whatever model best suits your specific needs.
Consider consulting with a qualified HVAC or electrical contractor for assistance with selecting and installing the appropriate power supply for your building automation or lighting control system.
Signs of a Faulty Functional Devices PSH300A-LVC power supplies:
The Functional Devices - PSH300A-LVC enclosed power supply can manifest in several ways, potentially affecting your building automation or lighting control system.
Performance Issues:
Low-voltage devices not functioning properly: This could be due to the power supply failing to deliver stable or sufficient voltage to one or more output circuits.
Flickering lights or intermittent operation: If lights connected to the PSH300A-LVC flicker or turn on and off unexpectedly, it might indicate voltage fluctuations or instability.
HVAC system malfunctioning: In VAV systems, a faulty power supply could disrupt damper control or communication with other system components, leading to temperature control issues.
Unusual noise or vibrations: If you hear buzzing, humming, or other unusual noises coming from the power supply, it could be a sign of internal component failure.
Safety Concerns:
Tripped circuit breakers: If the circuit breakers on the PSH300A-LVC trip frequently, it indicates an overload or potential fault within the unit.
Burning smell: A burning smell emanating from the power supply is a serious indicator of overheating or electrical malfunction. Immediately shut down the system and disconnect power if you experience this.
Visible damage: If you notice any physical damage to the enclosure, wiring, or internal components, it's best to stop using the power supply and seek professional help.
Other:
Error codes or indicator lights: Some models of the PSH300A-LVC might display error codes or have LED indicators that provide clues about the source of the problem. For detailed code explanations and troubleshooting instructions, consult the handbook.
Increased energy consumption: In some cases, a faulty power supply might operate inefficiently, leading to higher energy bills.
Remember:
Safety first! If you suspect any safety concerns like burning smells, tripping circuit breakers, or visible damage, immediately shut down the system and disconnect power. For an inspection and repair, get in touch with a licensed electrician.
Never try to diagnose or fix the PSH300A-LVC power supplies on your own.When using electrical machinery, it might be risky to operate it without the required expertise.
