Functional Devices PSH300A 300VA Power Supply is 120/240V input voltage to 300VA power supply for HVAC systems. This part provides power to low-voltage equipment such as controls, actuators, and communication modules, and provides consistent and efficient operation. It is a robust construction with high power capacity and is suitable for commercial and industrial applications. By delivering stable power, it reduces downtime and improves system reliability and equipment overall performance, it supports energy efficiency, reduces maintenance requirements, offers durability, and is an essential component for optimizing HVAC system functionality.

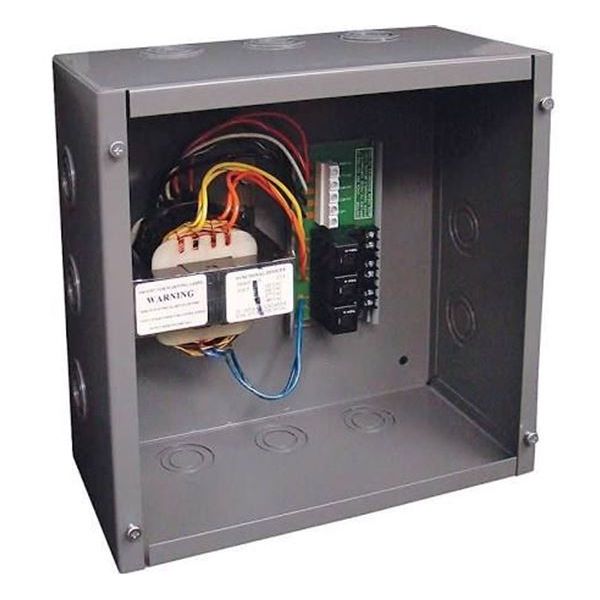

The Functional Devices PSH300A is a compact, enclosed power supply designed to provide reliable and isolated 24VAC power for various low-voltage applications in building automation and lighting control systems. The PSH300A has a metal enclosure and offers several safety features, making it ideal for applications where safety is a concern.
Key Features:
Function:
Converts high voltage (480VAC, 277VAC, 240VAC, or 120VAC) to safe and isolated 24VAC power.
Provides three independent 40VA output circuits. This caters to powering multiple low-voltage devices while maintaining electrical separation for safety and performance.
provides a panel-mount variant (PSMN300A) that is optional and does not have a metal housing. This provides flexibility for integration into specific equipment layouts.
Features:
Compact and lightweight design: Ideal for space-constrained applications.
High/low voltage separation: Ensures safety and code compliance by physically separating high and low voltage compartments.
On/off switch and circuit breaker for each output: Provides independent control and protection for each connected device.
LED indicators for each output: Offers real-time monitoring of circuit status.
Plugable terminal blocks for low-voltage wiring: Simplifies installation and maintenance.
UL Listed and CSA certified: Meets safety and performance standards.
Applications:
Building automation systems: Powers sensors, actuators, controllers, and other low-voltage equipment.
Lighting control systems: Provides power for LED drivers, control modules, and relays.
HVAC systems: Supports damper control, communication modules, and other low-voltage components.
Industrial automation: Powers various low-voltage devices in industrial control systems.
Specifications:
Input voltage: 480VAC, 277VAC, 240VAC, or 120VAC (depending on model).
Output voltage: 24VAC.
Output current: 1.67 Amps per circuit.
Output power: 3 x 40VA (total 120VA).
Enclosure material: Metal (PSH300A) or none (PSMN300A).
Mounting: Wall-mountable (PSH300A) or panel-mountable (PSMN300A).
Important notes:
Always consult a qualified electrician before installing or connecting the PSH300A.
Verify compatibility with your specific system voltage and power requirements.
Seek guidance from the manufacturer regarding installation procedures and safety advice.
Additional information:
Functional Devices offers various RIB® series power supplies with different configurations and features. Choose the model that best satisfies your particular needs.
Consider consulting with a qualified HVAC or electrical contractor for assistance with selecting and installing the appropriate power supply for your building automation or lighting control system.
Signs of a Faulty Functional Devices PSH300A power supplies:
The Functional Devices PSH300A power supply can manifest in several ways, potentially impacting your low-voltage systems and posing safety risks.
Performance Issues:
Low-voltage devices not functioning properly: This could be due to the power supply failing to deliver stable or sufficient voltage to one or more output circuits. Watch for malfunctioning sensors, actuators, controllers, or LED drivers connected to the PSH300A.
Flickering lights or intermittent operation: If lights connected to the power supply flicker or turn on and off unexpectedly, it might indicate voltage fluctuations or instability.
HVAC system malfunctioning: In VAV systems, a faulty power supply could disrupt damper control, communication with other system components, or lead to temperature control issues.
Unusual noise or vibrations: If you hear buzzing, humming, or other unusual noises coming from the power supply, it could be a sign of internal component failure.
Safety Concerns:
Tripped circuit breakers: If the circuit breakers on the PSH300A trip frequently, especially on individual circuits, it indicates an overload or potential fault within the unit.
Burning smell: A burning smell emanating from the power supply is a serious indicator of overheating or electrical malfunction. Immediately shut down the system and disconnect power if you experience this.
Visible damage: If you notice any physical damage to the enclosure, wiring, or internal components, it's best to stop using the power supply and seek professional help.
Additional Warning Signs:
Dimmed or flickering LED indicators: While individual circuit indicators can be helpful, dimmed or flickering lights for any output could indicate issues with that specific circuit.
Error codes or indicator lights: Some models of the PSH300A power supplies might display error codes or have additional LED indicators that provide clues about the source of the problem. See the handbook for detailed explanations of codes and instructions for troubleshooting.
Increased energy consumption: In some cases, a faulty power supply might operate inefficiently, leading to higher energy bills.
Remember:
Safety first! If you suspect any safety concerns like burning smells, tripping circuit breakers, or visible damage, immediately shut down the system and disconnect power. Get in touch with a licensed electrician for maintenance and inspection.
The PSH300A should not be repaired or diagnosed by you. It could be dangerous to work with electrical equipment if you lack the necessary skills and understanding.
