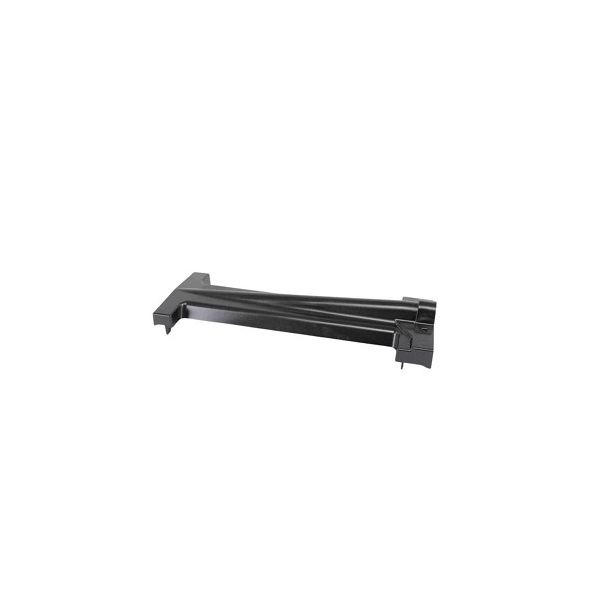

Trane PAN3096 Drain Pan 19.5 X 7.3

The Trane PAN3096 Drain Pan that has been designed for up-flow HVAC systems only. Water forms on the evaporator coil and drops off during operation sometimes due to the cooling effect. Due to the risk of affecting the area surrounding the equipment and the structure of the building, this condensate has to be collected and subsequently removed. To collect this condensate, the Trane is placed below the evaporator coil as shown in the figure below. The pan is made to be long-lasting because it is constructed from materials that do not corrode. Due to its size (19.5” by 7.3”), it can be used with nearly any flow system.
