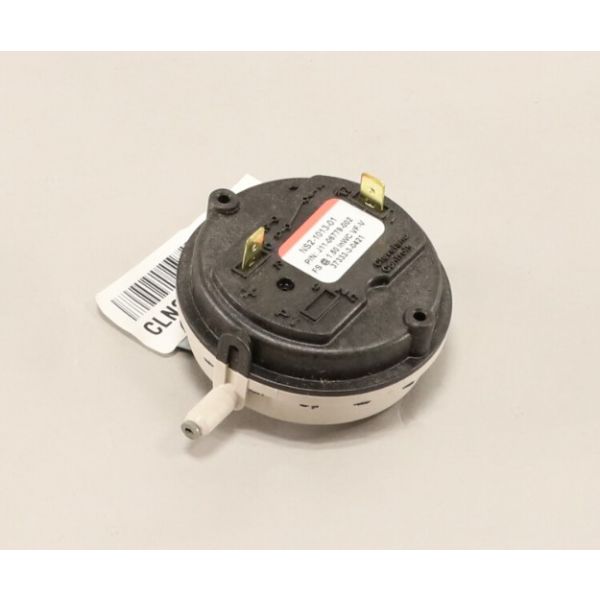

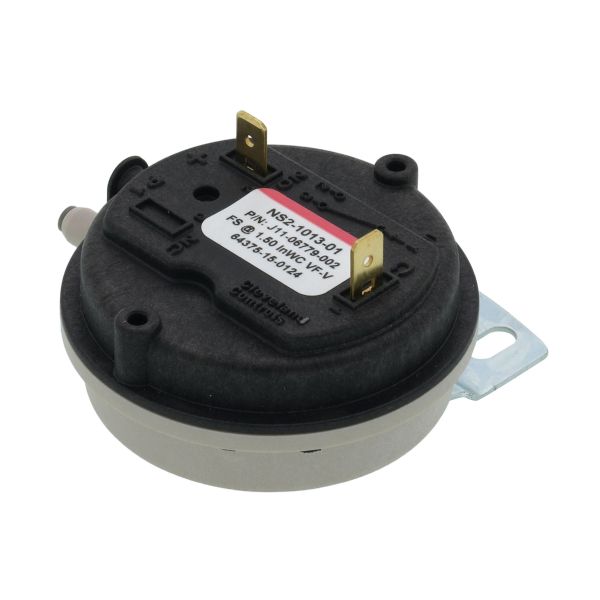

The Cleveland Controls NS2-1013-01 Pressure Switch is used to control and measure low-pressure air systems. It especially functions at a fixed pressure of 1.5 inches of water column. This switch works by detecting pressure in an air system and using the pressure to make or break an electrical circuit. If the pressure in the system falls below the 1.5” WC, the switch will normally make the circuit and send a signal to a control system. This signal can then trigger other operations such as turning on a fan, blower, or compressor to set right the pressure in HVAC systems.
Manufacturer Name:Cleveland Controls Product Number: NS2-1013-01 OEM Part Number: NS2-1013-01
Product Description Of Cleveland Controls NS2-1013-01 Pressure Switch:
Pressure switches used in HVAC systems, including those with a 0.08"Wc (inches of water column) rating, play a crucial role in monitoring and controlling air pressure within the system. Pressure switches are designed to sense the air pressure within the HVAC system. The 0.08"Wc rating indicates the specific pressure level they can detect. These switches offer high precision in measuring small changes in pressure, making them suitable for applications that require fine pressure control. They are equipped with a switching mechanism that activates or deactivates based on whether the sensed pressure falls below or rises above the predetermined setpoint. The pressure switches allow for the adjustment of the setpoint, enabling HVAC technicians to fine-tune the pressure at which the switch triggers. Pressure switches typically employ a snap-action mechanism or a diaphragm to make the switch between on and off states. These switches are used in various HVAC applications, including monitoring air pressure in ducts, filters, and combustion chambers. Pressure switches contribute to the safety and protection of HVAC systems by ensuring that pressure remains within safe and optimal operating limits. They respond quickly to pressure changes, helping to maintain the desired pressure level and prevent pressure-related issues in the system. Pressure switches are available in different mounting options, allowing for versatile installation in HVAC systems. They come with specific electrical ratings to ensure compatibility with the HVAC system's electrical components. These switches are generally low-maintenance components, requiring periodic checks to ensure they are functioning correctly.
Key features of the Cleveland controls pressure switches are:
Accurate measurement of small pressure changes.
Allows fine-tuning of the pressure at which the switch activates.
Ensures pressure remains within safe operating limits.
Durable and reliable for extended service life.
The 0.08"Wc Pressure Switches used in HVAC systems are vital for monitoring and controlling air pressure, ensuring the safe and efficient operation of heating, ventilation, and air conditioning systems. Their precision and responsiveness help maintain the desired pressure levels, enhancing overall system performance and safety.
Weight:0.14lbs/63.5g
Choose the best HVAC equipment parts and supplies from PartsHnC!
Can multiple pressure switches be connected in a series or parallel configuration to monitor different pressure points within a complex HVAC system?
Multiple pressure switches can be configured in series or parallel to monitor different pressure points. Proper configuration can enhance system control and safety, ensuring that multiple pressure parameters are met.
What measures should be taken to protect pressure switches from damage caused by power surges or voltage fluctuations in the electrical system?
Surge protection devices may be recommended to protect pressure switches from damage due to power surges or voltage fluctuations. Consult with an electrician or the manufacturer for guidance.
Can pressure switches be installed in systems with variable refrigerant flow (VRF) HVAC technology, and what considerations should be made?
Pressure switches can be used in VRF HVAC systems. Consider the specific pressure range requirements and compatibility with VRF system designs when selecting a pressure switch.
