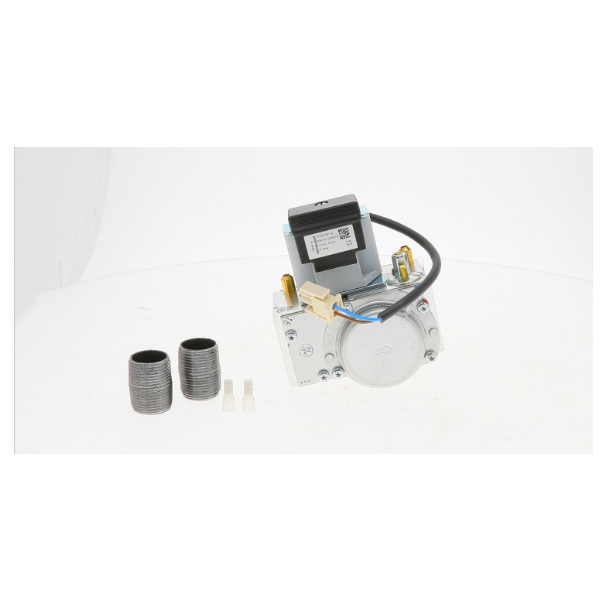

Lochinvar & A.O. Smith 100172009 Natural Gas Valve Assembly

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $718.54 Regular Price $797.58
In stock
SKU
100172009
The Lochinvar & A.O. Smith 100172009 Natural Gas Valve Assembly is an essential part used in the gas fired heating systems like water heater and boilers. This valve assembly controls the amount of natural gas supplied to the burner in order to avoid complications. It has a strong construction that can enable the user to regulate gas pressure and flow rate to improve the system’s performance and stability. This assembly ensures constant delivery of gas hence promoting efficient combustion and thereby conserving energy while at the same time reducing on the emission of gases particularly in HVAC systems.
Add to Wish List
HVAC Controls, HVAC Valve
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/100172009_lochinvar--a.o.-smith_partshnc.png

Specifications

  • Type: Gas Valve Assembly
  • Flue Type: Natural Gas

Product Overview:
Functioning as a fuel control component within gas supply systems, the Lochinvar & A.O. Smith 100172009 Natural Gas Valve Assembly manages natural gas flow in applicable equipment assemblies. This gas valve assembly forms part of the equipment gas train and provides controlled fuel passage for designated Lochinvar and A.O. Smith gas-fired heating systems. Specified for Natural Gas applications, the component supports fuel delivery within compatible commercial and residential equipment.

Gas Valve Assembly Operation:
Within the equipment fuel train, natural gas is directed through the valve assembly toward the burner circuit. The internal valve mechanism regulates this passage according to the heating system's operating sequence. Its position within the gas train allows the assembly to manage fuel delivery between the supply line and burner circuit.

Gas Supply Line Placement:
Positioned within the equipment gas supply line, the assembly forms part of the Natural Gas fuel train. Its main body ports provide the designated connection points for gas flow through the equipment. The valve assembly therefore serves as the fuel-control interface between the gas supply path and the applicable heating equipment.

Replacement Guidelines:
Replacement may be appropriate when the gas valve assembly shows physical damage or no longer performs its intended fuel-control function. For the Lochinvar & A.O. Smith 100172009, conditions that may indicate replacement include damaged connection ports, cracked valve-body components, gas leakage, or failure to properly control gas passage. A replacement assembly restores the specified gas valve configuration when the existing component is no longer suitable for service.

Common Failure Symptoms:

  • Gas leakage around the main connection points
  • Gas odor detected near the valve assembly, requiring immediate professional evaluation
  • Failure of the valve assembly to permit gas passage when required by the equipment
  • Failure to properly stop gas passage when required by the equipment controls
  • Visible cracking or physical damage to the valve body
  • Stripped, cross-threaded, or damaged gas connection ports

Equipment Compatibility:
The Lochinvar & A.O. Smith 100172009 is specified as a Natural Gas valve assembly for applicable Lochinvar and A.O. Smith equipment. Before selecting a replacement, verify the equipment model, fuel type, existing part number, and applicable manufacturer documentation to confirm the required valve assembly.

Technical Specifications:
Brand: Lochinvar & A.O. Smith
Part Number: 100172009
Fuel Type: Natural Gas
Component Type: Gas Valve Assembly

Reviews 2
Write Your Own Review
You're reviewing:Lochinvar & A.O. Smith 100172009 Natural Gas Valve Assembly
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Lochinvar & A.O. Smith 100172009 Gas Valve Assembly?

Regularly inspect the gas valve assembly for leaks, corrosion, or loose connections. Ensure all fittings are secure and free of debris. Proper maintenance ensures safe gas flow and accurate operation. Always shut off the gas supply before servicing.

What are common issues with the Lochinvar & A.O. Smith 100172009 Gas Valve Assembly?

  • Gas leaks or improper sealing.
  • Valve sticking or failing to open/close.
  • Erratic gas pressure delivery.
  • Damage to valve components.

What does the Lochinvar & A.O. Smith 100172009 gas valve assembly do?

The 100172009 natural gas valve assembly regulates fuel passage within gas-fired heating equipment and controls gas flow toward the burner circuit.

How does the 100172009 control gas flow through the heating equipment?

The assembly manages natural gas movement through the fuel train and controls the passage of gas toward the burner system.

Where does the 100172009 valve assembly operate within the equipment?

The valve assembly operates within the gas supply line or fuel train between the incoming gas supply and the burner system.

How does the 100172009 support burner operation?

The assembly controls the fuel pathway leading toward the burner, coordinating gas delivery with the equipment's operating sequence.

What maintenance considerations apply to the 100172009 gas valve assembly?

The gas valve assembly should be checked as part of appropriate heating-equipment service to identify conditions that could affect gas-flow control or burner operation. Follow the equipment manufacturer's servicing requirements for specific inspection or maintenance procedures.

Installation Steps

Step 1: Turn off the HVAC system power and shut off the gas supply.

Step 2: Remove the old gas valve assembly carefully, keeping screws and fittings organized.

Step 3: Position the new valve assembly, aligning all connections.

Step 4: Reinstall screws and secure the assembly properly, ensuring a tight seal.

Step 5: Reconnect gas and power, then test for leaks and proper operation.
