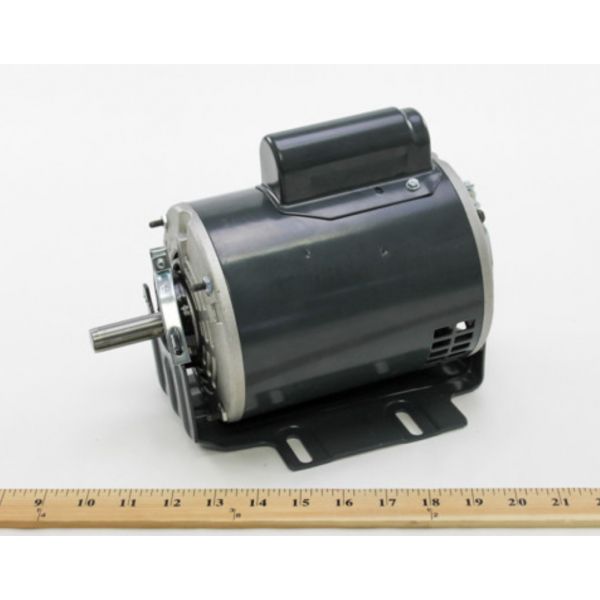

Trane MOT3072 Motor 1/2 HP 115/208-230V 3450 RPM
Special Price $822.46 Regular Price $912.94
Out of stock
SKU
MOT3072
The Trane MOT3072 is a commercial motor for use in different Trane HVAC equipment and systems. This single-phase capacitor start motor has half horsepower and yields 62% efficiency. It is 9.36” in body length and comes with ball bearings to ensure that operation is smooth and quiet. The resilient mounting system also helps to reduce vibration transfer and therefore helps to reduce noise. The MOT3072 is designed to last, with an automatic overload protector that protects it from overheating. It has a reversible rotation (CW/CCW) and voltage range of 115/208-230V, 60 Hz suitable for several Trane applications.
Manufacturer:
Specifications
- Bearing Type: Ball
- Body Length: 9.36"
- Efficiency: 62%
- Enclosure Type: ODP
- Frame Size: 56
- Frequency: 60 Hz
- HP: 1/2
- Insulation Class: B
- Keyway Size: 3/16 x 8/85 x 1-3/8"
- Load Current: 7.4 A
- Motor Type: AC
- Mounting Type: Resiliant
- Number of Phases: 1
- Number of Shafts: 1
- Number of Speeds: 1
- Protector Type: Automatic
- Rotation: CW / CCW
- Service Factor: 1.25
- Shaft Diameter: 0.625"
- Shaft Length: 1.875"
- Standards: CSA,UL
- Technology: Capacitor Start
- Temperature Rating: 104°F-131°F
- Voltage: 115V
- RPM: 3450
- Weight: 17.45 lbs
