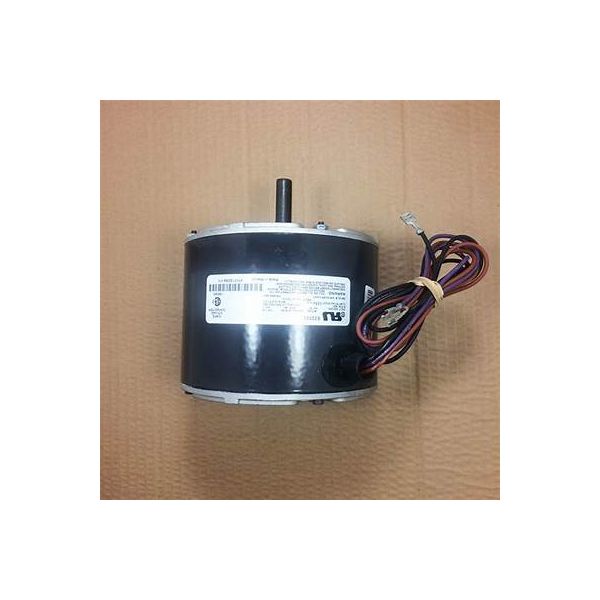

Trane MOT18456 Constant Torque Programmed Motor 1/2 HP 208/230V 1 Phase
Special Price $747.12 Regular Price $829.31
Out of stock
SKU
MOT18456
The Trane MOT18456 is designed for use with several HVAC systems. This motor operates at a voltage of 208-230V, 60 Hz and delivers 1/2 horsepower. The MOT18456 has five speeds that are programmable, which means that you can control the flow of air in the HVAC system better than you can with single-speed motors. Due to the program control, it is possible to set parameters for performance, for example, low noise level at low rpm or high cooling in hot weather. The motor has electronic overload protection to prevent electrical damage to the motor and ball bearings for a quiet, smooth operation.
Manufacturer:
Specifications
- Length: 16.5"
- Bearing Type: Ball
- Enclosure Type: 48
- Frame Size: 48
- Frequency: 60Hz
- HP: 1/2
- Load Current: 4.1A
- Motor Type: AC, Constant Torque Blower
- Mounting Type: Belly B and
- NEMA Dimensions: 5.6875 x 8.125"
- Number of Phase: 1
- Number of Speeds: 5
- Protector Type: Electronic Overload
- Rotation: CCW
- RPM: 1,050
- Standards: CSA, UL
- Technology: ECM
- Voltage: 208V-230V
- Weight: 11.36lbs
