Trane MOT17043 Programmed Motor 1/2 HP 208V-230V
Special Price $455.30 Regular Price $505.39
Out of stock
SKU
MOT17043

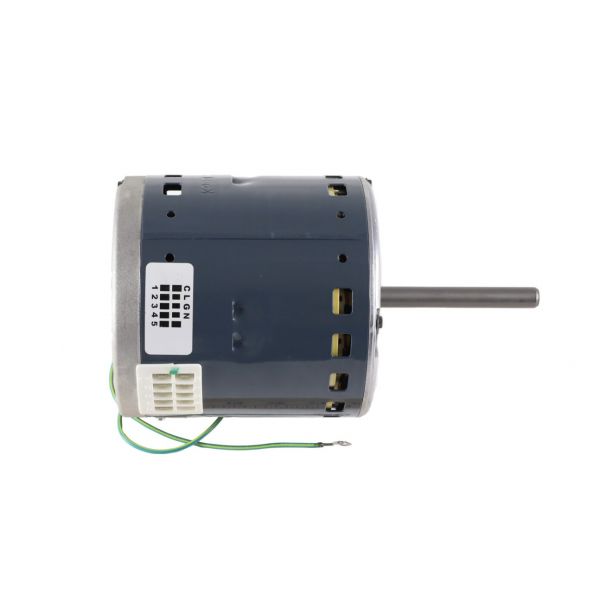

The Trane MOT17043 is a high-quality ECM with a sealed efficient bearing system for precise control of airflow through Trane HVAC products. This single-phase motor has 1/2 horsepower capacity and works at the voltage range of 208v-230v frequency 60 hertz. The dimensions are: length – 16.6 inches, width – 8.4 inches, height – 8.2 inches, and it uses ball bearings for movement no noise. Unlike the other PSC motors, the MOT17043 incorporates an enhanced ECM technology that makes it highly efficient. Additionally, the motor can be set to five different speeds that can be programmed to suit your needs within the Trane system for airflow.
Manufacturer:
Specifications
- Length: 16.6"
- Bearing Type: Ball
- Enclosure Type: 48
- Frame Size: 48
- Frequency: 60Hz
- HP: 1/2
- Load Current: 4.1A
- Motor Type: AC, Constant Torque Blower
- Mounting Type: Belly B and
- NEMA Dimensions: 5.6875 x 8.125
- Number of Phase: 1
- Number of Speeds: 5
- Protector Type: Electronic Overload
- Rotation: CCW
- RPM: 1050
- Shaft Diameter: 0.5"
- Height: 8.2"
- Width: 8.4"
- Standards: CSA, UL
- Technology: ECM
- Voltage: 208V-230V
- Weight: 11.4lbs
