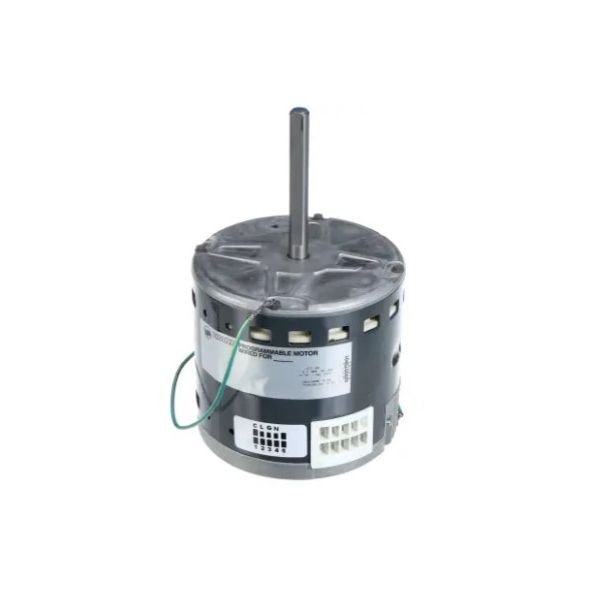

Trane MOT17042 Programmed Motor 1/3 HP 208/230V/60/1
Special Price $666.80 Regular Price $740.15
Out of stock
SKU
MOT17042
The Trane MOT17042 is a high-efficiency, 1/3 HP programmed Motor for use in Trane HVAC systems. This is a single-phase motor with a voltage range of 208-230V and 60 Hertz. Located in an ODP enclosure to protect from dripping liquids, this features ball bearings for noiseless and smooth operation. This is not your run-of-the-mill single-speed motor, it comes with five programmable speeds to provide you with flexibility and the ability to control the airflow within your Trane HVAC system to the letter. It also has a Constant Torque technology meaning that it will provide an unchanging airflow rate irrespective of the current speed.
Manufacturer:
Specifications
- Length: 18"
- Bearing Type: Ball
- Enclosure Type: ODP
- Frame Size: 56
- Frequency: 60 Hz
- HP: 1/3
- Insulation Class: B
- Load Current: 2.8A
- Motor Type: AC, Constant Torque Blower
- Mounting Type: Horizontal
- NEMA Dimensions: 5.6875 x 8.125"
- Number of Phase: 1
- Number of Speeds: 5
- Protector Type: Electronic Overload
- Rotation: CCW
- RPM: 1050
- Shaft Diameter: 0.5"
- Standards: CSA, UL
- Technology: ECM
- Type: AC
- Voltage: 208V-230V
- Weight: 10.73lbs
