Trane MOT12888 1/2HP Motor 1050-600 RPM CCW 208-230V
Special Price $722.73 Regular Price $802.23
Out of stock
SKU
MOT12888

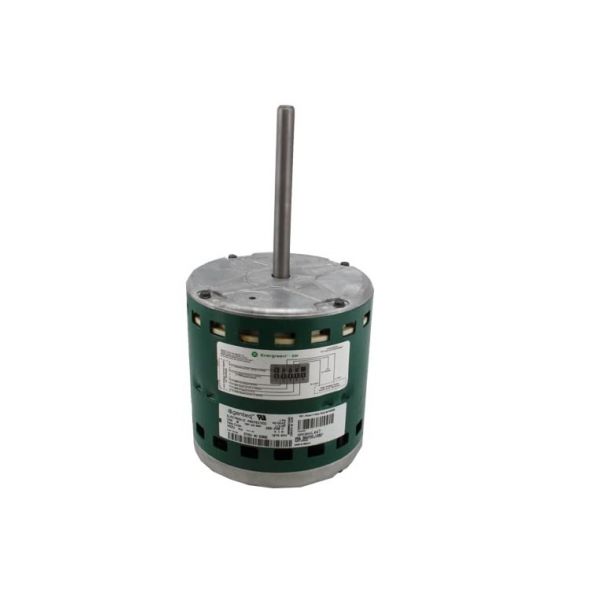

The Trane MOT12888 is a 1/2 horsepower motor designed for use with Trane HVAC equipment only. This is a 14” long electronic commutator motor (ECM) with a belly band mounting system for a close-fitting. It operates with a single-phase power supply with a voltage of 208V to 230V AC at 60 Hz. The motor rotates at a constant torque of 1050 RPM in the anticlockwise direction. An electrical overload protector safeguards the motor from damage that may be occasioned by high current demand. The Trane MOT12888 is different from common AC motors as it is equipped with ECM type and it has some benefits.
Manufacturer:
Specifications
- Length: 14"
- Enclosure Type: NEMA, Open Air Over, Continuous Air Over
- Frame Size: 48
- Frequency: 60 Hz
- HP: 1/2
- Load Current: 4.1A
- Motor Type: AC, Constant Torque Blower
- Mounting Type: Belly Band
- NEMA Dimensions: 5.6875 x 8.125"
- Number of Phase: 1
- Protector Type: Electronic Overload
- Rotation: CCW
- RPM: 1,050
- Shaft Diameter: 0.5"
- Standards: CSA, UL
- Technology: ECM
- Voltage: 208V-230V
- Weight: 11.49lbs
