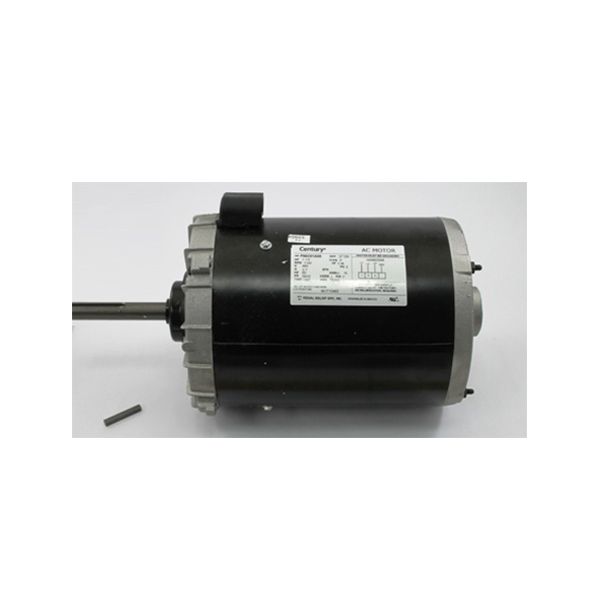

Trane MOT10483 Motor 460V 3 Phase 1 1/2 HP 1140 RPM
Special Price $1,175.13 Regular Price $1,304.39
In stock
SKU
MOT10483
The Trane MOT10483 is an industrial grade workhorse motor for use in Trane HVAC systems. The 1.5 horsepower, 3 phase motor runs on a wide voltage range of 380V to 415V, or 208V to 460V, at 50/60 Hz. The MOT10483 uses a seamless durable TEAO enclosure to protect it from dusts and debris, and ball bearings for quiet, smooth operation. With its 16.9" length and compact NEMA 6.625 x 9.125" frame size, it is suitable for flexible installation within Trane equipment. With its reliable 1140 RPM, this motor is perfect for driving fans, pumps, and compressors, all vital parts of an efficient heat transfer, air circulation, and keeping your indoor temperature comfortable.
Manufacturer:
Specifications
- Length: 16.9"
- Base Type: Ball
- Bearing Type: Ball
- Center Shaft Height: 3.25"
- Conduit Box: Plug
- Enclosure Type: TEAO
- Frame Size: 56
- Frequency: 50/60 Hz
- Full Load Amperage: 2.4A-2.5/2.7A
- HP: 1.5
- Insulation Class: F
- Keyway Size: 2-2/7"
- Load Current: 2.7A
- Motor Type: AC, Fan
- Mount: Belly Band
- NEMA Dimensions: 6.625 x 9.125"
- Number of Phase: 3
- Number of Speeds: 1
- Protector Type: Automatic
- Rotation: Reversible
- Service Factor: 1
- Shaft Diameter: 0.625"
- Shaft Length: 3.375"
- RPM: 1,200
- Standards: CSA, UL
- Technology: Poly Phase
- Thermal Protector: True
- Voltage: 380V-415V/208V-460V
- Weight: 36.74lbs
