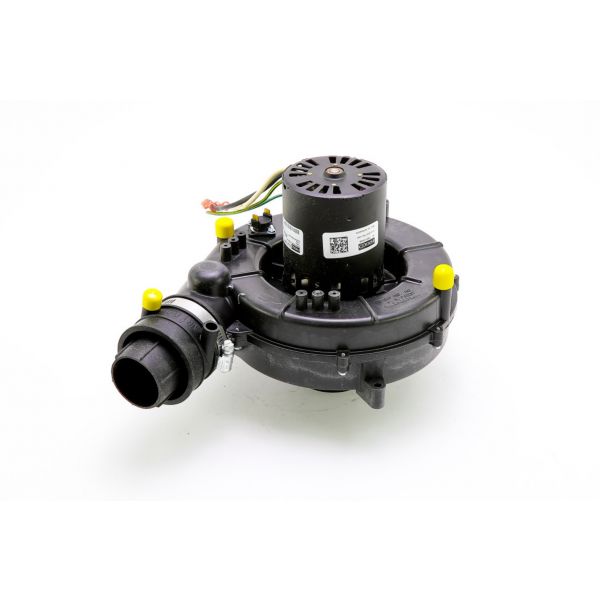

Lennox 92L14 Draft Inducer Blower Motor Assembly 3400 RPM 115V 60Hz

Special Price $398.99 Regular Price $442.88
In stock
SKU
92L14
The Lennox 92L14 Inducer Motor Assembly is an part in particular Lennox furnace models. It is a small electric motor that sucks fresh air from outside through the combustion chamber creating an airflow. Regarding the matters of furnace safety and effective-going within a home this incoming air is critical for correct combustion. The motor utilizes an ordinary home current of 115V rotates at 3225 RPM and delivers air movement while drawing a current of 1.9A. It is made for 60Hz electrical usage systems only Electric Used for 60Hz electrical usages onlyl component in specific Lennox furnace models. It's a small electric motor that creates airflow by drawing in fresh air from outside and pushing it through the combustion chamber.
Manufacturer:
https://www.partshnc.com/media/catalog/product/9/2/92l14-lennox_partshnc.jpg

Specifications

  • Weight:6.63lbs
  • Measure:Unit
  • Voltage: 115V
  • RPM : 3225
  • Amperage: 1.9A
  • Frequency:60 Hz

Gas-fired furnaces use draft inducer assemblies to move combustion gases through the heat exchanger and toward the exhaust vent. The Lennox 92L14 is a genuine OEM draft inducer blower motor assembly designed for compatible heating equipment. It provides the mechanical rotation needed to drive the inducer blower and establish the airflow required for combustion-gas movement. Its operation supports the furnace's draft and venting sequence during heating.

DRAFT INDUCER MOTOR AND AIRFLOW OPERATION:
The inducer motor converts electrical energy into mechanical rotation to drive the connected blower wheel. As the wheel rotates, it moves combustion gases through the furnace's heat exchanger and venting passage. This airflow helps establish the draft required for the furnace's combustion process. The motor and blower assembly must operate according to the furnace's control sequence.

ROLE IN FURNACE COMBUSTION AND VENTING:
The draft inducer assembly helps move combustion products toward the exhaust vent before and during the heating cycle. Its operation supports the draft conditions required by the furnace. The assembly works with the furnace controls and other combustion components to support the intended venting process. Correct operation is important for the heating equipment's designed combustion and exhaust sequence.

REPLACEMENT GUIDELINES:
Replace the Lennox draft inducer blower motor assembly with the correct replacement assembly when the existing motor or assembly is confirmed faulty and cannot maintain the required combustion-gas airflow. Verify the original part number against the equipment model and manufacturer documentation before ordering to ensure the replacement assembly has the correct configuration and compatibility.

COMMON SIGNS OF FAILURE:

  • Inducer assembly fails to start when the furnace begins its heating sequence
  • Furnace experiences repeated ignition interruptions
  • Unusual humming, rattling, or grinding sounds develop during operation
  • Combustion-gas airflow becomes weak or inconsistent
  • Furnace shuts down because the inducer assembly does not operate as required

EQUIPMENT COMPATIBILITY:
The Lennox 92L14 draft inducer blower motor assembly is associated with equipment models AF90MPB075U201, AF90MPB100C4B01, and AF92MPB075C301. Before replacement, verify the furnace model and confirm that the 92L14 assembly matches the original part number, mounting arrangement, vent connections, electrical wiring, and control requirements specified in the applicable Lennox parts documentation.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Lennox
Part Number: 92L14
Product Type: Draft Inducer Blower Motor Assembly
Electrical Specifications:
Voltage: 115V
Frequency: 60Hz
Mechanical Specifications:
Rotational Speed: 3400 RPM

Write Your Own Review
You're reviewing:Lennox 92L14 Draft Inducer Blower Motor Assembly 3400 RPM 115V 60Hz
Your Rating
Customer Questions
How to install an expansion valve for refrigeration?

Thermostatic expansion valves are an integral part of your refrigeration unit. They are responsible for ensuring the right dosage of refrigerant is entering the cooling coil to ensure maximum efficiency in the air conditioning of the system.    These special expansion valves come with a temperature sensor that is mounted at the end of the evaporator coil. They incorporate signals from this sensor to maintain the required temperature of the HVAC system. The thermostatic expansion valve works like a precision device that can regulate the measurements of the liquid refrigerant that flows into the evaporator of your system. This regulation in the flow of the refrigerant is essential to prevent the reverse flow of the refrigerant into the compressor of your system.    Through this mechanism, the thermostatic expansion valve successfully separates the high and low pressure sides of the refrigeration/air conditioning system. The liquid refrigerant enters the expansion ...

What does the Lennox 92L14 draft inducer assembly do?

It drives the inducer blower to move combustion gases through the furnace and toward the exhaust vent.

Why is the draft inducer important during furnace operation?

It helps establish the airflow and draft required for the furnace's combustion and venting sequence.

Which equipment models are associated with the 92L14 assembly?

The supplied models are AF90MPB075U201, AF90MPB100C4B01, and AF92MPB075C301. Confirm the equipment model and part number against the applicable parts documentation.

What could cause the furnace to stop during its ignition sequence?

A faulty inducer motor, restricted venting, wiring problems, or other control and safety faults may interrupt the sequence. Diagnose the cause before replacing the assembly.

Can a motor with the same RPM replace the 92L14 assembly?

Not automatically. The replacement must match the complete assembly configuration, voltage, frequency, mounting, blower arrangement, and furnace requirements.
