Carrier LA01AB201 4-Blade Fan CCW 20" DIA 34° Pitch 1/2" Bore

Special Price $120.01 Regular Price $138.01
In stock
SKU
LA01AB201
The Caller LA01AB201 is a heavy-duty replacement condenser fan blade for Carrier HVAC equipment, applicable to most outdoor condenser devices. This large 4-blade propeller which is 20 inches in diameter is essentialin enhancing the cooling efficiency of your air conditioner. As the motor rotates the counter-clockwise blades at a 34-degree angle they effectively draw a large amount of air across the hot condenser coils. Due to the positional orientation of the blades and the direction of the circulation, a considerable draw of airflow across the condenser coils is realized.
Manufacturer:

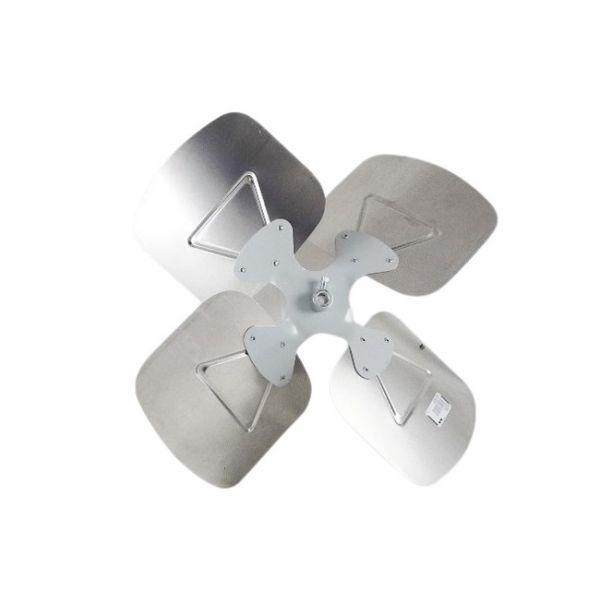

https://www.partshnc.com/media/catalog/product/l/a/la01ab201.jpg

Specifications

  • Weight: 3.94lbs
  • Fan Diameter: 20 "
  • Bore Size: 1/2 "
  • Pitch: 34°
  • Rotation: Counter Clockwise
  • Length: 19.8 "
  • Width: 19.8 "
  • Height: 4.7 "
Manufacturer Name: Carrier
Product Number: LA01AB201
OEM Part Number: LA01AB201
Product Description: 20"Dia 34Deg 1/2" Ccw 4Bld Fan
Weight:3.94lbs/1787.15g
