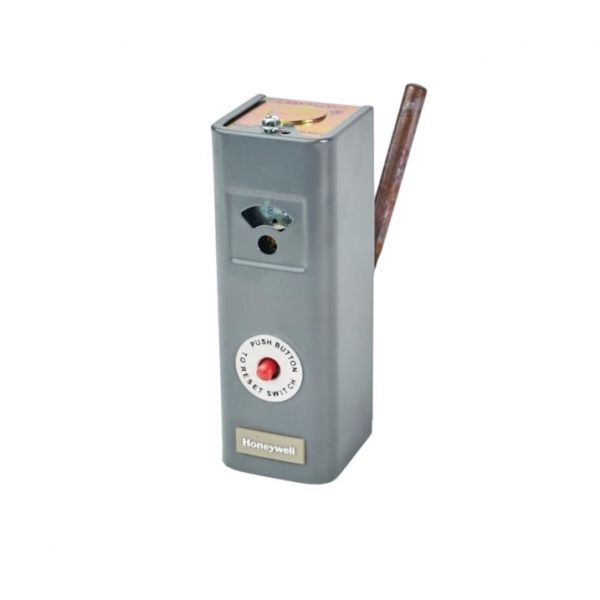

Resideo L4006E1133/B SPST M/R Immersion Aquastat Controller 100°F to 240°F
Special Price $192.93 Regular Price $221.87
In stock
SKU
L4006E1133/B
The Resideo L4006E1133/B Manual Reset SPST Immersion Aquastat Controller is a reliable high-limit temperature controller designed for HVAC applications, especially in hydronic heating. This device allows temperature control in the range of 100°F to 240°F and disconnects connections if the temperature is too high. Suitable for use in boilers, water heaters, and other devices for which temperature stability is significant. For enhanced safety, this controller has a push button that requires the user to reset the oven after a high-limit event has occurred. It can be used horizontally or vertically because of its small size and multiple types of installation..
Manufacturer:
Specifications
- Type: Aquastat Controller
- Hazmat Information: UN 1294, TOLUENE, 3, II
- Application: High Limit, Manual Reset: Dimensions: Case-- 5-5/8" high x 2" wide x 2-1/8" deep
- Max Temperature: 150°F
- Mounting: Horizontal or Vertical
- Approvals, Underwriters Laboratories Inc: UL Component Recognized- File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
- Approvals, Canadian Standards Association: Certified- File No. LR95329-1
- Temperature Range: 100°F to 240°F
- Bulb Size: 3/8" x 2-7/8" Copper
- Differential Temperature: Manual Reset
- Switching Action: SPST, contacts break on temperature rise
- Approvals, American Gas Association: AGA Certified
- Capillary Length: 1-1/2" to 3" less well: Well Spud Size: 1/2" - 14 NPT
