Carrier 50DK406815 Inducer Assembly 208-230V

Special Price $500.88 Regular Price $557.00
In stock
SKU
50DK406815

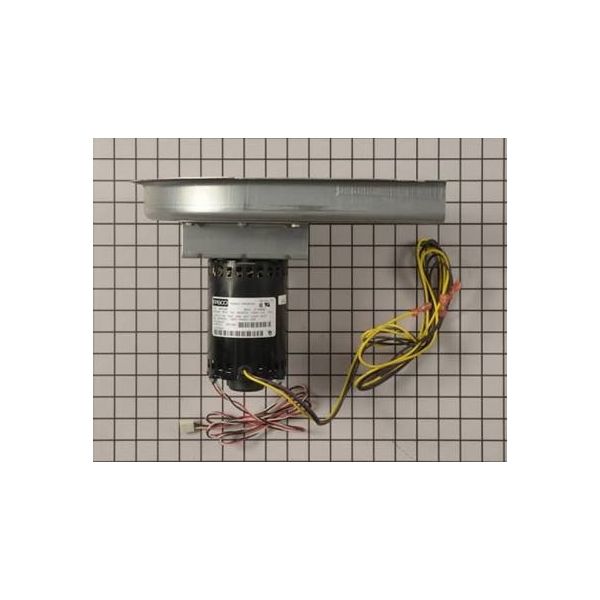

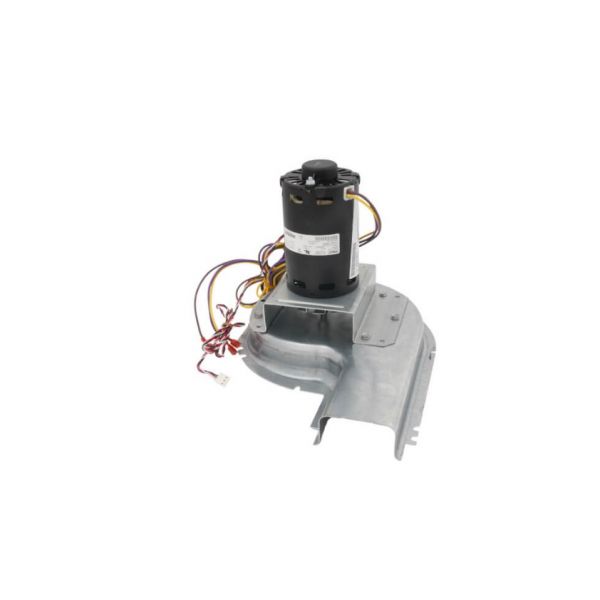

The Carrier 50DK406815 1/16 HP Inducer Motor Assembly provides efficient combustion gas exhaust for HVAC system ventilation. The motor operates at 208/230V with 3450 RPM speed and 1/16 horsepower to deliver reliable performance in heating units and furnaces. This assembly enhances safety and efficiency by controlling airflow properly to avoid system overheating along with associated malfunctions. The 48A current rating allows for smooth operation and reduces both energy usage and extends product durability. This demonstrates sturdy construction which reduces service requirements and provides both smooth running performance with minimal noise output.
Manufacturer:
https://www.partshnc.com/media/catalog/product/5/0/50dk406815.jpg

Specifications

  • Type: Blower Motor
  • Horse Power: 1/16HP
  • Speed: 3450 RPM
  • Voltage: 208/230V
  • Current: 48A
Manufacturer Name: Carrier
Product Number: 50DK406815
OEM Part Number: 50DK406815
Product Description: Inducer Motor Assembly
Weight:9.13lbs/4141.29g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Write Your Own Review
You're reviewing:Carrier 50DK406815 Inducer Assembly 208-230V
Your Rating
Customer Questions
What maintenance is required for the Carrier 50DK406815 Inducer Assembly?

Inspect the inducer housing for rust buildup and ensure the vent pathway remains unobstructed for proper exhaust flow. Check motor mounting points for tightness and check gasket integrity to prevent flue gas leakage. Listen during operation for abnormal pitch changes that may indicate early bearing damage or airflow restriction.

What are common issues with the Carrier 50DK406815 Inducer Assembly?

  • Weak draft causing ignition delays or shutdowns.
  • Motor overheating under restricted airflow conditions.
  • Excess vibration from worn impeller or imbalance.
  • Failure to start due to capacitor or winding faults.
  • Flue blockage triggering safety lockout.

Installation Steps

Step 1: Switch off electrical supply at breaker and confirm system inactive.

Step 2: Remove service panel and disconnect inducer wiring and venting label positions.

Step 3: Unfasten and remove existing inducer from mounting bracket.

Step 4: Position new inducer assembly and secure mounting screws firmly.

Step 5: Reconnect wiring and vent connections with correct routing.

Step 6: Restore power and observe startup operation and airflow stability.
