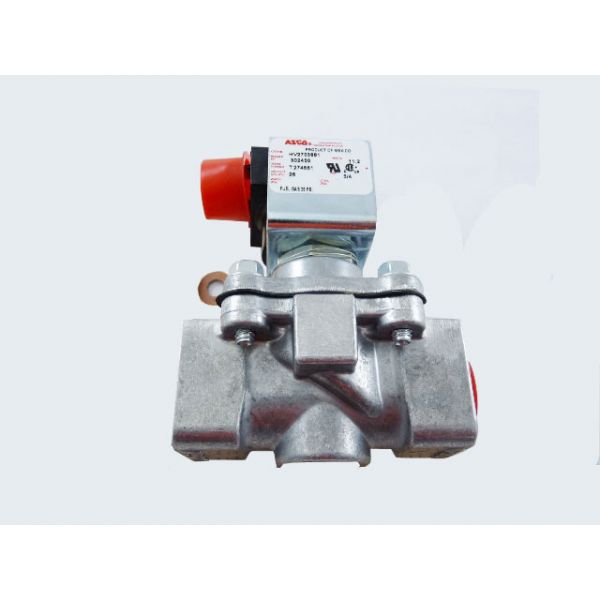

ASCO HV2723881 12Vdc 3/4 Inch N/C Solenoid Valve

Special Price $937.69 Regular Price $1,040.83
Out of stock
SKU
HV2723881

The ASCO HV2723881 is a 12VDC, 3/4 inch normally closed (N/C) solenoid valve. This electromechanical device uses a coil to regulate the flow of liquids. Upon coil energization, a valve opens, permitting fluid to flow through. On the other hand, the valve closes and the fluid flow is stopped when the coil is de-energized. Because of its N/C design, the valve stays closed in the event of a power interruption, guaranteeing safety.HVAC equipment frequently uses the ASCO HV2723881, thanks to its dependable functioning, sturdy design, quick response time, and low power consumption. Boilers, chillers, and air handling systems are a few of these.The valve controls the movement of fluids, such as steam and water, within these systems.

Manufacturer:
https://www.partshnc.com/media/catalog/product/h/v/hv2723881_asco_partshnc.png

PRODUCT OVERVIEW:
Functioning as an electrically operated fluid-control component within system piping circuits, the ASCO HV2723881 N/C Solenoid Valve regulates fluid passage by changing its internal position upon receiving electrical input. Operating on a 12 VDC electrical supply, this normally closed valve blocks fluid movement across its 3/4" ports while in a de-energized state. When electrical power is supplied to the unit, the valve opens to allow fluid passage across connected line segments during equipment operation.

ELECTROMAGNETIC STATE SWITCHING:
The primary function of this normally closed solenoid valve is to convert 12Vdc electrical input into mechanical movement that opens an internal fluid passage. Applying a 12Vdc signal generates an electromagnetic force that shifts the internal valve mechanism from a closed state to an open state, allowing fluid to travel between the 3/4 inch ports. Removing the 12Vdc signal ends the electromagnetic force, causing the internal mechanism to return to its closed position and stop fluid flow through the valve body.

FLUID CIRCUIT CONTROL:
Fluid movement through the connected circuit is governed by the valve's internal sealing mechanism, which controls passage between the inlet and outlet. In the closed state, the sealing element restricts flow through the valve, while actuation moves the element to permit fluid passage. This arrangement provides a defined control point within the circuit, allowing the valve to interrupt or allow fluid movement according to the equipment's operating sequence.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when the valve fails to open or close as commanded, permits unintended fluid passage, develops leakage, or shows physical damage to the valve body or connection points. When selecting the ASCO HV2723881, verify the normally closed configuration, 3/4" connection size, 12VDC electrical requirement, and applicable equipment specifications against the manufacturer's documentation.

Common Failure Symptoms:

  • Inability of fluid to pass through the line when power is applied.
  • Continuous fluid flow past the internal valve seat while the unit is de-energized.
  • Visible fluid leakage on the valve body exterior.
  • Failure of the valve to shift positions during control cycle transitions.

EQUIPMENT COMPATIBILITY:
The ASCO HV2723881 N/C Solenoid Valve 3/4" 12VDC applies to HVAC and refrigeration equipment that uses an electrically controlled, normally closed solenoid valve with the specified connection and electrical requirements. This OEM part should be matched to the applicable equipment by verifying the manufacturer, part number, valve configuration, connection size, voltage, and system requirements against the equipment documentation.

Technical Specifications:
Product identification:
Brand: ASCO
Part Number: HV2723881
Product Type: Solenoid Valve
Physical specifications:
Valve Configuration: Normally Closed (N/C)
Connection Size: 3/4"
Electrical specifications:
Voltage: 12 VDC

Write Your Own Review
You're reviewing:ASCO HV2723881 12Vdc 3/4 Inch N/C Solenoid Valve
Your Rating
Customer Questions
What maintenance is required for the ASCO HV2723881 Solenoid Valve?

Inspect the valve body, coil, and electrical connections regularly for signs of corrosion, leaks, or physical damage. Verify smooth valve actuation and ensure the flow path remains free of debris that could restrict operation. Check fittings and seals for proper sealing performance. Always isolate pressure and disconnect electrical power before servicing the valve.

What are common issues with the ASCO HV2723881 Solenoid Valve?

  • Coil failure causing valve not to actuate.
  • Leakage due to worn seals or diaphragm damage.
  • Sticking or slow response from debris or contamination.
  • Incorrect operation from low or unstable supply.

What type of valve is the ASCO HV2723881?

The ASCO HV2723881 is a normally closed (N/C) solenoid valve that controls fluid passage through electrical actuation.

What does N/C mean on the ASCO HV2723881?

N/C means normally closed, indicating that the valve remains closed when de-energized and opens the internal passage when electrical power is applied.

How does the ASCO HV2723881 control fluid passage?

The ASCO HV2723881 uses electrical actuation to move its internal valve mechanism, allowing the flow passage to open or close according to the equipment control signal.

Why is the 3/4-inch port size important when selecting a replacement valve?

The 3/4-inch designation determines the physical pipe connection size and volumetric flow capacity needed to match your existing fluid system layout.

Installation Steps

Step 1: Turn off power supply and depressurize the system completely.

Step 2: Verify flow direction marked on the valve body.

Step 3: Connect the solenoid valve to the pipeline using proper fittings and sealant.

Step 4: Tighten securely without over-torquing to avoid damage.

Step 5: Wire the coil according to specifications.

Step 6: Restore pressure gradually and check for leaks.

Step 7: Turn on power and test operation safely.
