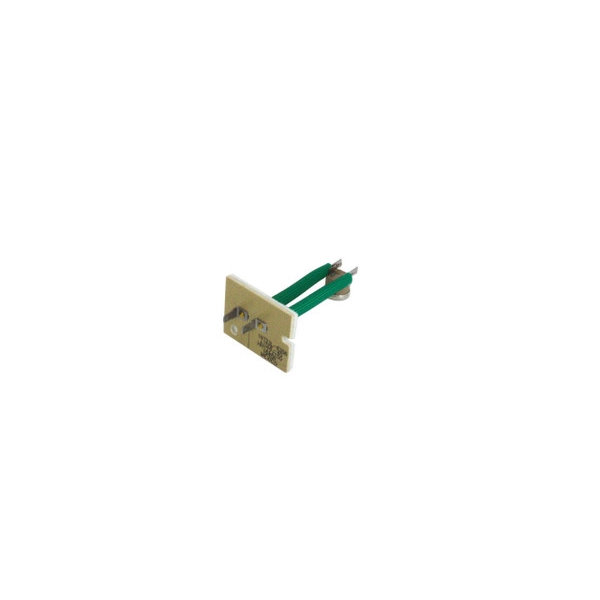

Monitors temperature conditions within applicable heating equipment and provides a defined switching point for the associated control circuit. Designed for temperature-sensitive control, the Carrier HH12ZZ150 Limit Switch L150-40F responds to the specified thermal condition through a change in its electrical contact state. This allows the equipment control system to incorporate temperature conditions into its operating sequence without introducing unrelated characteristics.
Temperature-Sensitive Switching:
Temperature-sensitive switching enables a limit switch to change its electrical contact state when the monitored condition reaches its designated threshold. This response creates a defined transition within the control circuit based on the surrounding thermal condition. The switching mechanism provides a direct connection between temperature and electrical circuit status. Such control is used where thermal conditions need to be incorporated into equipment operation.
Equipment Protection:
Within heating equipment, a limit switch is incorporated into the control circuit as a temperature-responsive control point. Its contact state can influence the associated operating sequence when the monitored condition reaches the designated switching threshold. This allows temperature conditions to interact with other control components governing equipment operation. The switch therefore forms part of the equipment's overall temperature-control sequence.
Replacement Guidelines:
Replacement should be considered when the installed HH12ZZ150 limit switch L150 no longer provides the expected temperature-based switching response or when its identification does not correspond with the required equipment specification. The applicable limit designation and temperature characteristic should be matched with the equipment documentation to maintain the intended control sequence.
Common Signs of Wear:
- Inconsistent contact switching at the designated temperature condition.
- Irregular response within the associated control circuit.
- Changes in switching behavior during equipment operation.
- Visible deterioration of the switch that may affect its electrical response.
Equipment Compatibility:
The Carrier HH12ZZ150 L150-40F Limit Switch must match the limit-switch configuration required by the equipment. Confirm the existing limit-switch configuration, temperature rating, and part number before purchase to ensure compatibility with the intended system.
Technical Specifications:
Brand: Carrier
SKU / Part Number: HH12ZZ150
Component Type: Limit Switch
Limit Designation: L150
Temperature Designation: 40°F
