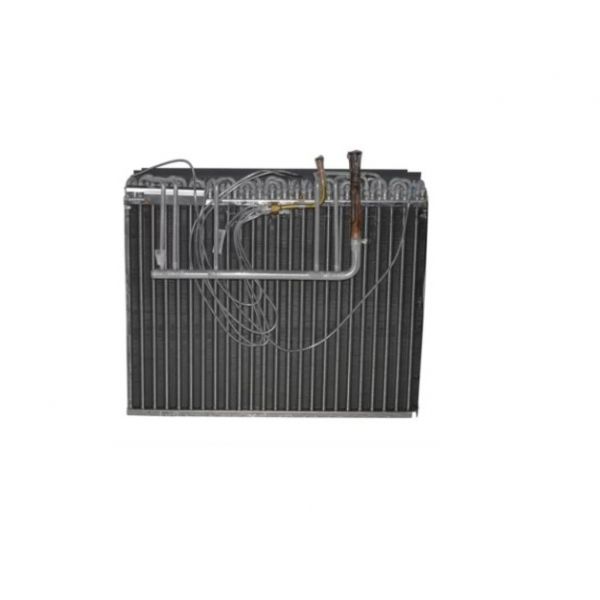

Carrier 342796-75103 Air Handler Evaporator Coil

Special Price $832.98 Regular Price $924.60
In stock
SKU
342796-75103
Carrier 342796-75103 Evaporator Coil for Air Handlers is an essential element of HVAC systems because it is responsible for cooling air as it prepares to circulate throughout a building. Made of a robust and lightweight metal, aluminium, its main purpose is to dissipate heat from indoor air so that the refrigerant inside cools the surrounding air properly. Intended to dovetail with a number of air handler units to fit easily into standard HVAC systems, it is capable of delivering the maximum performance and energy-savings due to its design. It is because such a coil allows the release of heat in order to regulate the internal temperature thus increasing the efficiency as well as the durability of this heating, ventilating and air conditioning system.
https://www.partshnc.com/media/catalog/product/3/4/342796-75103.jpg

Specifications

  • Length: 25 "
  • Width: 24 "
  • Height: 8 "
  • Weight: 17lbs
  • Material: Aluminum
  • Coil Type: Evaporator
Manufacturer Name: Carrier
Product Number: 342796-75103
OEM Part Number: 342796-75103
Product Description: Evap Coil For Air Handler
Weight:17lbs/7711.06g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Write Your Own Review
You're reviewing:Carrier 342796-75103 Air Handler Evaporator Coil
Your Rating
Customer Questions
What maintenance is required for the Carrier 342796-75103 Air Handler Evaporator Coil?

Regularly inspect the coil for dust, debris, or corrosion. Clean gently using a coil brush or vacuum to maintain airflow and heat exchange efficiency. Ensure all connections and mounting are secure. Always power down the system before servicing to prevent electrical or mechanical hazards.

What are common issues with the Carrier 342796-75103 Air Handler Evaporator Coil?

  • Reduced cooling efficiency due to dirt buildup.
  • Corrosion or rust on coil surfaces.
  • Bent fins restricting airflow.
  • Leaks at coil connections affecting refrigerant flow.

Installation Steps

Step1: Turn off power to the HVAC system and close the refrigerant valves to prevent injury.

Step2: Remove the access panels and carefully extract the existing evaporator coil.

Step3: Inspect and clean the coil housing and drain pan.

Step4: Position the coil into the air handler, aligning refrigerant and drain connections.

Step5: Secure the coil with mounting brackets and tighten fittings.

Step6: Reconnect refrigerant lines and electrical connections following manufacturer guidelines.

Step7: Restore power, evacuate and charge the system, and test for proper airflow and operation.
