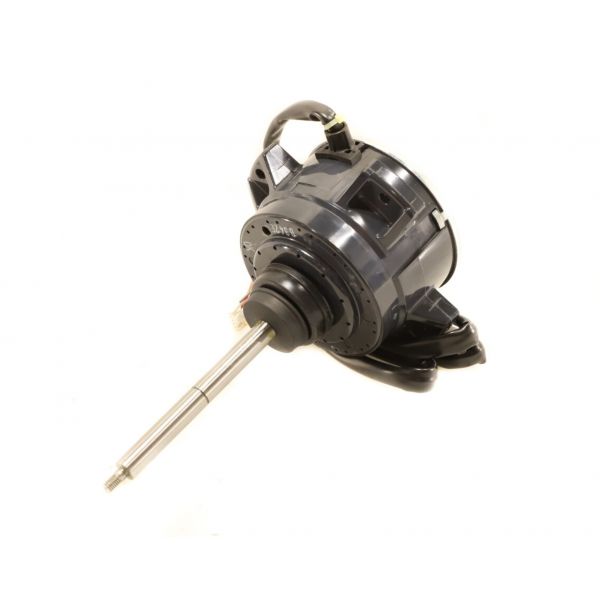

Mitsubishi Electric E22E34301 8Pole Motor DC280V/77W

Special Price $187.94 Regular Price $216.13
In stock
SKU
E22E34301
The Mitsubishi Electric E22E34301 8-Pole Motor DC280V/77W is designed for HVAC use. This is an 8-pole motor with a rating of 280V and drawing 77 watts. This is achieved by converting electrical to mechanical energy which is vital in turn to activate some of the HVAC systems such as the fans and compressor. The motor’s detailed design further reduces power losses, enhancing the total system efficiency and reducing operating costs. This is because it is compact and light can easily be incorporated into many HVAC systems, thus affording designers and maintenance personnel some flexibility.
https://www.partshnc.com/media/catalog/product/e/2/e22e34301-mitsubishi-electric_partshnc.jpg

Specifications

  • Type: Motor
  • Voltage: 280V
  • Kili Watts: 77W
  • Pole: 8
  • Weight: 5.12 Lbs
Serves as an electric motor that converts electrical input into rotational movement within applicable HVAC equipment. The Mitsubishi Electric E22E34301 8-Pole DC Motor drives a connected motor-operated assembly and is used in documented condenser fan applications to support air movement. Its 8-pole construction describes the motor configuration, while 77W states the power rating and specifies the direct-current operating voltage. The component forms part of the equipment's air-moving arrangement through its mechanical rotational output.

Electromagnetic Rotation:
Produces rotational force through the interaction of the motor's electrical and magnetic sections. When electrical energy is supplied, the internal electromagnetic arrangement creates the conditions required for the rotating section to move. The pole configuration contributes to the motor's defined electromagnetic operating characteristics.

Mechanical Drive Output:
Transfers rotational movement from the motor shaft to an associated mechanism. The rotating shaft provides the mechanical output used by the connected drive arrangement. This framework focuses on the movement delivered beyond the motor rather than the internal process that produces rotation.

Replacement Guidelines:
Replacement requires matching the motor's voltage, power rating, pole configuration, shaft arrangement, mounting interface, electrical connection, rotation requirements, and applicable equipment specifications. The Mitsubishi Electric E22E34301 8-Pole Motor 77W 280V replacement should also suit the existing drive assembly and connected electrical components.

Common Failure Symptoms:

  • The motor does not rotate when energized.
  • Rotational operation becomes intermittent.
  • Unusual mechanical noise occurs during operation.
  • The connected mechanism does not move as expected.
  • Motor operation becomes inconsistent.

Equipment Compatibility:
The Mitsubishi Electric E22E34301 8-Pole DC Motor is intended for equipment applications specifically documented for this component. Verify the equipment model number, existing motor identification, and manufacturer's parts documentation before purchase.

Technical Specifications:
Brand: Mitsubishi Electric
Part Number: E22E34301
Product Type: DC Motor
No of Poles: 8-Pole
Power: 77W
Voltage: 280V

Write Your Own Review
You're reviewing:Mitsubishi Electric E22E34301 8Pole Motor DC280V/77W
Your Rating
Customer Questions
What maintenance is required for the Mitsubishi Electric E22E34301 Motor?

Regularly inspect the motor for dust, dirt, and loose connections. Lubricate bearings according to manufacturer guidelines and ensure proper ventilation to prevent overheating. Check for signs of wear or unusual noise, and replace worn components promptly to maintain safe, efficient operation.

What are common issues with the Mitsubishi Electric E22E34301 Motor?

  • Overheating under continuous load.
  • Worn brushes causing sparking or poor performance.
  • Bearing noise or failure.
  • Intermittent operation due to loose wiring or connections.

How does the E22E34301 motor convert electrical input into mechanical output?

The E22E34301 uses its internal electromagnetic arrangement to produce rotational mechanical movement at the shaft.

How does the motor's pole arrangement relate to its operating design?

The pole arrangement forms part of the motor's electromagnetic construction and influences its defined operating characteristics.

What type of movement does the E22E34301 provide to a connected mechanism?

The motor provides rotary mechanical movement that can be transferred through its shaft to the connected mechanism.

What happens when the E22E34301 shaft transfers rotational movement?

The shaft transfers rotational movement to the connected mechanical arrangement for the function assigned to that equipment.

How can the E22E34301 motor be identified for the intended application?

The E22E34301 designation identifies the specific motor referenced for the associated equipment and drive function.

Installation Steps

Step1: Turn off power to the unit and disconnect from the mains.

Step2: Remove the access panel and detach the old motor from its mount.

Step3: Disconnect wiring and note terminal positions.

Step4: Mount the new motor, reconnect wiring to matching terminals, and secure all fasteners.

Step5: Restore power and test for proper motor operation.
