Mitsubishi Electric E22853900 Compressor Tnb220Fmcht

Special Price $900.04 Regular Price $999.05
In stock
SKU
E22853900

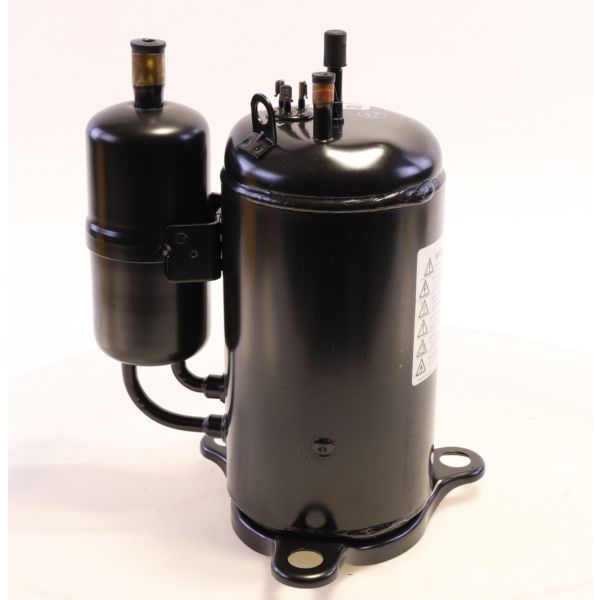

The Mitsubishi Electric E22853900 Compressor is a robust product designed for HVAC systems, especially for R410A refrigerants. This compressor supplies energy to air conditioning and heat pump systems to circulate refrigerant throughout the system to complete the heat exchange processes required for heating or cooling rooms. It functions in a three-phase mode can handle a voltage of 53-200V and can perform well under various power conditions. It is designed to have the lowest operating costs without compromising the quality of comfort provided for the indoor environment.
https://www.partshnc.com/media/catalog/product/e/2/e22853900.jpg

Specifications

  • Voltage: 53-200V
  • Phase: 3
  • Refrigerant Type: R410A
  • Weight: 31.67lbs
  • Type: Compressor

Compressors play an essential role in air-conditioning and refrigeration systems by increasing refrigerant vapor pressure and maintaining circulation through the cooling circuit. The Mitsubishi Electric E22853900 is a compressor identified with the Tnb220Fmcht model designation. It compresses returning refrigerant vapor to a higher pressure before moving it through the refrigeration circuit.

COMPRESSOR OPERATION AND REFRIGERANT COMPRESSION:
During operation, low-pressure refrigerant vapor enters the compressor and undergoes compression to increase its pressure. The compressed vapor then moves toward the condenser, where heat is released as part of the refrigeration cycle. This pressure increase supports refrigerant movement through the different stages of the cooling system. The Mitsubishi Electric E22853900 performs this compression function to support continuous refrigeration operation.

REFRIGERATION CYCLE AND COOLING PERFORMANCE:
The compressor supports refrigerant movement between the evaporator and condenser. Refrigerant absorbs heat from the conditioned space at the evaporator and releases that heat through the condenser. The Mitsubishi Electric E22853900 supports this continuous heat-transfer process by maintaining refrigerant compression and circulation.

REPLACEMENT GUIDELINES:
Replacement may be necessary when the E22853900 develops a confirmed mechanical fault affecting compression or an electrical fault preventing normal operation. Before ordering, compare the existing compressor part number and Tnb220Fmcht model designation against the equipment documentation. Also verify the required refrigerant, electrical specifications, mounting arrangement, and refrigerant connections to confirm a suitable replacement.

COMMON FAILURE SYMPTOMS:

  • Compressor fails to start or operate
  • Cooling performance decreases
  • Refrigerant circulation becomes inadequate
  • Abnormal noise develops during compressor operation
  • Excessive vibration occurs during operation

EQUIPMENT COMPATIBILITY:
The Mitsubishi Electric E22853900 is a compressor identified with the Tnb220Fmcht model designation. Verify both identifiers against the equipment model and serial number using the applicable manufacturer parts documentation. Confirm the required refrigerant, electrical configuration, compressor capacity, mounting arrangement, and refrigerant connections before ordering.

TECHNICAL SPECIFICATIONS:
Part Identification:
Brand: Mitsubishi Electric
Part Number: E22853900
Product Type: Compressor

Write Your Own Review
You're reviewing:Mitsubishi Electric E22853900 Compressor Tnb220Fmcht
Your Rating
Customer Questions
What maintenance is required for the Mitsubishi Electric E22853900 Compressor?

Regularly check for oil leaks, clean the compressor exterior, and ensure proper electrical connections. Monitor vibration and noise levels during operation. Routine maintenance ensures efficient cooling performance and prevents overheating or mechanical stress.

What are common issues with the Mitsubishi Electric E22853900 Compressor?

  • Compressor fails to start.
  • Unusual vibration or noise.
  • Overheating or electrical faults.
  • Refrigerant leaks.
  • Reduced cooling efficiency.

What is the Mitsubishi Electric E22853900 compressor used for?

The Mitsubishi Electric E22853900 is a compressor designed to support refrigerant compression and circulation in compatible cooling equipment. It performs an essential function in the refrigeration cycle.

What does the Tnb220Fmcht designation identify?

Tnb220Fmcht is the model designation associated with the Mitsubishi Electric E22853900 compressor. Use both identifiers when checking replacement requirements against equipment documentation.

Is the Mitsubishi Electric E22853900 compatible with all Mitsubishi Electric systems?

Not necessarily. Compatibility depends on the equipment model, compressor requirements, refrigerant, electrical configuration, and physical connections. Verify the part number before ordering.

What specifications should I check before replacing the E22853900 compressor?

Check the required refrigerant, voltage, phase, frequency, compressor capacity, mounting arrangement, and refrigerant connections. Match these details with the original equipment documentation.

What are the signs that the Mitsubishi Electric E22853900 compressor may need replacement?

Failure to start, reduced cooling performance, repeated electrical protection trips, unusual noise, or excessive vibration may indicate a compressor problem. Other system faults can cause similar symptoms, so proper diagnosis is important.

Installation Steps

Step 1: Turn off all power and isolate refrigerant lines before starting.

Step 2: Recover refrigerant from the system safely per regulations.

Step 3: Remove the old compressor and clean line-set connections.

Step 4: Position the new compressor and connect the refrigerant lines.

Step 5: Connect electrical terminals per wiring diagram.

Step 6: Evacuate, charge with correct refrigerant, restore power, and test operation.
