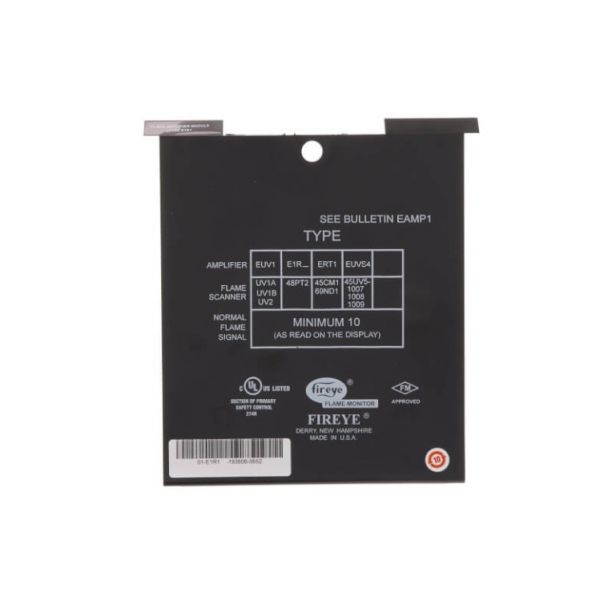

The Fireye E1R1 Infra-Red Amplifier Module is used to monitor and amplify infrared signals of a flame to ensure accurate flame detection in HVAC systems. The advanced sensing technology detects the presence of flame in burners, boilers and other combustion equipment while also providing a reliable and accurate feedback for operational safety and efficiency. Infrared flame scanners are compatible with this amplifier and it is suitable for applications with strict flame monitoring requirements. The benefits of its high sensitivity and robust performance are increased safety better combustion control and reduced downtime.
E1R1 Fireye Flame Amplifier is an infrared (IR) flame amplifier module designed for use with the Fireye Flame-Monitor system. It works in conjunction with infrared flame scanners to ensure safe and reliable burner operation. It takes the faint electrical signals generated by IR flame scanners and boosts them to a level that the flame monitor can clearly interpret. This amplified signal allows the flame monitor to reliably determine the presence or absence of a flame, even in challenging environments with variable lighting or potential interference. If the flame goes out, the amplified signal drops, triggering the Flame Monitor to immediately shut down the burner, preventing potentially hazardous situations like fuel leaks or explosions. Boosts faint electrical signals from IR flame scanners to easily interpretable levels for the Flame-Monitor system. Enables reliable detection of flame in challenging environments with variable lighting or potential interference. Built-in feature to differentiate between actual flame signals and oil mist or fog, improving accuracy in specific applications.
Key features:
Compatible with IR scanners: Works specifically with Fireye AutoCheck infrared flame scanners.
Oil fog rejection: Built-in oil fog rejection feature helps to differentiate between actual flame signals and signals caused by oil mist or fog, enhancing reliability in certain applications.
Installation and maintenance: Designed for simple installation and minimal upkeep. It plugs directly into the Flame-Monitor chassis.
Durability: Constructed with high-quality components for reliable performance in industrial settings.
Signs of a Faulty Fireye E1R1 Flame Amplifier
The Fireye E1R1 plays a crucial role in burner safety by amplifying the signal from infrared flame scanners. Recognizing potential issues early on helps ensure safety and system performance. Here are some indicators to watch for:
Performance Clues:
Frequent Burner Shutdowns: If your burner unexpectedly shuts down often, even without actual flame loss, it could be due to the E1R1 misinterpreting or inadequately amplifying signals.
Weak Flame Signal: An consistently low flame signal displayed on the Flame-Monitor might suggest a weakened signal from the E1R1, requiring further investigation.
False Flame Loss Alarms: Frequent alarms triggering even when the flame is burning could indicate issues with the E1R1's amplification or processing of signals.
Visual Inspection:
Physical Damage: Look for any cracks, burns, or loose connections on the E1R1. Such damage can affect its functionality and signal processing.
Dust Buildup: Excessive dust or debris inside the E1R1 can interfere with its internal components and sensors. Regular cleaning is key for optimal performance.
Remember:
Safety First: Never attempt to diagnose or repair the E1R1 yourself unless you are a qualified technician with experience in burner management systems. Improper handling can create safety hazards.
Seek Professional Help: If you suspect an issue, contact a qualified technician or the manufacturer for proper diagnosis and repair. Do not attempt unauthorized repairs.
Consult the Manual: The Fireye E1R1 manual provides detailed troubleshooting information and specific error code explanations. Refer to it for further guidance.
By prioritizing safety and following these tips, you can effectively identify potential problems with your Fireye E1R1 and ensure the safe and efficient operation of your burner system.
Choose the best HVAC equipment parts and supplies from PartsHnC!
What should I do if I suspect a problem with the E1R1?
Safety first! Never attempt to diagnose or repair the E1R1 yourself unless you're a qualified technician. Contact a professional for a proper diagnosis and repair.
How can I maintain the E1R1 Fireye Flame Amplifier?
Regular cleaning is crucial. Follow the manufacturer's instructions for cleaning the E1R1 and the IR scanner to prevent dust buildup and ensure optimal performance.
