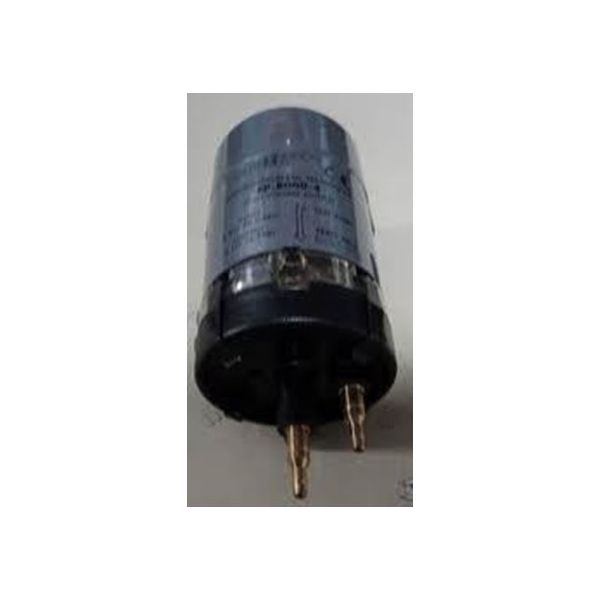

Johnson Controls EP-8000-4 Electro-Pneumatic Transducer High Volume 4-20mA

Be the first to review this product
Special Price $298.20 Regular Price $331.00
In stock
SKU
EP-8000-4
The Johnson Controls EP-8000-4 Electro-Pneumatic Transducer is a multipurpose device for accurate control of air pressure in HVAC systems and Nonetheless, this compact device consumes only 4.5 VA of electricity. But unlike the EP-8000-2 type, it receives instructions from a building automation system using a 4-20 mA current signal instead of the 0-10 VDC voltage signal. The EP-8000-4 then amplifies this signal into a proportional pneumatic output of 3-15 PSI or 21-105 PSI, selectable by the user. In layman’s terms, it converts electrical signals into changes in air pressure in heating and cooling equipment.
Add to Wish List
HVAC Controls & Electrical, Control & Sensing Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/e/p/ep-8000-4.jpg

Specifications

  • Power Consumption: 4.5 VA
  • Type: Electro-Pneumatic Transducer
  • Voltage: 24 VAC
  • Input Signal: 4-20 mA
  • Output Signal: 3-15PSI, 21-105 PSI
  • Weight: 0.48 Lbs
Manufacturer Name: Johnson Controls
Product Number: EP-8000-4
OEM Part Number: EP-8000-4
Product Description: E-P Transducer,4-20Ma,Hi Volum
Weight:0.48lbs/217.72g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Johnson Controls EP-8000-4 Electro-Pneumatic Transducer High Volume 4-20mA
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Johnson Controls EP-8000-4 Electro-Pneumatic Transducer High Volume?

Inspect air supply lines regularly for leaks, moisture, or contamination that can affect signal accuracy. Ensure electrical connections for the input are secure and corrosion-free. Periodically check calibration to maintain accurate pressure output. Keep the unit clean and dry to avoid performance drift.

What are common issues with the Johnson Controls EP-8000-4 Electro-Pneumatic Transducer High Volume?

  • Inaccurate pressure output due to calibration drift.
  • Air leaks causing unstable or weak response.
  • Faulty signal transmission or wiring issues.
  • Moisture contamination affecting internal components.
  • Delayed response or inconsistent pneumatic output.

Installation Steps

Step 1: Switch off electrical and air supply, ensure system is fully isolated before starting.

Step 2: Mount transducer vertically on a stable surface or actuator bracket for proper operation.

Step 3: Connect air supply line using correct tubing size, keep air dry and clean to avoid internal damage.

Step 4: Wire input terminals securely as per control signal requirements.

Step 5: Restore power and air, then calibrate zero and span, check pressure output matches control signal.
