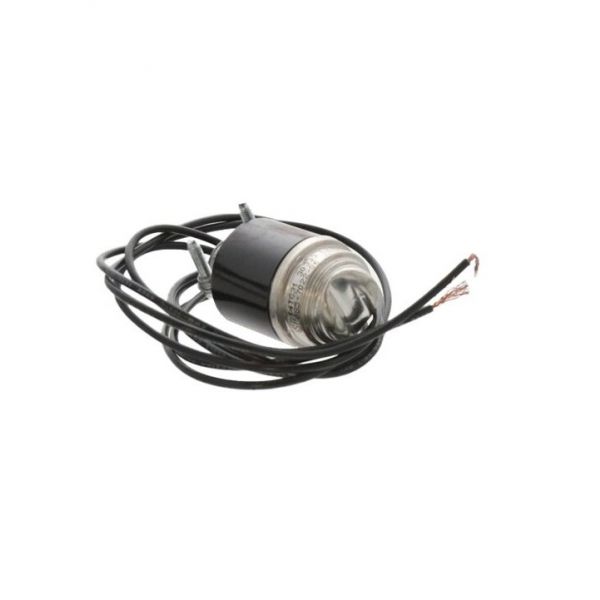

Copeland 998-7022-02 1/2" Discharge Line Thermostat Kit

Special Price $163.03 Regular Price $187.48
In stock
SKU
998-7022-02
The Copeland 998-7022-02 1/2" Discharge Line Thermostat Kit is a specialized component for HVAC systems that controls and monitors the discharge temperature of compressors. Additionally, it contains all the parts necessary to keep temperatures in the discharge line steady. Functionally speaking, this thermostat kit senses the temperature of the refrigerant gas when it leaves the compressor. If the temperature increases beyond a certain point, the thermostat triggers various events like triggering cooling mechanisms or regulating compressor operation in an effort to avoid overheating. Simply put, this prevents damage from excessive heat levels on compressors and keeps normal operations running smoothly at all times. Therefore, such benefits as enhanced reliability of operations, elimination costs incurred due prolongation compressor life by transition line cooling cycles optimization energy conservations via reduced maintenance requirements are achieved.
https://www.partshnc.com/media/catalog/product/9/9/998-7022-02.jpg

Specifications

  • Weight: 0.32lbs
  • Size: 1/2" Thermostat
  • Type: Thermostat Kit

Product Overview:
Protects compressor systems against excessive discharge temperatures through temperature-sensitive switching. The Copeland 998-7022-02 Discharge Line Thermostat Kit is designed for installation on a 1/2-inch compressor discharge line. Conduit connector, and thermostat component to help interrupt compressor operation when the discharge temperature reaches the specified limit.

High-Temperature Protection:
Uses a temperature-sensitive switching mechanism to interrupt the connected control circuit when the discharge temperature reaches approximately 220°F. The thermostat resets when the temperature decreases to approximately 170°F.

Compressor Safety Control:
Helps protect compatible compressor systems by responding to abnormal discharge temperature conditions. Its switching action supports compressor shutdown when excessive heat is detected.

Replacement Guidelines:
Replacing the Copeland 998-7022-02 Discharge Line Thermostat Kit should be considered when testing confirms that the thermostat does not operate at its specified temperature settings or has damaged electrical connections. A qualified refrigeration technician should inspect the discharge line, thermostat mounting, wiring, conduit connection, and compressor control circuit before replacement.

Common Failure Symptoms:

  • Compressor shuts down unexpectedly during operation.
  • Discharge temperature protection does not respond correctly.
  • Thermostat switching becomes intermittent.
  • Electrical connections become loose or damaged.
  • Compressor experiences repeated high-temperature shutdowns.

Equipment Compatibility:
The Copeland 998-7022-02 is designed for compatible Copeland compressor applications requiring a 1/2-inch discharge line thermostat with a 36-inch lead and conduit connector. Copeland documentation identifies it for selected ZP-series compressor applications. It should not be substituted for other discharge thermostat kits with different line diameters, temperature settings, or alarm-contact arrangements. Verify the compressor model and original kit number before ordering.

Technical Specifications:
Brand: Copeland
Part Number: 998-7022-02
Product Type: Discharge Line Thermostat Kit

Write Your Own Review
You're reviewing:Copeland 998-7022-02 1/2" Discharge Line Thermostat Kit
Your Rating
Customer Questions
What maintenance is required for the Copeland 998-7022-02 Discharge Line Thermostat Kit?

Inspect the thermostat kit regularly for loose wiring, damaged insulation, or poor contact with the discharge line surface. Verify secure mounting and accurate temperature response during compressor operation. Keep the sensor area clean and check for overheating conditions to maintain proper compressor discharge temperature protection.

What are common issues with the Copeland 998-7022-02 Discharge Line Thermostat Kit?

  • Thermostat fails to trigger compressor shutdown due to faulty sensor readings.
  • Intermittent temperature control caused by loose or damaged wiring connections.
  • Incorrect cycling from misaligned discharge line sensing position.
  • Reduced system efficiency from erratic thermostat signal output.

What is the Copeland 998-7022-02 Discharge Line Thermostat Kit used for?

It monitors compressor discharge line temperature and helps protect compatible compressor systems against excessive heat.

What discharge line size does the 998-7022-02 support?

It is designed for installation on a 1/2-inch compressor discharge line.

At what temperature does the Copeland 998-7022-02 thermostat open?

The thermostat opens at approximately 220°F and closes again as the temperature decreases to approximately 170°F.

What happens when the discharge temperature exceeds the thermostat limit?

The thermostat opens the connected control circuit to help stop compressor operation and protect the system from excessive heat.

Which thermostat is included in the Copeland 998-7022-02 kit?

It uses the Copeland 085-7022-06 thermostat, designed for discharge temperature protection in compatible compressor applications.

Installation Steps

Step 1: Turn off power and recover refrigerant if the system is open to service conditions.

Step 2: Clean and locate a suitable mounting point on the discharge line near the compressor outlet.

Step 3: Attach the thermostat sensor firmly to the discharge line using provided clamp or strap.

Step 4: Route and secure wiring away from hot surfaces and moving components.

Step 5: Connect leads to the control circuit per wiring diagram, ensuring tight and correct terminals.

Step 6: Restore power and verify proper temperature sensing and compressor protection operation.
