main product photo

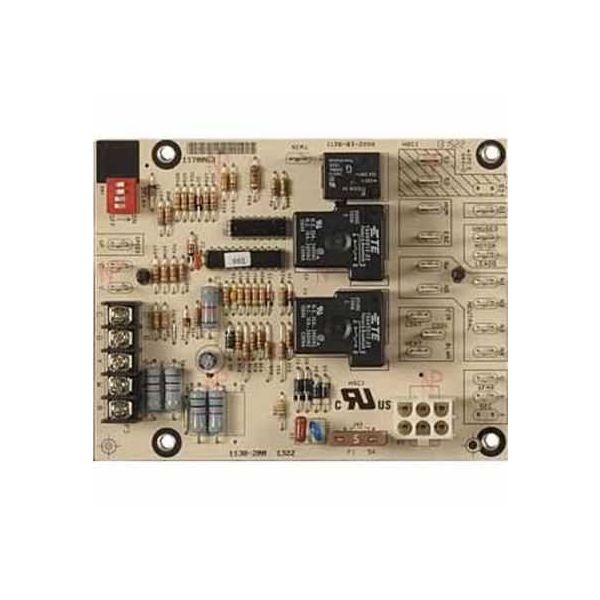

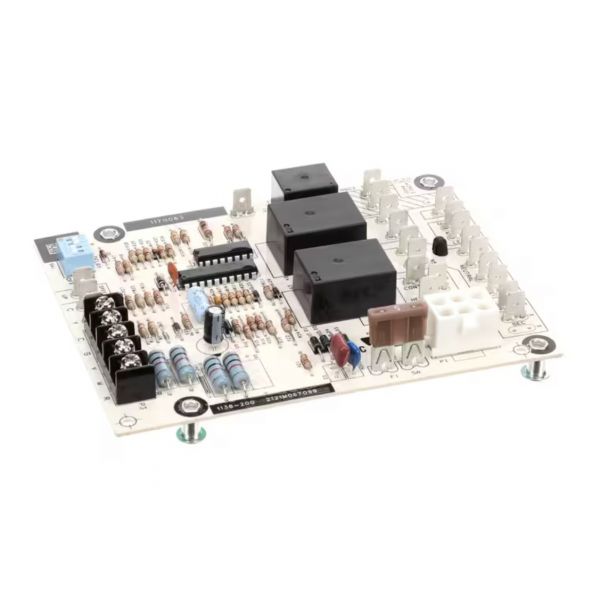

International Comfort Products 1170063 Fan Timer Circuit Board

Be the first to review this product
Special Price $192.02 Regular Price $220.82
In stock
SKU
1170063
The International Comfort Products 1170063 Circuit-Board for Fan Control Timer is an essential part for controlling the fan timer in HVAC systems. This circuit board controls the timing of the fan to make sure that the heating and cooling cycles are effective. It is used in different HVAC equipment to enhance system reliability and performance. With the proper management of fan cycles, the board contributes to the reduction of energy consumption, the prolongation of the system’s life, and the improvement of general comfort. It is compatible with various HVAC units, which makes it a vital replacement part to keep the optimal function and energy efficiency of residential and commercial spaces.
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/1/1170063.jpg

Specifications

  • Type: Circuit Board for Fan Control Timer

    International Comfort Products 1170063 Control Fan Timer Board

    The International Comfort Products 1170063 Control Fan Timer Board is a critical component in heating, ventilation, and air conditioning  systems, designed to precisely and efficiently control fan operation. This timer board is designed to withstand the harsh conditions of industrial environments, ensuring optimal airflow management for increased comfort and energy efficiency. The 1170063 board's advanced control capabilities enable synchronized fan operation, which improves system performance while reducing energy consumption. Its intuitive design and user-friendly interface make setting up and configuring it simple, while also streamlining maintenance processes and reducing interruption. The timer board is designed to withstand continuous use, ensuring long-term reliability and performance consistency. Whether used in a residential, commercial, or industrial setting, the International Comfort Products 1170063 Control Fan Timer Board offers unparalleled efficiency and functionality. The International Comfort Products 1170063 Control Fan Timer Board. Trust in its outstanding dependability and performance to meet the diverse needs of modern heating and cooling applications while providing comfort.

    Key Features For 1170063 International Comfort Products Control Fan Timer Board

    • Dual Blower Motor Control: Provides outputs for controlling two separate blower motor speeds, typically high and low, for optimized comfort and energy efficiency.
    • Single Speed Inducer Motor Control: Manages the operation of the inducer motor, which helps draw combustion air into the furnace.
    • Thermostat Compatibility: Works with standard thermostats by receiving control signals through W, Y, and G terminals (Heat, Cool, Fan).
    • Pressure Switch and High-Limit Switch Inputs: Integrates with safety features like pressure switches that monitor airflow and high-limit switches that prevent overheating.

    Signs of a Faulty International Comfort Products Control Fan Timer Board 1170063:

    • Inconsistent System Behavior: The furnace might not turn on or cycle erratically, failing to properly heat or cool your space.
    • Blower Fan Issues: The blower fan may not turn on at all, run continuously regardless of the thermostat setting, or exhibit unusual speeds or noises.
    • Thermostat Not Responding: The furnace does not appear to respond to changes made to the thermostat.
    • Burning Smell: A burning odor emanating from the furnace may indicate electrical problems with the control board.

    Choose the best HVAC equipment parts and supplies from PartsHnC!

    • Same Day Shipping

    • Best Quality And Best Price

    • Wide Range of Inventory

    • Best Customer Service

    Have More Questions or Need Help to Place The Order?
    Reach us at (866)773-0907 or [email protected]

    Reviews
    Write Your Own Review
    You're reviewing:International Comfort Products 1170063 Fan Timer Circuit Board
    Your Rating
    Product Questions (2)
    Customer Questions
    What maintenance is required for the International Comfort Products 1170063 Fan Timer Circuit Board?

    Inspect the circuit board regularly for dust buildup, loose wiring, or moisture exposure. Keep the board clean and ensure connections remain secure. Check for signs of overheating or damaged components. Always turn off power before servicing to prevent electrical shock.

    What are common issues with the International Comfort Products 1170063 Fan Timer Circuit Board?

    • Fan not turning on or shutting off properly.
    • Irregular timing or delayed fan operation.
    • Burnt or damaged circuit components.
    • Inconsistent control signals affecting performance.

    Installation Steps

    Step 1: Turn off power at breaker and confirm no voltage for safety before starting.

    Step 2: Open access panel, note and label all wiring connections for reference.

    Step 3: Remove old board and carefully position new circuit board on existing mounting standoffs.

    Step 4: Reconnect wires according to diagram, ensuring tight secure terminal connections.

    Step 5: Restore power and test fan, and timing sequence LEDs operate for proper operation.
