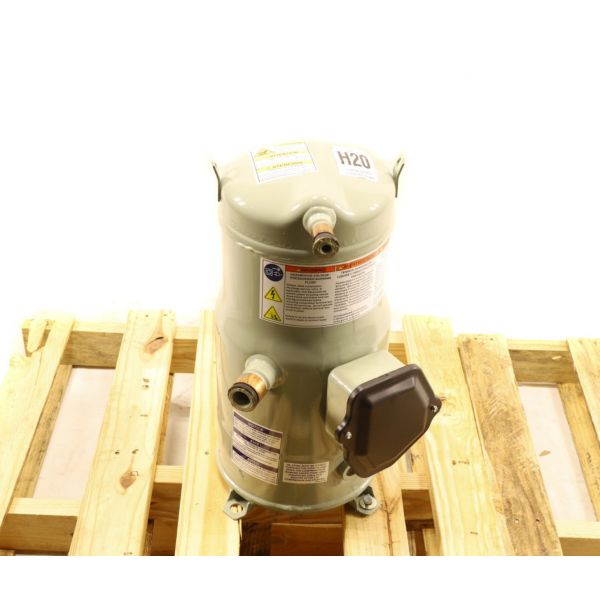

Trane COM9984 13.4-Ton Scroll Compressor R410

Special Price $5,726.15 Regular Price $6,356.03

In stock

SKU

COM9984

The Trane COM9984 Scroll Compressor works through a motor that rotates two intermeshed scroll-shaped parts enclosed in a single case. When these scrolls turn round, refrigerant gas contained within is compressed and this results in increase in pressure and temperature. This compressed refrigerant then circulates throughout the system, using R-410A refrigerant to take heat away from indoors. With a capacity of 13. 4 tons, the COM9984 is designed to meet the cooling demand of large building and structures. This Trane compressor, through its scroll design, effectively compresses refrigerant to deliver powerful heat rejection, better cooling performance and dependable climate control in your commercial or industrial HVAC system. The Trane COM9984 is a high-capacity scroll compressor for use in commercial or industrial applications most probably in large Trane HVAC systems, probably air conditioners.

Categories: Air Conditioner Parts, Compressors

Manufacturer:

Trane

Specifications

Voltage: 230V
Discharge Size: 7/8"
Length: 24"
Weight: 209lbs
Frequency: 50/60 Hz
Material: Cast Iron
Refrigerant: R-410A

Phase: Three
Speed: 1750 RPM
Connection Type: Brazed, Stub Tube
Capacity: 13.4Ton
Oil Type: Mineral Oil
Type: Hermetic, Positive Displacement

Details

Air-conditioning equipment relies on compressors to create the pressure conditions needed for the refrigeration process. The Trane COM9984 is a Scroll Compressor designed for compatible air-conditioning applications using R410 refrigerant. Its internal scroll mechanism processes refrigerant vapor as part of the system's cooling operation. The compressor therefore serves as a central component within the refrigeration circuit.

SCROLL COMPRESSION AND PRESSURE GENERATION:
A scroll compressor uses two spiral-shaped elements, with one fixed and the other orbiting around it. These elements form enclosed pockets that carry refrigerant vapor toward the center of the scroll set. As the pockets become smaller, the vapor is compressed and its pressure increases. The compressed vapor is then discharged from the compressor for continued movement through the refrigeration system.

CAPACITY AND REFRIGERANT APPLICATION:
The Trane COM9984 has a listed nominal capacity of 13.4 tons and is associated with R410 refrigerant. The capacity identifies the compressor's stated cooling-capacity class, while the refrigerant designation identifies the refrigerant used by the applicable system.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when the COM9984 4-Ton Scroll Compressor develops confirmed internal wear that affects its ability to complete the compression process. It may also be appropriate when a confirmed internal electrical fault prevents the compressor from operating reliably. Before ordering, compare the complete part number with the equipment documentation and verify the applicable compressor replacement requirements.

COMMON SIGNS OF FAILURE:

Air-conditioning equipment fails to maintain the expected temperature.
The compressor does not start when cooling is requested.
Cooling performance decreases during normal operation.
Electrical protection repeatedly interrupts compressor operation.
Unusual compressor noise or vibration develops during operation.

EQUIPMENT COMPATIBILITY:
The Trane COM9984 4-Ton Scroll Compressor should be selected only for equipment that calls for this compressor or an officially documented equivalent. Confirm the equipment model and existing compressor identification before installation. The equipment's capacity and refrigerant requirements should also correspond with the COM9984 specifications.

TECHNICAL SPECIFICATIONS:
Part Identification:
Brand: Trane
Part Number: COM9984
Product Type: Scroll Compressor
Application: Air Conditioning
Capacity Performance:
Nominal Capacity: 13.4-Ton
Refrigeration Specifications:
Refrigerant: R410
