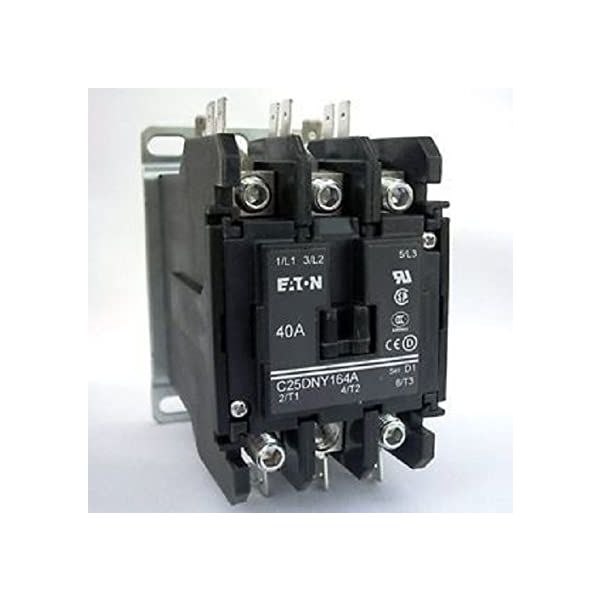

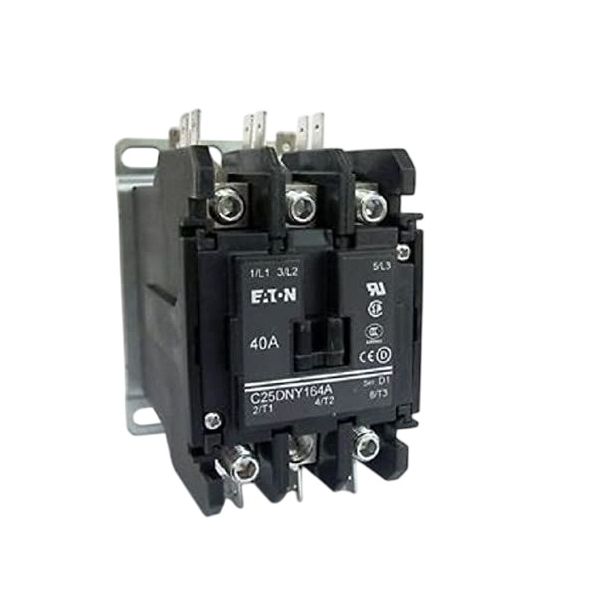

120V Coil 3P Contactor Cutler Hammer-Eaton C25DNY164A
C25DNY164A Contactor Cutler Hammer-Eaton is a definite purpose contactor designed for various industrial and commercial applications. It is a compact and reliable device used to control electrical loads in motors, heating elements, and other equipment.Cutler Hammer-Eaton C25DNY164A acts as an electronically controlled switch that turns on and off electrical loads based on user input or external control signals.It provides safe and reliable control of high-power electrical loads, protecting equipment and personnel from potential electrical hazards. contactor can be controlled remotely through various means, allowing for automated operation and integration with control systems.
Key Features:
- Three-pole configuration: Suitable for controlling three-phase electrical loads.
- 40A current rating: Handles high-power applications.
- 120V AC coil voltage: Requires a 120V AC supply to operate.
- Lug and hex screw terminals: Provide secure and reliable connection of power cables.
- Compact design: Saves space in control panels and enclosures.
- Durable construction: Built to withstand demanding industrial environments.
Dimensions of the C25DNY164A Contactor Cutler Hammer-Eaton
- Length: 4.32 inches (110 mm)
- Width: 3.66 inches (93 mm)
- Height: 4.25 inches (108 mm)
- Weight: 1.25lbs/566.99g
Signs of a Faulty 120V Coil 3P Contactor Cutler Hammer-Eaton C25DNY164A
C25DNY164A Contactor Cutler Hammer-Eatonis a critical component in various industrial and commercial applications. Identifying potential issues with this contactor is crucial for ensuring the safe and reliable operation of your electrical systems. Here are some signs that might indicate a faulty C25DNY164A:
Operational Issues:
- Equipment failure to turn on or off: The connected equipment may not respond to control signals, remaining in an on or off state regardless of user input.
- Intermittent operation: The equipment may turn on and off randomly or experience unexpected fluctuations in power, potentially leading to disruptions and damage.
- Unusual humming or buzzing sounds: The contactor may emit loud noises while operating, indicating potential internal issues like coil vibration or worn contacts.
- Excessive heat generation: The contactor may feel hot to the touch, suggesting overheating due to internal problems or overloaded circuits.
- Burning smell: A burning odor emanating from the contactor is a serious sign and requires immediate attention to prevent further damage or fire hazards.
Visual Signs:
- Visible damage to the contactor: This could include cracks, burns, melted parts, or broken connections on the housing or terminals.
- Loose or corroded connections: Loose or corroded connections on the power cables or internal terminals can lead to overheating, arcing, and potential equipment failure.
- Discoloration or burns on the contactor coil: Discoloration or burn marks on the coil could indicate internal overheating or a faulty coil.
Other Potential Signs:
- Increased energy consumption: The contactor may draw more power than usual, even when the connected equipment is not operating, suggesting internal problems or inefficiencies.
- Reduced efficiency: The connected equipment may not perform as expected, experiencing slower operation, reduced output, or other performance issues.
- Tripping of circuit breakers or fuses: Frequent tripping of circuit breakers or fuses protecting the contactor may indicate overloaded circuits, faulty wiring, or a problem with the contactor itself.
Choose the best HVAC equipment parts and supplies from PartsHnC!
Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]
FAQs
Q: How do I know if the 120V Coil 3P Contactor Cutler Hammer-Eaton C25DNY164A is compatible with my equipment?
A: Refer to the manufacturer's documentation or consult a qualified electrician. Ensure the contactor's voltage rating and current capacity match your needs.
Q: How often should I inspect the 120V Coil 3P Contactor?
A: Regularly inspect the contactor for visible damage and follow the manufacturer's recommended maintenance schedule.
Q: What are some benefits of using the Cutler Hammer-Eaton C25DNY164A?
A: Improved efficiency, enhanced safety, increased productivity, reduced maintenance, and reliable performance.
