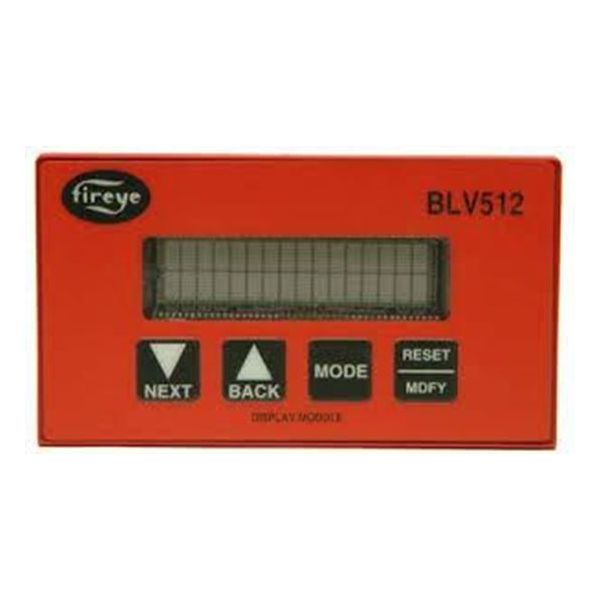

The Fireye BLV512 VFD Display Module is a high performance Vacuum Fluorescent Display for HVAC systems with 2 line displays and 16 characters per line. This module is used primarily in commercial and industrial HVAC system to monitor and control system parameters and is equipped with a connecting cable. With its bright easy to read display, get increased visibility in all lighting conditions to quickly access vital data, like system status and diagnostics. Due to its robust design, It can be easily integrated into any Fireye panel to increase operational efficiency, decrease downtime and enhance management and performance of energy management and control.
The Fireye BLV512 is more than just a display; it's a window into the health and performance of your burner. It provides real-time information about your burner's operation, including flame strength, fuel pressure, air pressure, and other parameters. It also allows you to navigate settings and clear lockouts. This compact yet powerful module works seamlessly with the Fireye BurnerLogiX control system, providing you with crucial information and control at your fingertips. Improves understanding of burner operation and potential issues. Provides diagnostic information to identify and resolve problems quickly. Enables operators to make informed decisions to optimize burner performance. The BLV512 Fireye VFD display enhances overall safety by providing clear visual feedback on burner status.
Key Features:
2-line, 16-character display: Shows real-time information about burner operation, including flame status, alarms, diagnostic messages, and parameter settings.
Vacuum fluorescent display (VFD): Offers high visibility even in low-light conditions and operates in a wide temperature range (-40°F to +140°F).
Fully functional keypad: Allows users to navigate through menus, adjust settings, and acknowledge alarms.
Easy-to-read language descriptors: Provides clear explanations of status messages and diagnostic information.
Remote mounting option: Can be mounted directly on the BurnerLogiX control unit or remotely using optional kits, providing flexibility in placement.
NEMA 4X rating (when remotely mounted): Makes it suitable for harsh industrial environments.
Signs of Faulty Fireye BLV512 VFD Display
Display Issues:
Dim or flickering display: A faint or flickering display can make it difficult to read burner information, potentially indicating a failing backlight or faulty connection.
Missing or garbled characters: Distorted or missing characters on the display might point to internal memory or processing problems within the BLV512.
Blank screen: A completely blank screen suggests a loss of power or a more severe malfunction in the display module.
Operational Problems:
Unresponsive keypad: If the keypad buttons don't respond to presses, it could be due to keypad membrane failure or connection issues.
Erratic data: Inaccurate or fluctuating readings of burner parameters like flame signal or pressure might indicate faulty sensors or internal errors.
Frequent lockouts: The BLV512 shouldn't lock out frequently unless there are genuine burner safety concerns. If lockouts occur often without apparent reason, it could point to a malfunction in the display module's safety logic.
Physical Indicators:
Visible damage: Cracks, burn marks, or loose connections on the BLV512's housing can compromise its functionality and safety.
Unusual heat: The BLV512 should not feel excessively hot to the touch. If it does, it could indicate internal overheating, potentially due to component failure.
Additional Warnings:
Error codes: The Fireye system might display specific error codes related to the BLV512's operation. Consult the Fireye documentation for detailed interpretations of these codes.
Unexpected behavior: Any unusual behavior in the burner's operation, such as erratic flame patterns or changes in fuel consumption, could be linked to the BLV512 malfunctioning and providing incorrect data.
Choose the best HVAC equipment parts and supplies from PartsHnC!
How do I navigate the menus on the Fireye BLV512 VFD display?
Use the arrow keys and function buttons on the keypad to scroll through menus and adjust settings. Refer to the user manual for specific instructions.
What do the error codes on the VFD display mean?
Each error code has a specific meaning related to the burner or BLV512 itself. Consult the error code list in the user manual for troubleshooting steps.
How do I clear a lockout on the VFD display?
You can typically clear a lockout by addressing the underlying issue that triggered it, then using the keypad to unlock the burner. Refer to the user manual for specific instructions.
