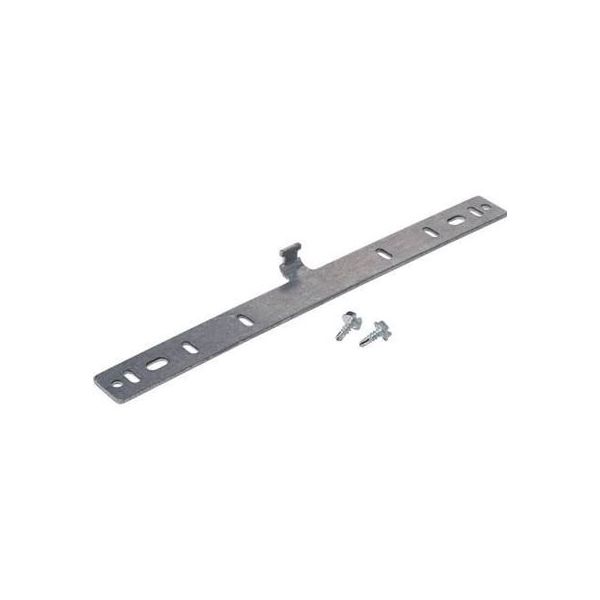

Johnson Controls M9000-604 Anti Rotation Bracket

Be the first to review this product
Special Price $24.26 Regular Price $31.54
In stock
SKU
M9000-604
The Johnson Controls M9000-604 Anti Rotation Bracket is an essential component to be used with electric actuators in HVAC systems. Especially when mounting the valve requires a precise positioning of the actuator relative to the valve body, this bracket prevents the actuator from rotating during its operation. The M9000-604 bracket allows electric actuators to adjust the valve position accurately with 35 in-lb torque and a 4mA-20mA acceptance range. Suitable for various climate conditions typical for HVAC systems, operating in the temperature range of -20°C to 50°C and powered with 24V AC/DC.
Add to Wish List
HVAC Controls, Air Conditioner Parts, Brackets
Manufacturer:
https://www.partshnc.com/media/catalog/product/p/a/partshnc_johnson_controls_parts_anti_rotation_bracket_m9000604.jpeg

Specifications

  • Weight: 0.13lbs
  • Type: Electric Actuator
  • Torque: 35 in-lb
  • Control Signal: 4mA-20mA
  • Power Supply: 24V AC/DC
  • Angle of Rotation:90 degrees
  • Temperature Range: -20°C to 50°C
Manufacturer Name: Johnson Controls
Product Number: M9000-604
OEM Part Number: M9000-604
Product Description: Anti Rotation Bracket
Weight:0.13lbs/58.97g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Johnson Controls M9000-604 Anti Rotation Bracket
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Johnson Controls M9000-604 Anti Rotation Bracket?

Inspect the bracket regularly to ensure it remains securely fastened and properly aligned with the mounted component. Check for corrosion, rust, or physical damage and clean debris buildup. Tighten mounting hardware and ensure vibration has not loosened connections.

What are common issues with the Johnson Controls M9000-604 Anti Rotation Bracket?

  • Loosening from vibration during HVAC operation.
  • Misalignment causing unstable component positioning.
  • Stripped or worn mounting hardware reducing grip.
  • Improper installation torque leading to instability.

Installation Steps

Step 1: Turn off power to the actuator and ensure the HVAC system is fully de-energized before starting.

Step 2: Position the bracket on the mounting surface aligned with the actuator body to prevent rotation during operation.

Step 3: Secure the bracket using the supplied screws and ensure it is tightly fixed to the damper or frame.

Step 4: Attach the actuator to the bracket, confirming the shaft alignment is correct and free of binding.

Step 5: Restore power and test actuator travel to confirm stable operation without rotation or slippage.
