Resideo AM100C1070-US-1LF 1/2" Union Sweat Mixing Valve 70°F - 120°F
Special Price $143.79 Regular Price $165.36
In stock
SKU
AM100C1070-US-1LF

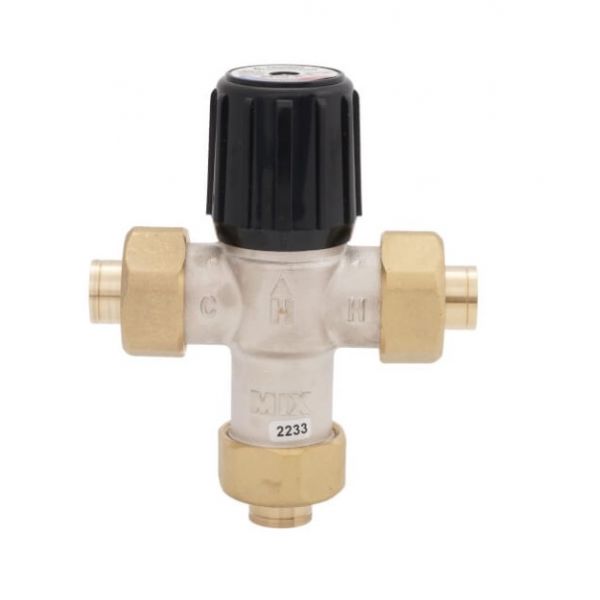

The Resideo AM100C1070-US-1LF thermostatic mixing valve is designed to control water temperature in residential as well as commercial buildings. It is able to maintain water temperature between 70°F and 120°F by skillfully mixing the cold and hot water supply. This union sweat mixing valve has a strong build and is made of nickel plated brass with EPDM seals to prevent corrosion. It has a straight through design that makes it easy to install and maintain. It has check valves in both the cold-intake as well as the hot-intake to avoid back flow in the unit.
Manufacturer:
Specifications
- Type: Union Sweat Mixing Valve
- Approvals and Standards: ASSE 1017 Certified, ASSE 1070 Certified, CSA Listed, IAPMO Listed
- Color: Metallic
- Includes: Check Valves on Hot and Cold Inlets
- Height: 5.4"
- Length: 4.6"
- Flow Coefficient: 1.8 Cv
- Number of Check Valves: 2
- Mixing Temperature Range: 70°F to 120°F
- Max Pressure: 150 PSI
- Seal Material: EPDM Rubber
- Valve Body Material: Teflon-coated, Nickel-plated Brass
- Connection Size: 1/2"
- Connection Type: Union Sweat
- Nominal Diameter: DN15
- Number of Connections: 3
- Valve Body Pattern: Straight Through
