Johnson Controls A19ADB-2C M/R Temperature Control 100°F-240°F

Special Price $156.84 Regular Price $180.37
In stock
SKU
A19ADB-2C

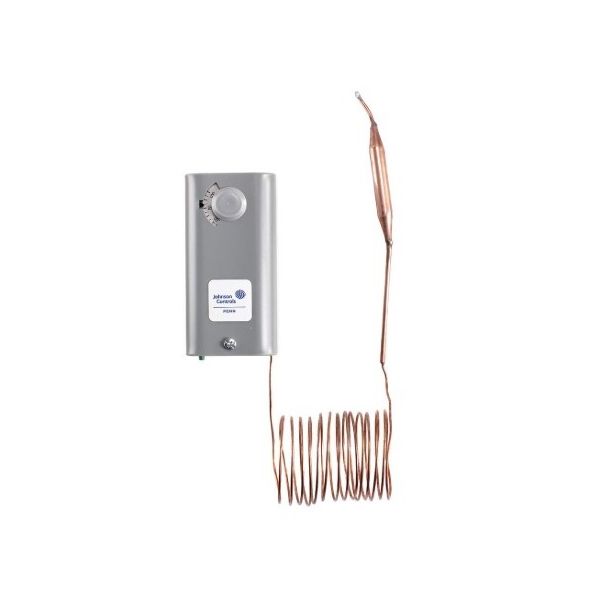

The Johnson Controls A19ADB-2C Direct Immersion Temperature Control is designed to serve as an accurate thermostat for HVAC systems. Due to the direct immersion architecture of this control device, it can detect and control temperatures within the medium. It has economically designed temperature control up to 250°F with a set point range 100°F to 240°F for various processes. The SPST output enables reliable switching, and an extra measure of protection is provided by the manual reset function which requires the user’s attention once the temperature setting is reached.
https://www.partshnc.com/media/catalog/product/a/1/a19adb-2c.jpg

Specifications

  • Temperature Range: 250°F
  • Type: SPST
  • setpoint range: 100°F to 240°F
  • Weight: 3lbs

Product Overview:
Regulates hot water temperature in heating equipment through temperature-sensitive switching and high-temperature limit protection. The Johnson Controls A19ADB-2C M/R Temperature Control 100°F–240°F is an OEM mechanical temperature control designed for hot water applications requiring high-temperature lockout protection. Its liquid-filled sensing element monitors temperature changes and operates the electrical contacts when the selected temperature limit is reached.

Temperature Sensing and Limit Protection:
Changes in water temperature cause the liquid-filled sensing element to respond and monitor conditions within the adjustable range of 100°F to 240°F. When the selected temperature limit is reached, the SPST contacts open and interrupt the controlled electrical circuit.

Manual Reset Switching Operation:
Following a high-temperature limit condition, the control maintains an open electrical circuit until manually reset. This lockout response prevents the controlled circuit from resuming operation automatically after the selected temperature limit has been reached.

Replacement Guidelines:
Replace the Johnson Controls A19ADB-2C M/R Temperature Control when it no longer responds reliably to temperature changes or fails to provide the expected high-temperature limit protection. Inconsistent temperature regulation, failure to open the controlled circuit at the selected limit, or unreliable manual-reset operation may indicate the need for replacement. A qualified HVAC technician should verify the existing control part number, temperature range, switch configuration, and equipment requirements before selecting a replacement.

Common Failure Symptoms:

  • Hot water temperature exceeds the selected control limit.
  • Controlled equipment does not shut off as expected at the temperature setting.
  • Temperature regulation becomes inconsistent.
  • Manual-reset operation becomes unreliable.
  • Heating equipment experiences irregular temperature-control behavior.

Equipment Compatibility:
The Johnson Controls A19ADB-2C is an OEM A19 Series hot water temperature control designed for well-immersion applications, including compatible hot water heating equipment and boilers. It features an adjustable temperature range of 100°F to 240°F, an SPST switching configuration, high-temperature lockout, and manual reset. Verify the original control part number and equipment configuration before selecting a replacement.

Technical Specifications:
Brand: Johnson Controls
Part Number: A19ADB-2C
Product Type: M/R Temperature Control
Product Series: A19
Temperature Range: 100°F–240°F
Reset Type: Manual Reset

Write Your Own Review
You're reviewing:Johnson Controls A19ADB-2C M/R Temperature Control 100°F-240°F
Your Rating
Customer Questions
How does the Johnson Controls A19ADB-2C protect hot water heating equipment?

The A19ADB-2C uses a liquid-filled sensing element to monitor water temperature. When the selected temperature limit is reached, its SPST contacts open and interrupt the controlled electrical circuit.

What temperature range does the Johnson Controls A19ADB-2C support?

It has an adjustable temperature range of 100°F to 240°F for selecting the required high-temperature limit in compatible applications.

What happens after the A19ADB-2C reaches its high-temperature limit?

The control maintains an open electrical circuit until manually reset. This manual-reset lockout prevents the controlled circuit from automatically resuming operation after a high-temperature trip.

Is the Johnson Controls A19ADB-2C suitable for boiler and hot water applications?

Yes. It is designed for well-immersion applications, including compatible hot water heating equipment and boilers. Verify the existing control part number and equipment configuration before ordering.

What maintenance checks are recommended for the Johnson Controls A19ADB-2C?

Have a qualified HVAC technician inspect the sensing element, electrical contacts, wiring connections, and manual-reset mechanism. Confirm that the contacts open at the selected temperature limit and that the reset mechanism operates correctly.
