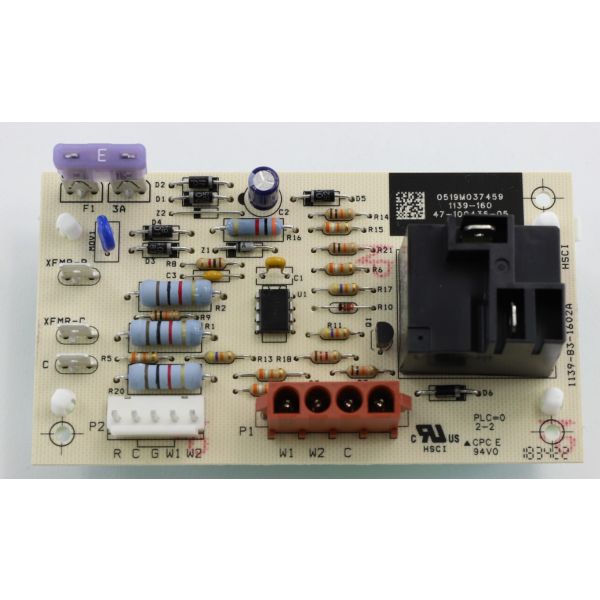

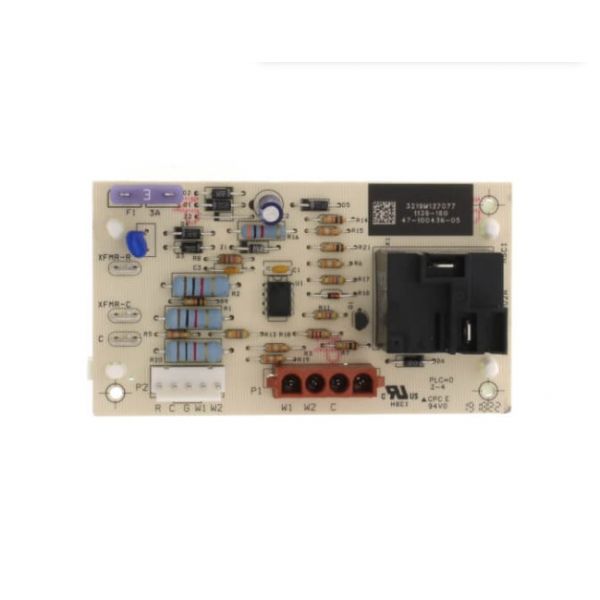

The Rheem-Ruud 47-100436-05 Control Board is one of the essentialsystem controls meant to control and manage the functioning of heating and cooling systems. They are also the central control of the HVAC system it receives data from different sensors and elements of the system to ensure the better performance and comfort. This control board is used in different Rheem and Ruud heating and cooling equipment such as furnaces, air conditioners among others. This enables great control over system operations ranging from the fans to the heating processes in the system hence improving efficiency. Benefits include reduction in system failure and increased durability, where the control board reduces the chances of having problems by controlling the functions well.
Manufacturer Name:Rheem-Ruud Product Number: 47-100436-05 OEM Part Number: 47-100436-05 Product Description: The Rheem-Rudd control boards, or control panels, are essential components in HVAC systems. They play a crucial role in regulating and coordinating various functions within the HVAC system and also provide customization options catered to users' preferences. Control boards serve as the central command center for the HVAC system, where they receive signals from thermostats and sensors and manage the overall system operation. Rheem Blower Control Board 47-100436-05 features microprocessors or advanced control algorithms to precisely manage temperature, humidity, and airflow. They are equipped with multiple input connections, allowing them to receive signals from various sources, including thermostats, humidity sensors, and pressure sensors. The control boards include diagnostic features that can detect and display system malfunctions or error codes, facilitating troubleshooting and maintenance. Control boards can optimize energy usage by adjusting system parameters based on real-time conditions and occupancy. Control boards may have memory or storage capabilities for storing historical data, settings, and logs, which can aid in troubleshooting and performance analysis. The Rheem Blower Control Board 47-100436-05 in HVAC systems are advanced component that manages and coordinates the operation of heating, cooling, and ventilation equipment. They offer precise control, diagnostics, safety features, and compatibility with various system components, contributing to the efficient and reliable operation of HVAC systems.
Some of the main features offered by the control boards in HVAC systems are:
Centralized control hub for HVAC functions.
Safety features for monitoring and responding to hazards.
Diagnostic capabilities for troubleshooting.
Input and output connections for sensors and system components.
Weight:0.19lbs/86.18g
Choose the best HVAC equipment parts and supplies from PartsHnC!
How to install an expansion valve for refrigeration?
Thermostatic expansion valves are an integral part of your refrigeration unit. They are responsible for ensuring the right dosage of refrigerant is entering the cooling coil to ensure maximum efficiency in the air conditioning of the system.
These special expansion valves come with a temperature sensor that is mounted at the end of the evaporator coil. They incorporate signals from this sensor to maintain the required temperature of the HVAC system. The thermostatic expansion valve works like a precision device that can regulate the measurements of the liquid refrigerant that flows into the evaporator of your system. This regulation in the flow of the refrigerant is essential to prevent the reverse flow of the refrigerant into the compressor of your system.
Through this mechanism, the thermostatic expansion valve successfully separates the high and low pressure sides of the refrigeration/air conditioning system. The liquid refrigerant enters the expansion ...
Can I Upgrade My Existing HVAC System with a New Control Board to Improve Efficiency and Performance?
Upgrading to a new control board can enhance system efficiency and features, but compatibility with your existing HVAC equipment and wiring must be assessed.
What Maintenance Is Required for Control Boards, and How Often Should It Be Done?
Control board maintenance primarily involves ensuring clean electrical connections and inspecting for any visible damage. Consult your HVAC system's manual for specific maintenance recommendations.
What Is the Typical Lifespan of a Control Board, and How Do I Know When It Needs Replacement?
The lifespan varies, but control boards are designed to last several years. Signs of replacement include frequent malfunctions, errors, or system failures. Consult an HVAC technician for a professional assessment.
