Lennox 12Y17 Blower Motor 460V 3Phase 3HP 1750RPM 56Hz

Special Price $467.58 Regular Price $519.02
In stock
SKU
12Y17

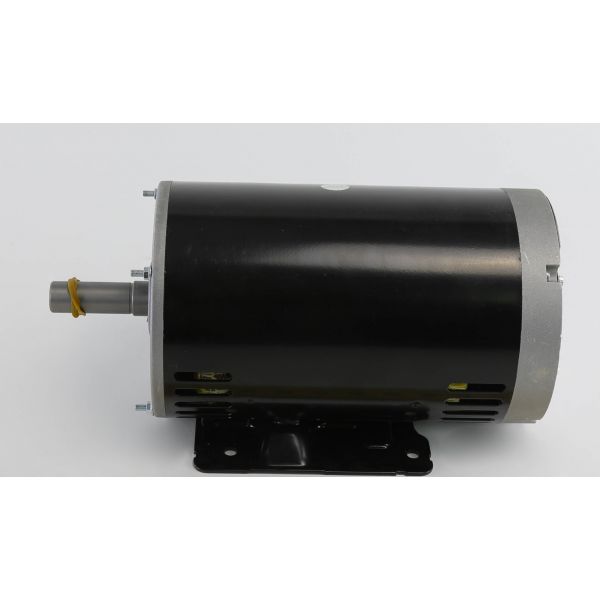

The Lennox 12Y17 is a blower motor that is used in many units of HVAC equipment, such as Furnaces and Air Handling Units. Constructed with steel frame and ball bearings, the Lennox 12Y17 is a 3-horsepower motor with 460V and 60Hz frequency. It has a diameter of 6.62 Inches and a shaft length of 2.25 Inches. However, this motor has features such as reversible rotation and single speed making it easier to control the systems. With an optimum air movement of 1750 RPM, the Lennox 12Y17 blower motor helps an HVAC system to function effectively and also offers pleasant comfort within the home environment.
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/2/12Y17_Lennox_partshnc.jpg

Specifications

  • Diameter: 6.62 Inch
  • Shaft Length: 2.25 Inch
  • Voltage: 460V
  • Measure: Unit
  • Horsepower: 3Hp
  • Frame: 56HZ
  • Phase: 3
  • RPM: 1750
  • Frequency: 60 Hz
  • Amperage
  • 3.9
  • Bearing Type: Ball
  • Number of Speeds: 1
  • Mounting Position: Horizontal
  • Mounting Type: Rigid
  • Rotation :Reversible
  • Bearing Type: Ball
  • Weight: 53.88lbs
Manufacturer Name: Lennox
Product Number: 12Y17
OEM Part Number: 12Y17
Product Description: 460V3ph 3Hp 1750Rpm 56Hz Mtr
Weight:53.88lbs/24439.54g
