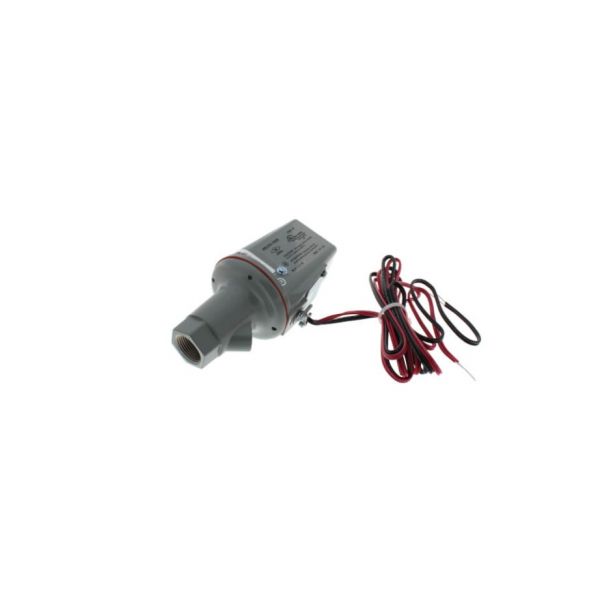

The Fireye 45UV5-1009 Self-Check UV Scanner uses ultraviolet sensing technology to detect and monitor flames in burners and boilers and industrial combustion systems for safe operation. This combines a 1" NPT mounting tube with an 8-foot electrical connection for continuous flame verification through ultraviolet sensing technology. The built-in self-checking system improves safety because it stops incorrect readings and identifies sensor breakdowns minimizing burner system failures. The reliable flame scanner operates in demanding heat conditions to enhance system effectiveness while meeting safety standards and extending machinery durability in application areas of commercial and industrial heating processes.
The Fireye 45UV5-1009 is a compact and reliable ultraviolet (UV) self-checking scanner designed to monitor the presence of a flame in boilers, heaters, and other combustion equipment fueled by fossil fuels like natural gas, propane, and kerosene. 45UV5-1009 Fireye UV self-checking scanner plays a critical role in ensuring safe and efficient operation by providing constant feedback on the flame's status. Early detection of flame extinction prevents uncontrolled fuel flow, minimizing the risk of explosions and fires. Optimizes fuel consumption by ensuring proper combustion and preventing unnecessary fuel usage. Timely alerts about flame issues allow for prompt troubleshooting and prevent unexpected equipment shutdowns. Provides operators with continuous and reliable information about the burner's flame status, fostering confidence and control.
Key features:
Weight: 3.22lbs/1460.57g.
UV-eye detector: Utilizes a sealed gas-filled tube that reacts to UV radiation emitted by burning fossil fuels, generating a current when a flame is present.
Self-checking functionality: Performs internal diagnostics to ensure its own operability, adding an extra layer of safety and reliability.
1" NPT mounting: Fits securely into standard piping connections for easy installation and integration into existing systems.
120 VAC shutter: Controls the exposure of the UV-eye detector to prevent false readings from ambient light.
Wide operational range: Detects flames effectively within a range of 190-270 nm, covering various fuel types and combustion conditions.
Signs of Faulty Fireye UV Self-Checking Scanner
Flame Detection Issues:
Frequent burner shutdowns: If the burner shuts down unexpectedly due to "no flame" signals despite a clear flame, it could indicate a faulty UV sensor or issues with the scanner's internal processing.
Delayed or erratic flame detection: If the scanner takes longer than usual to detect a flame or displays fluctuating readings, it might be due to sensor degradation, misalignment, or electrical problems.
False flame signals: If the scanner detects a flame even when the burner is off, it could be due to internal malfunctions or interference from external sources like sunlight or welding arcs.
Operational Issues:
Error codes: The Fireye control system might display specific error codes related to the 45UV5-1009's operation. Consult the Fireye documentation for detailed interpretations of these codes.
Unresponsive communication: If the scanner stops communicating with the control system, it could be due to wiring problems, faulty connections, or internal component failures.
Physical damage: Visible cracks, burn marks, or loose connections on the scanner's housing can compromise its functionality and safety.
Safety Concerns:
Gas leaks: If the scanner malfunctions and fails to detect a flame extinguishment, it could lead to gas leaks posing a fire hazard.
Unexpected burner operation: If the scanner provides incorrect flame signals, it could lead to unintended burner ignition or continued operation with low flame quality, potentially causing equipment damage or safety risks.
Similar Models:
45UV5-1005, 45UV5-1006, 45UV5-1105, 45UV5-1000.
Choose the best HVAC equipment parts and supplies from PartsHnC!
45UV5-1009 Fireye UV self-checking scanner is compatible with various Fireye control systems, has adjustable settings, robust construction, and a NEMA 4 enclosure rating.
How do I adjust the settings of 45UV5-1009 Fireye UV self-checking scanner?
Consult the user manual for specific instructions on adjusting parameters like flame signal strength and timing intervals. These settings should be customized for your burner configuration and fuel type.
