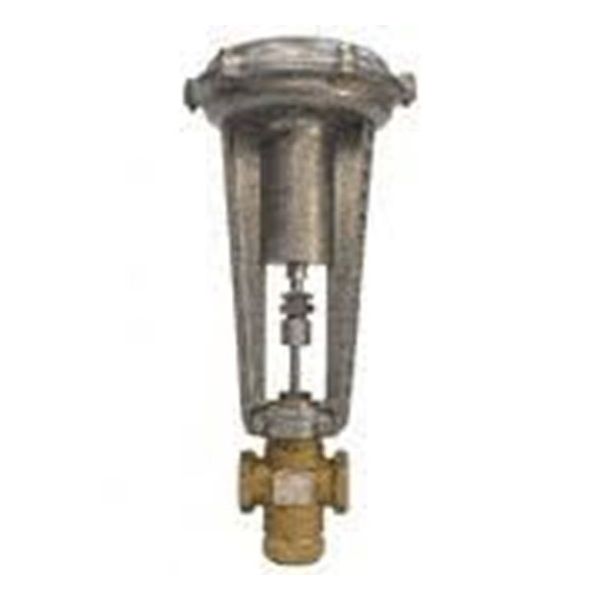

Siemens Building Technology 283-03204 1-1/4" 3-Way Valve Mixing Assembly 8" Pneumatic Actuator 16Cv W/Factory Mounted Positioner
Special Price $717.90 Regular Price $796.87
Out of stock
SKU
283-03204
Siemens 283-03204 is a precision engineered valve assembly for controlling flow fluid in HVAC systems.The three way mixing valve combines two streams of fluid to create the desired combination or temperature. This valve has a 16Cv flow coefficient and a 1-1/4" dimension and accurately controls the flow of fluid while handling it efficiently. When mounted positioners are used with pneumatic actuators accurate valve operation is guaranteed based on control signals. This bronze assembly is designed to survive harsh HVAC settings, and compact design makes maintenance and installation easy. This valve optimizes , energy efficiency,system performance and comfort levels in HVAC systems by accurately managing fluid mixing, precise management of temperature, energy effectiveness.
Manufacturer:
Specifications
- Type: Valve Assembly
- Valve Type: 3-Way Mixing
- Size: 1-1/4"
- Flow Coefficient: 16Cv
- End Connection: FxF
- Connection Type: NPT
- Pressure Class: ANSI Class 250
- Spring Range: 13-60 PSI
- Stroke: 8"
- Material: Bronze
- Actuator Type: Pneumatic
- Measurement Range Humidity: 0-90% RH
- Close-off Pressure: 148 PSI
- Weight: 21.6lbs
