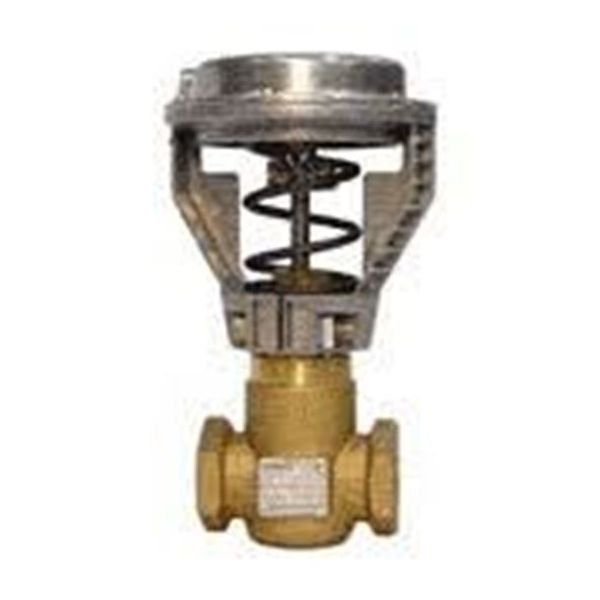

Siemens Building Technology 270-03186 1.25" 2-Way NC Valve Assembly 4" Pneumatic Actuator 10-15 PSI 16Cv Brass
Special Price $349.73 Regular Price $388.20
Out of stock
SKU
270-03186
The Siemens 270-03186 is a pneumatic 2 way brass valve which is deployed to accurately control the flow of fluid in HVAC systems. The normally closed valve in this consists of brass construction for longevity and system compatibility for a range of water-based systems. The valve comes with a 3/4" stroke for flow management, and works within a 10-15 PSI pressure range. Under harsh conditions, it provides dependable operation by virtue of its ANSI Class 250 grade. Valve 16Cv has a flow coefficient i.e. valve can provide how much flow rate. Because of its temperature range of 20°F to 250°F, this valve can be used in a number of HVAC applications. A pneumatic actuator powered by a 13.5–35 VDC supply provides its responsive control.
Manufacturer:
Specifications
- Type: Valve Assembly
- Material: Brass
- Temperature Range: 20°F-250ºF
- Valve Type: 2-Way
- Spring Range: 10-15 PSI
- Stroke: 3/4"
- Pressure Class: ANSI Class 250
- Size: 1.25"
- End Connection: FxF
- Connection Type: NPT
- Valve Actuator Type: Pneumatic
- Actuator Size: 4"
- Measurement Range Humidity: 0-100% RH
- Operating voltage: 13.5-35 VDC
- Flow Coefficient: 16Cv
- Normally Open/Normally Closed: Normally Closed
- Close-off Pressure: 80 PSI
- Weight: 11lbs
