The Warrick-Gems Sensors & Controls 26MB1A0F Low Water Cut-Off Control used as a dependable safety system that detects low water conditions in HVAC systems, particularly boilers and steam generators. The part operates through probe conductivity measurements to turn off power supply when water reaches below safe levels, protecting equipment from overheating or damage. The heating systems deployed in commercial and industrial settings utilize this part due to its ability to protect equipment and minimize maintenance requirements and increase operational safety which leads to extended HVAC equipment operability.

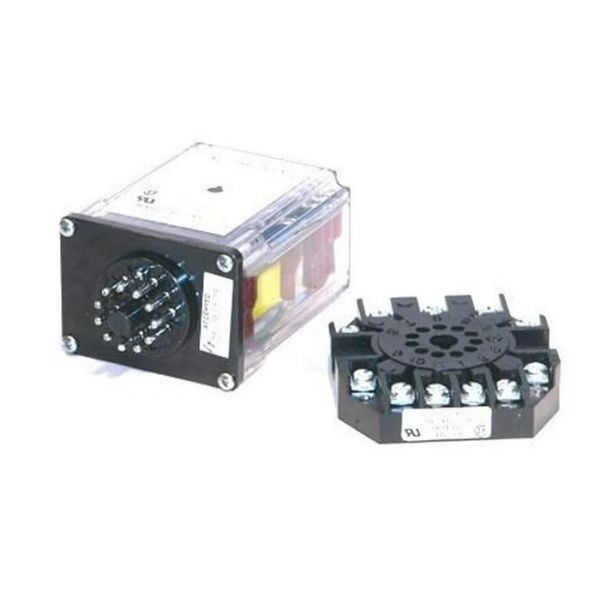

Versatile Low Water Cut-Off Control 26MB1A0F Warrick-Gems Sensors & Controls
The Warrick-Gems Sensors & Controls 26MB1A0F is a low water cutoff control with a direct-acting mode of operation. It has a 10,000 ohm resistance, a 120Vac supply voltage, and an SPST relay with one normally open (NO) and one normally closed (NC) contact. The sensor has a 1/16" panel standoff style and can be used with various liquids, including water, oil, and chemicals. A low-water cutoff control called the Warrick-Gems Sensors & Controls 26Mb1A0F is made to shield machinery from harm from running dry. A push-button for manual pump activation or system reset is also included. It appears that you were genuinely asking about the 26Mb1A0F, but I was answering questions regarding the 26B1A0F model. The low-water cutoff control, model number 26Mb1A0F from Warrick-Gems Sensors & Controls, is made especially for boiler applications. To prevent damage and potential safety issues, it uses conductivity-based sensing to monitor the water level and immediately turn off the boiler if the water level drops below a crucial point.
Key features:
Direct acting mode of operation: This means the sensor directly influences the relay output without needing an external controller.
10,000 ohm resistance: This refers to the sensor's internal resistance, which may be relevant for wiring and compatibility with other equipment.
120Vac supply voltage: The sensor requires 120 volts AC power to operate.
SPST relay with one Normally Open (NO) and one Normally Closed (NC) contact: This type of relay has one common terminal and two output contacts. The NO contact is open when the liquid level is below the setpoint and closes when the level reaches or exceeds the setpoint. The NC contact is the opposite, being closed when the level is below and open when it reaches or exceeds the setpoint.
1/16" panel standoff style: This refers to the mounting style of the sensor, with a 1/16" threaded mounting hole.
Low water cutoff: The sensor can be used to trigger an alarm or other action when the liquid level falls below a certain point, preventing damage from running dry.
Control board with no enclosure: This means the sensor board itself is provided, but it requires separate housing or integration into your equipment.
Function:
Monitors the water level: Uses conductivity to determine if water is present or not.
Provides low-water cutoff: Automatically shuts off pumps or activates alarms when the water level falls below a set point.
Manual override: Includes a push-button for manually activating the pump or resetting the system.
Applications:
Commercial and industrial boilers
Hot water boilers
Steam boilers
And other applications requiring low-water cutoff protection
Powered contacts: Provides a safer and more dependable switching mechanism compared to non-powered models.
Prevents pump operation in low-water conditions: Protects boilers from damage and potential hazards caused by dry running.
UL 353 certified: Ensures the control meets safety standards for use in boiler applications.
Improved Performance:
Direct acting operation: Reacts quickly and directly to changes in water conductivity, providing accurate level sensing.
Plug-in module design: Simplifies installation and replacement, minimizing downtime during maintenance.
Versatile control options: Dual contacts (NO and NC) offer flexibility for integrating with various boiler control systems.
Space-saving design: Mounts directly onto the boiler, reducing installation footprint.
Additional Benefits:
Durable construction: Built to withstand the harsh environments often found in boiler rooms.
Reliable operation: Proven track record of performance in boiler applications.
Wide range of compatibility: Suitable for various commercial and industrial boiler models.
Easy to maintain: Simple design facilitates troubleshooting and maintenance.
Signs of faulty 26MB1A0F Warrick-Gems Sensors & Controls Versatile Low Water Cut-Off Control:
Liquid level issues:
Equipment failure due to low water: If the sensor isn't triggering the cutoff mechanism at the intended low water level, it could lead to equipment damage or safety hazards.
False alarms or triggers: Conversely, if the sensor triggers the cutoff prematurely or even when the liquid level is adequate, it can disrupt operations and cause unnecessary downtime.
Erratic or inconsistent level readings: If the sensor readings fluctuate significantly or seem inaccurate compared to reality, it could indicate internal malfunctions.
Relay or electrical problems:
Humming or buzzing sound: This could suggest a faulty relay or internal component malfunction within the sensor.
Burning smell: This is a severe warning indication that anything may be wrong with the electricity. Immediately disconnect the sensor from power and seek professional help.
Failure to activate alarms or pumps: If the sensor is supposed to trigger other equipment based on the liquid level, but it's not working, it could be due to a faulty relay or wiring issue.
Physical damage:
Visible cracks, leaks, or corrosion: Damage to the sensor housing or internal components can affect its functionality and reliability.
Loose or damaged wiring connections: Check for any loose wires or connectors that might be interrupting the signal transmission.
Clogged sensor tip: If the sensor tip is clogged with debris, it might not be able to sense the liquid level accurately.
Additional signs:
Error messages or codes: Some models of the 26MB1A0F sensor may display error codes or messages indicating specific problems. For assistance with troubleshooting, consult the user handbook.
Sudden changes in operating behavior: If the sensor's behavior has changed noticeably from its usual pattern, it could be a sign of a developing fault.
Before troubleshooting:
Make certain that the sensor is wired and fitted according to the manufacturer's instructions.
Verify that the power supply voltage is precise and constant.
Check for any debris or loose connections that might be the source of the sensor's dysfunction.
