The Warrick-Gems Sensors & Controls 26B1A0E is a liquid level control designed for use in HVAC equipment like boilers and reservoirs. It uses electrical conductivity to monitor liquid levels and prevent damage from low water conditions. The sensor itself has no moving parts, increasing its reliability and lifespan. When the liquid level falls below a set point, the sensor triggers an electrical signal that can be used to shut down equipment or activate an alarm. This helps to protect equipment from overheating and potential failure. The 26B1A0E operates over a wide range of temperatures (-40°F to 150°F) and voltages (24/120/220/240 VAC), making it suitable for various applications. Its compact size (1/16 Inch panel) allows for easy integration into different equipment.

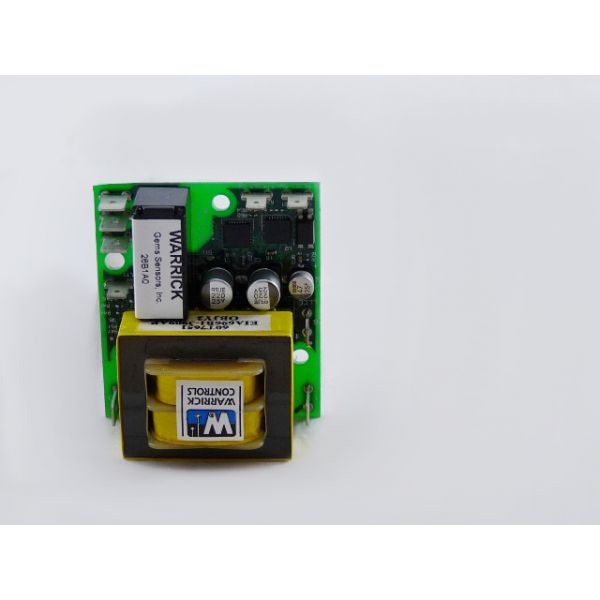

10K OHM,120V,1/16"Panel Level control Warrick-Gems Sensors & Controls 26B1A0E
A conductivity-based low-water cut-off control, the Warrick-Gems Sensors & Controls 26B1A0E is made to dependably prevent boiler dry-firing and other equipment damage brought on by low-water situations. A conductivity-based liquid level controller utilized for a variety of industrial and commercial applications is the Warrick-Gems Sensors & Controls 26B1A0E. It provides conductive liquid monitoring and control that is dependable and has no moving parts. A conductivity liquid level controller for accurate and dependable conductive fluid monitoring and control is the Warrick-Gems Sensors & Controls 26B1A0E. A liquid level control switch made specifically to precisely monitor and regulate the level of liquids in industrial applications is the Warrick-Gems Sensors & Controls 26B1A0E. This control switch has a robust construction, and adjustable sensitivity, and was designed with accuracy and dependability in mind.
Key features:
Low-Water Cut-Off Protection:
Prevents boiler dry-firing and protects other equipment from damage caused by low water levels.
Perfect for guaranteeing security in a range of industrial settings.
Conductivity-Based Operation:
No moving parts for minimal maintenance and extended lifespan.
Reliable detection of low water levels in conductive liquids.
Open Board Design:
allows for simple integration into current control systems by offering flexibility.
Allows customization of wiring configurations to suit specific needs.
Additional Features:
Power Outage Reset: Automatically resumes normal operation after power interruptions, avoiding nuisance alarms.
3-Second Time Delay: Prevents false alarms triggered by splashing or wave action.
Optional Reset Button: Enables manual reset after low-water conditions.
Adjustable Level Settings: Fine-tune the activation point for optimal control within a 90-second range.
Compact and Durable: Easily fits in small areas and is resistant to rough industrial settings.
Benefits:
Enhanced Equipment Safety: Minimizes risk of damage and costly repairs due to low water levels.
Reduced Maintenance: No moving parts simplify upkeep and extend service life.
Versatility and Customization: It works well with a variety of liquids, such as chemicals, oils, water, and more, which makes it appropriate for a range of industrial uses.
Uninterrupted Operation: The power outage reset feature ensures smooth continuation after power disruptions.
Precise Control: Customize the activation point for specific application needs.
Adjustable Sensitivity: The switch allows for precise adjustment of liquid level sensing, catering to various liquids and applications.
Durable Construction: This control switch is made of high-quality materials, so it will last and function reliably even in demanding industrial settings.
Versatile Compatibility: It works well with a variety of liquids, such as chemicals, oils, water, and more, which makes it appropriate for a range of industrial uses.
Compact Design: The compact design enables easy installation in various tank and vessel configurations, including tight spaces.
Easy Installation and Maintenance: made to be easily installed and require little upkeep, which minimizes downtime and guarantees continuous performance.
Signs of faulty 10K OHM,120V,1/16"Panel Level control 26B1A0E Warrick-Gems Sensors & Controls:
Abnormal Alarm/Shutdown Behavior:
False alarms: The control triggers an alarm or shuts down the equipment even when the water level is normal. This could indicate faulty electrodes, a broken wire, or a malfunction in the control unit itself.
No alarms or shutdowns during low water conditions: The control fails to respond to a low water level, leaving the equipment unprotected. This could be due to damaged electrodes, a broken circuit, or a problem with the power supply.
Erratic behavior: The control displays unexpected behavior like flickering lights, inconsistent readings, or frequent resets. This could indicate internal malfunctions or component issues.
Physical Damage:
Cracks, corrosion, or burns on the control unit or electrodes. Exposure to severe heat, strong chemicals, or physical impact could be the cause of this.
Loose or damaged wiring connections.
Operational Issues:
The control unit doesn't automatically reset after a power outage. This can indicate an issue with the feature that resets the power outage.
The optional reset button doesn't work properly.
Difficulty adjusting the water level settings.
Additional Considerations:
Age of the unit: While robust, even the best equipment eventually wears out. Consider replacing an aged unit if problems arise.
Environmental factors: Exposure to extreme temperatures, harsh chemicals, or physical impact can affect the performance of the Panel Level control 26B1A0.
Safety First:
Immediately shut down the equipment to prevent damage.
Consult the user manual for troubleshooting steps.
Contact a qualified technician or Warrick-Gems Sensors & Controls for assistance if needed.
