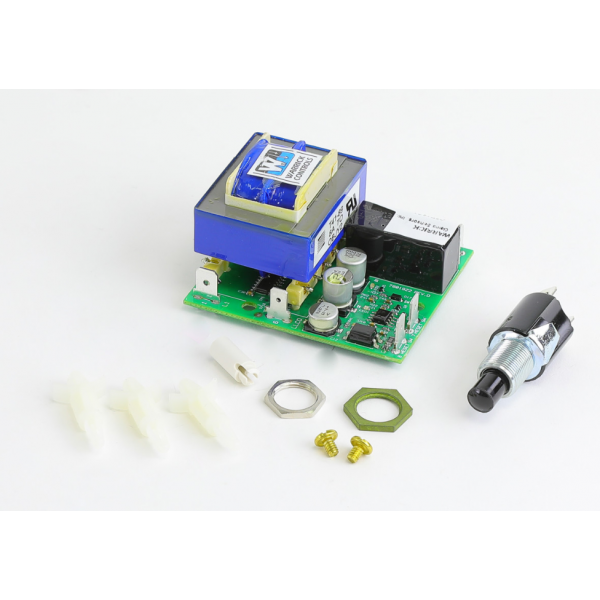

The Warrick-Gems Sensors & Controls 26B1A0A Level Control operates as a precise liquid level control part built to monitor HVAC system fluid levels with reliability. This unit operates at 120V while using a 10K Ohm resistance to measure electrode conductivity for identifying liquid presence and absence which activates control operates. This part operates within boilers and condensate tanks and cooling towers to maintain steady fluid levels protecting equipment from dry run damage and overflow. This part delivers three key advantages which improve system performance and minimize maintenance requirements and safeguard vital HVAC equipment.
liquid level control 26B1A0A Warrick-Gems Sensors & Controls
A conductivity-based liquid level control, the Warrick-Gems Sensors & Controls 26B1A0A is made for accurate and dependable monitoring of conductive liquids in a range of industrial and commercial applications. With further features, the Warrick-Gems Sensors & Controls 26B1A0A low-water cut-off control guards against damage and dry burning of boilers and other equipment when water levels are low. A conductivity liquid level controller for accurate and dependable conductive liquid monitoring and control is the Warrick-Gems Sensors & Controls 26B1A0A. It makes use of cutting-edge features to deliver top performance and security in a range of commercial and industrial applications. A conductivity liquid level control, such as the Warrick-Gems Sensors & Controls 26B1A0A, is made for precise and dependable conductive fluid monitoring and control.
Key features:
Reliable Low-Water Cut-Off Protection:
Prevents boiler dry-firing and protects equipment from damage caused by low water levels.
Ensures safety and minimizes costly repairs in various industrial applications.
Enhanced Functionality compared to 26B1A0:
Built-in 120VAC/10A relay: Offers direct control of alarms, pumps, or valves for immediate action upon low water detection.
Optional external reset button: Enables manual reset after a low-water event for user convenience and quicker equipment restart.
Panel mountable design: Integrates seamlessly into existing control panels for a clean and organized setup.
Applications:
Food and beverage processing
Chemical processing
Pharmaceutical manufacturing
Water treatment
Coolant systems
And other industrial applications using conductive liquids.
Enhanced Reliability and Performance:
Solid-state switching: Eliminates moving parts, reducing wear and tear for extended lifespan and minimized maintenance needs.
Adjustable sensitivity: Tailors detection to specific liquid properties, ensuring precise level control even with challenging fluids.
Time delay: Prevents unnecessary activations caused by temporary fluctuations, improving system stability and reducing false alarms.
AC current operation: Minimizes electrolysis, leading to longer sensor life and reducing replacement costs.
Optional dirty electrode detection: Alerts users to potential issues, allowing for timely cleaning and maintaining accurate level readings.
UL Recognized: satisfies performance and safety requirements, guaranteeing legal compliance and peace of mind.
Improved Efficiency and Functionality:
Compact size: Facilitates easy integration into control panels or tight spaces, maximizing available space.
Multiple mounting options: Provides flexibility for various installation requirements (screw terminal or DIN rail).
Optional features: Expands functionality with features like snap-thru standoff mounting for added security and power outage protection for uninterrupted operation.
Visual monitoring: LED indicators provide clear feedback on operating status and level changes, simplifying troubleshooting and maintenance.
Additional Advantages:
Reduced downtime: Enhanced reliability and accurate level control minimize equipment failures and unplanned shutdowns, leading to increased productivity and reduced operational costs.
Improved process control: Precise level monitoring ensures consistent product quality and optimizes resource utilization within your processes.
Enhanced safety: The low-water cutoff feature of the 26B1A0A can protect equipment from damage and potential safety hazards associated with low fluid levels.
Combined Benefits from 26B1A0:
Non-powered contacts: Minimizes maintenance requirements and extends lifespan.
Adjustable time delays: Prevents false alarms triggered by splashing or wave action.
LED monitoring: Provides clear visual indication of water level and operational status.
Snap-thru standoff mounting: Offers flexibility for positioning and simplifies installation.
Power outage feature: Ensures uninterrupted operation after power disruptions.
CSD1 compliance and UL "Limit Control" listing: Guarantees safety and adherence to regulations.
False alarms: The control triggers an alarm or shuts down the equipment even when the water level is normal. This could indicate faulty electrodes, a broken wire, a malfunction in the control unit, or issues with the relay.
No alarms or shutdowns during low water conditions: The control fails to respond to a low water level, leaving the equipment unprotected. This could be due to damaged electrodes, a broken circuit, a problem with the power supply, or malfunctioning of the relay.
Erratic behavior: The control displays unexpected behavior like flickering LEDs, inconsistent readings, frequent resets, or unexpected relay activation/deactivation. This could indicate internal malfunctions or component issues.
Physical Damage:
Cracks, corrosion, or burns on the control unit, electrodes, or relay. TExposure to severe heat, strong chemicals, or physical impact could be the cause of this.
Loose or damaged wiring connections.
Operational Issues:
The control doesn't automatically reset after a power outage. This could point to a problem with the power outage reset feature.
Difficulty adjusting the water level settings.
The LEDs don't provide clear or accurate information about the water level.
The optional external reset button doesn't function properly.
Additional Considerations:
Age of the unit: While robust, even the best equipment eventually wears out. Consider replacing an aged unit if problems arise.
Environmental factors: Exposure to extreme temperatures, harsh chemicals, or physical impact can affect the performance of the control.
Remember:
Prioritize safety when dealing with potential equipment malfunctions. If you suspect a problem with your 26B1A0A, immediately shut down the equipment to prevent damage.
Consult the user manual for troubleshooting steps and specific instructions for your application.
Contact a qualified technician or Warrick-Gems Sensors & Controls for assistance if needed.
