Johnson Controls M9220-HGA-3 Electric S/R Actuator Proportional W/Adjustable Zero & Span 177 In-lbs 24V

Be the first to review this product
Special Price $465.63 Regular Price $516.84
In stock
SKU
M9220-HGA-3
The Johnson Controls M9220-HGA-3 Electric Spring Return Actuator which controls HVAC systems through precise valve and damper operations. The spring-return mechanism builds into this component to provide automatic fail-safe positioning when power fails which enhances reliability and safety of the system. This actuator functions with both 24 VAC/VDC power supply to deliver high torque control for air handling units and ventilation systems and VAV applications. The component maintains its performance through its long-lasting maintenance-free design and operates efficiently to decrease expenses. This suits industrial and commercial buildings with its ability to improve quality and efficiency of HVAC systems while ensuring stable and responsive reactive control of dampers for enhanced occupant comfort.
Add to Wish List
Manufacturer:

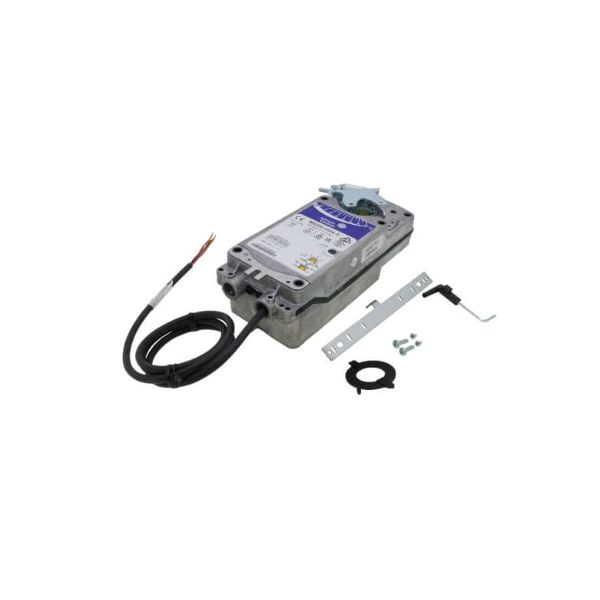

https://www.partshnc.com/media/catalog/product/m/9/m9220-hga-3.jpg

Specifications

  • Type: Electric Spring Return Actuators

    M9220-HGA-3 Johnson Controls Acutator

    The M9220-HGA-3 from Johnson Controls stands out as a high-performance proportional electric spring return actuator meticulously engineered for HVAC system applications. With an impressive torque capacity of 177 in-lbs, this actuator excels in effectively controlling dampers and valves. Operating on a reliable 24 VAC power source, it ensures consistent and efficient performance. Noteworthy is its advanced design, featuring an adjustable start and span voltage mechanism. This innovative feature grants users the ability to fine-tune and precisely control the position of dampers or valves, enhancing overall system efficiency. Whether in commercial or industrial settings, the M9220-HGA-3 Johnson Controls acutator embodies Johnson Controls' commitment to delivering cutting-edge solutions for optimal HVAC system management.

    Key features:

    • Proportional control: The actuator can be positioned anywhere between 0 and 90 degrees based on the input voltage.
    • Spring return: When power is removed, the actuator automatically returns to its fully closed position.
    • Adjustable start and span: The start and span voltages can be adjusted to allow the actuator to operate over a specific range of the input voltage.
    • NEMA 2 (IP54) rated enclosure: The enclosure protects the internal components from dirt and moisture.
    • Minimum 60,000 cycles life expectancy: The actuator is designed to last for many years of trouble-free operation.

    Sings of faulty Johnson Controls M9220-HGA-3 J Acutator

    Here are the common signs of a faulty acutator:

  • Erratic movement: The damper/valve flutters or oscillates instead of smoothly transitioning between positions.
  • Incomplete travel: The damper/valve doesn't reach its full open or closed position despite receiving the appropriate signal.
  • Stuck position: The damper/valve remains stuck in one position regardless of the input voltage.
  • Increased noise: Unusual grinding, humming, or clicking sounds coming from the actuator.
  • No movement: The damper/valve shows no response to any voltage input.
  • Visible damage: Cracks, dents, or corrosion on the actuator housing.
  • Loose connections: Disconnected wires or terminals.
  • Leaking oil: Oil stains around the actuator could indicate internal seal failure.
  • Excessive heat: The actuator feels abnormally hot to the touch.
