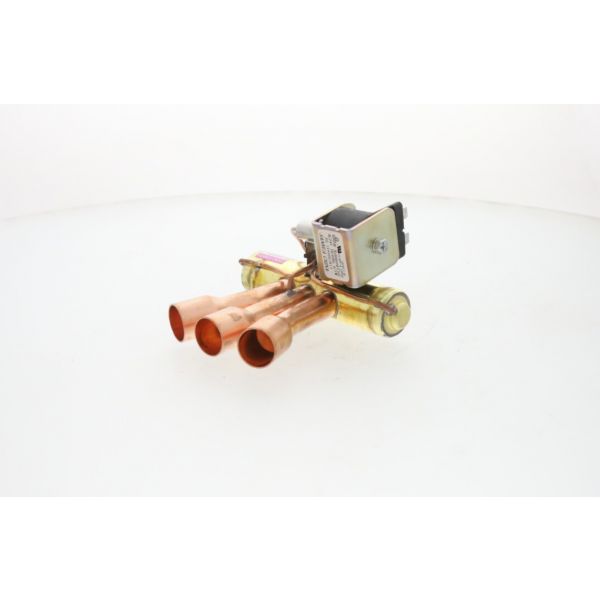

Lennox 34W44 24V Reversing Valve With Coil

Special Price $79.74 Regular Price $91.71
In stock
SKU
34W44
The Lennox 34W44 24V Reversing Valve with Coil is an essential accessory for HVAC systems which is used to reverse the flow of the heat pump to allow it to heat or cool the building. This reversing valve works based on the change of flow of refrigerant to maintain the right temperature in residential and commercial buildings. Due to its ability to help regulate the continuity of heating and cooling, it optimizes the efficient functioning of HVAC so conserving power while at the same time regulating on the comfort of the room.
Manufacturer:
https://www.partshnc.com/media/catalog/product/3/4/34w44.jpg

Specifications

  • Weight: 1.35lbs
  • Type: Reversing Valve
  • Measure: Unit

PRODUCT OVERVIEW:
The reversing valve directs refrigerant flow through a heat pump system, allowing the equipment to switch between heating and cooling operation. The Lennox 34W44 is an OEM 24V reversing valve assembly with an integrated solenoid coil. Designed for compatible Lennox heat pump systems, this four-way valve changes the refrigerant flow path between the indoor and outdoor heat exchangers to support both operating modes.

REFRIGERANT FLOW CONTROL:
The reversing valve uses an internal sliding mechanism to redirect compressor discharge refrigerant between the indoor and outdoor heat exchangers. This changes their roles as condenser and evaporator, allowing the heat pump to reverse the direction of heat transfer. The internal slide moves between alternate port positions to establish the required refrigerant flow path.

24V SOLENOID OPERATION:
The integrated 24V solenoid coil generates an electromagnetic field when energized by the equipment's control circuit. This actuates the internal pilot mechanism, creating a pressure difference that shifts the main valve slide. The resulting change in port connections allows the heat pump to switch between heating and cooling configurations.

REPLACEMENT GUIDELINES:
Replacement may be necessary when the valve fails to shift, develops internal refrigerant leakage, or experiences electrical failure in the solenoid coil. Before ordering, verify the existing part number, 24V operating voltage, valve configuration, and equipment requirements. This assembly requires opening the sealed refrigerant circuit, refrigerant recovery, and specialized brazing procedures. It is not a DIY replacement. A qualified HVAC refrigeration technician should perform the work and complete the required leak and operational checks.

COMMON FAILURE SYMPTOMS:

  • Heat pump remains in heating or cooling mode despite thermostat commands
  • Reduced heating or cooling performance due to internal refrigerant bypass
  • Failure of the reversing valve to shift between operating positions
  • Solenoid coil develops an open electrical circuit or short circuit
  • Refrigerant leakage around the valve body or connections

EQUIPMENT COMPATIBILITY:
The Lennox 34W44 is designed for compatible Lennox heat pump systems requiring a 24V reversing valve assembly with an integrated solenoid coil. Compatibility must be verified by matching the equipment model number, serial number, and existing part number against official manufacturer technical documentation before selection.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Lennox
Part Number/SKU: 34W44
Product Type: Reversing Valve With Coil
Operating Conditions:
Voltage: 24V
Additional Specifications:
Equipment Type: Heat Pump Systems

Write Your Own Review
You're reviewing:Lennox 34W44 24V Reversing Valve With Coil
Your Rating
Customer Questions
What maintenance is required for the Lennox 34W44 Reversing Valve With Coil?

Inspect the reversing valve and coil regularly for loose wiring, refrigerant leaks, or corrosion around connections. Keep the surrounding HVAC components clean to ensure accurate refrigerant flow and efficient heat pump operation. Verify proper coil operation during seasonal servicing. Always disconnect power before inspecting electrical terminals or servicing refrigerant components.

What are common issues with the Lennox 34W44 Reversing Valve With Coil?

  • Valve stuck in heating or cooling mode.
  • Coil burnout or electrical open circuit.
  • Refrigerant leakage near valve body or seals.
  • Delayed or failed switching between modes.

What is the function of the Lennox 34W44 reversing valve?

The Lennox 34W44 redirects refrigerant flow through a heat pump, allowing the equipment to switch between heating and cooling operation.

Does the Lennox 34W44 include a solenoid coil?

Yes. This reversing valve assembly includes an integrated 24V solenoid coil for electrical actuation of the internal valve mechanism.

How does the 24V solenoid operate the reversing valve?

The solenoid generates an electromagnetic field that actuates the pilot mechanism. Pressure differences then shift the main slide to change the refrigerant flow direction.

What should be checked before purchasing the Lennox 34W44?

Verify the existing part number, 24V operating voltage, valve configuration, and equipment model to ensure the replacement matches the heat pump requirements.

Does replacing the Lennox 34W44 require a qualified technician?

Yes. Replacing the complete reversing valve requires refrigerant recovery, opening the sealed refrigeration circuit, and specialized brazing work. A qualified HVAC refrigeration technician should perform the replacement.

Installation Steps

Step 1: Isolate electrical power and refrigerant pressure to ensure better operation conditions.

Step 2: Recover refrigerant and remove existing reversing valve and coil wiring connections carefully.

Step 3: Position new valve correctly, align ports with system line set before brazing connections.

Step 4: Braze refrigerant joints, then connect coil wiring according to schematic diagram.

Step 5: Pull vacuum, check for leaks, restore charge, and test heating and cooling mode operation.
