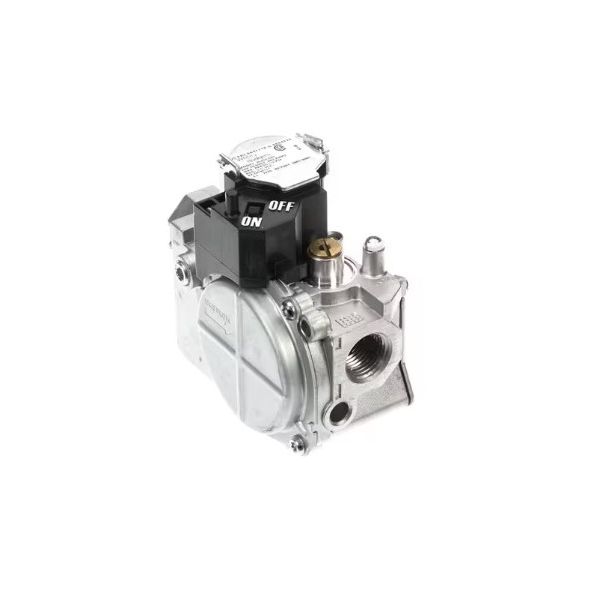

Carrier EF32CW151 1/2" Natural Gas Valve 3.5" WC 24V

Be the first to review this product
Special Price $144.49 Regular Price $166.16
In stock
SKU
EF32CW151
The Carrier EF32CW151 is a 24V natural gas pressure regulator built with durable pure copper. It plays a vital role in ensuring safe and efficient operation of gas-fired HVAC equipment like furnaces and boilers. By precisely regulating the flow of natural gas, it maintains a consistent pressure of 0.5 psi (measured in water column). This consistent pressure is crucial for optimal performance and prevents damage to the equipment caused by pressure fluctuations. The EF32CW151 is commonly found in residential and commercial HVAC systems, offering benefits Precise gas pressure control for safe and efficient operation of HVAC equipment * Durable construction for long-lasting performance Compatibility with various HVAC systems
Add to Wish List
HVAC Controls, HVAC Valve
Manufacturer:
https://www.partshnc.com/media/catalog/product/e/f/ef32cw151_1.jpg

Specifications

  • Size: 3.5Inch
  • Material: Pure copper
  • Pressure Regulator(psi): 0.5psi
  • Weight: 2.23lbs
  • Frequency: 50/60Hz
  • Type of Gas: Natural Gas
  • Voltage: 24V

Product Overview:
Serving as a primary gas control component, the Carrier EF32CW151 1/2" Natural Gas Valve 3.5" WC 24V manages natural gas flow within compatible heating systems. The valve operates through the equipment's 24V control circuit to regulate fuel passage toward the burner assembly during a heating demand. Positioned within the appliance gas train, it connects the incoming gas supply with the burner circuit while maintaining the specified gas-pressure setting and connection configuration for its application.

Fuel Passage Response:
Gas movement through the valve changes according to the position of the internal flow-control element. When the valve is commanded to its operating state, the passage becomes available for fuel to move through the connected pathway toward the burner circuit. When the valve returns to its closed state, the internal element interrupts the passage and restricts further gas movement. This response allows the valve to regulate fuel delivery according to the equipment's operating sequence.

Control Signal Shutoff:
Within the appliance operating sequence, this natural gas valve functions as an inline fuel shutoff device tied to the system control circuit. Signal input allows gas passage during active calls for heat. Interrupting the electrical signal stops gas flow to support basic system shutoff functions.

Replacement Guidelines:
Replacing the Carrier EF32CW151 gas valve may be appropriate when the component fails to open, fails to close properly, exhibits physical housing damage, or leaks gas. Conditions suggesting technical evaluation include an inability to ignite the burner despite active signals, unexpected flame disruption, or restricted gas flow.

Common Failure Symptoms:

  • Main burner fails to ignite during an active call for heat.
  • Heating unit does not maintain expected operating conditions when fuel delivery is inadequate.
  • Gas flow continues after the heating demand ends.
  • Intermittent disruption of fuel flow during active operation.
  • Presence of a gas odor, which indicates a critical safety concern requiring immediate technical attention.

Equipment Compatibility:
The Carrier EF32CW151 gas valve corresponds to systems requiring a 24V control circuit, 3.5" WC pressure rating, natural gas fuel, 1/2" connection size. Cross-reference the part number, fuel type, and electrical requirements against appliance technical documentation prior to selection to determine if this component matches your equipment specifications.

Technical Specifications:
Brand: Carrier
Part Number: EF32CW151
Product Type: Natural Gas Valve
Fuel Type: Natural Gas
Control Voltage: 24V
Connection Size: 1/2"
Pressure Specification: 3.5" WC

Reviews
Write Your Own Review
You're reviewing:Carrier EF32CW151 1/2" Natural Gas Valve 3.5" WC 24V
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Carrier EF32CW151 Gas Valve?

Inspect the valve regularly for leaks and corrosion, clean connections, and ensure proper operation of the system. Proper maintenance prevents gas leaks, ensures safe ignition, and maintains consistent fuel flow. Always follow safety guidelines when working with gas.

What are common issues with the Carrier EF32CW151 Gas Valve?

  • Failure to open or close fully.
  • Gas leaks from worn seals.
  • Intermittent ignition problems.
  • Electrical control malfunctions.

What does the Carrier EF32CW151 gas valve do in heating equipment?

The Carrier EF32CW151 is a natural gas valve that controls fuel passage within the heating equipment’s gas circuit.

How does the EF32CW151 support a call for heat?

The gas valve responds to the system control signal by permitting natural gas to pass toward the burner assembly.

Where does the EF32CW151 function within the heating equipment?

The gas valve functions within the appliance gas train between the incoming gas supply and the burner assembly.

What happens when the EF32CW151 control signal is interrupted?

The valve stops gas passage to the burner, providing the fuel shutoff action required within the appliance control sequence.

What maintenance considerations apply to the Carrier EF32CW151 gas valve?

The gas valve should be included in routine heating-equipment inspection and servicing to help verify proper gas-flow control and safe operation. Service should follow the equipment manufacturer’s instructions and applicable safety requirements.

Installation Steps

Step1: Turn off the main gas supply before installation to ensure safety.

Step2: Remove the old gas valve from the line, noting orientation and connections.

Step3: Apply pipe sealant or Teflon tape to the new valve threads.

Step4: Install the new valve, tightening securely without over-torquing.

Step5: Connect the control wires according to instructions.

Step6: Restore gas supply and check for leaks using a soapy water solution.

Step7: Test valve operation to ensure proper function.
