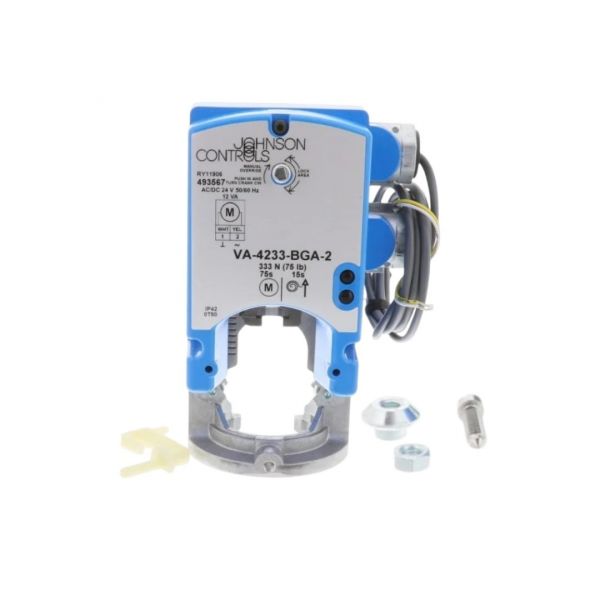

Johnson Controls VA-4233-BGA-2 Electric Valve Actuators Stroke 24V 2-Position 75lb 1/2" Stroke

Special Price $357.87 Regular Price $397.23
Out of stock
SKU
VA-4233-BGA-2
Johnson Controls VA-4233-BGA-2 Electric Valve Actuator is a small and reliable device for controlling the valves in HVAC systems, particularly in the systems where space is a concern. This direct mounted actuator is powered by a standard 24V AC power supply and has a simple two position control.Upon receipt of a signal, especially those with limited space. This direct-mounted actuator runs on a standard 24V AC power supply and has a straightforward two-position control scheme. When a signal is received, This movement usually serves to open or close the valve depending with the flow of either water or air within the HVAC system.
https://www.partshnc.com/media/catalog/product/v/a/va-4233-bga-2.jpg

Specifications

  • Weight: 3.31lbs
  • Type: Electric Valve Actuator
  • Voltage: 24 VAC
  • Force: 75 lb
  • Stroke Length: 1/2"
  • Control Type: 2-Position
  • Range Of Temperature: 32°F to 120°F

VA-4233-BGA-2 Johnson Controls Acutator

The VA-4233-BGA-2 by Johnson Controls stands out as a cutting-edge direct-mount, spring-return electric valve actuator tailored for precise on/off control in HVAC systems. Its seamless installation directly onto compatible Johnson Controls valves eliminates the need for extra linkage or adapters, streamlining the setup process. The VA-4233-BGA-2 Johnson Controls actuator excels in two-position control, fully opening the valve upon receiving the control signal and promptly closing it in its absence. A noteworthy safety feature is its spring-return mechanism, automatically returning the valve to the closed position in case of power loss, preventing uncontrolled flow. Moreover, the inclusion of a manual override enables manual adjustment of the valve position, providing added flexibility even when the power is off. This actuator combines efficiency with safety, making it an ideal choice for HVAC applications.

Key features:

  • Compact design: Fits in tight spaces and requires minimal installation time.
  • Durable: Built to withstand the demands of HVAC environments with a long cycle life.
  • Integral auxiliary switch: Provides one auxiliary switch for additional control functions, like indicating end-stop positions or activating other equipment.
  • Minimum 61 lb force output: Delivers sufficient power to control various valve types effectively.
  • Wide range of compatibility: Works with 1/2 in. to 1-1/4 in. VG7000 Series Bronze Control Valves and select Invensys valves with mounting kits.
  • Easy calibration: Features an AUTO stroke calibration function for straightforward setup.
  • Quiet operation: Minimizes noise disturbances in occupied spaces.

Signs of faulty Johnson Controls Acutator

  • Inconsistent flow or temperature: The valve doesn't fully open or close in response to the control signal, leading to fluctuations in airflow or water flow, and affecting room temperature or desired cooling/heating levels.
  • Leaking: Visible leaks around the valve stem or actuator body indicate internal component failure or improper sealing.
  • Sticking valve: The valve remains stuck in one position (open or closed) regardless of the control signal, disrupting system operation.
  • Unusual noises: Grinding, clunking, or buzzing sounds coming from the actuator might indicate internal component wear or malfunction.
  • No response to input signal: The actuator doesn't react to the control signal at all, suggesting electrical connection problems, faulty wiring, or internal electronic component failure.
  • Erratic behavior: The valve opens or closes intermittently or unexpectedly, potentially indicating issues with the control board or signal processing.
  • Burning smell: An electrical burning smell emanating from the actuator is a serious indicator of internal component failure and requires immediate attention.
  • Valve fails to return to closed position on power loss: This poses a safety risk and could lead to uncontrolled flow.
  • Valve closes unexpectedly during operation: This disrupts system operation and prevents proper temperature or air quality control.
