The Conbraco Industries 24-651-00 1/2” Chain Lever Water Gauge is a liquid level gauge used in the measurement of water levels in different HVAC systems. This gauge has a glass rod of 12 inches to facilitate the visibility of the liquid level to get accurate measurements. It connects with a 1/2-inch size, ideal for standard piping systems. This gauge is especially useful in regulating the refrigerant and coolant required in the system thereby improving efficiency and averting mechanical breakdowns.

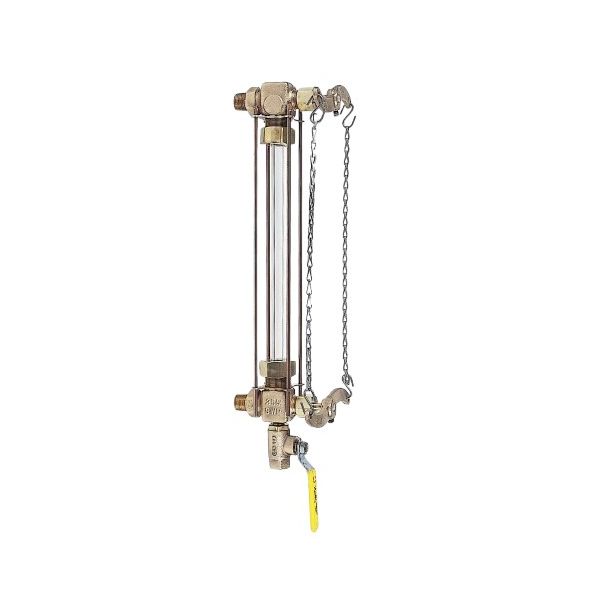

Conbraco Industries 24-651-00 Gauge Glass Chain & Lever Assembly
The Conbraco Industries 24-651-00 is a liquid level gauge used in various industrial and commercial applications to visually monitor the level of liquids in tanks, boilers, and other vessels. It's a reliable and accurate way to ensure proper liquid levels for efficient operation and safety. The Conbraco 24-651-00 is a 1/2" Gauge Glass Chain & Lever Assembly designed for use in high-pressure liquid-level gauges. It is commonly used in boilers, hydronic heating systems, and other industrial applications where monitoring liquid levels is critical. The Conbraco Industries 24-651-00 is a 1/2" gauge glass chain and lever assembly designed for use in high-pressure applications up to 500 PSI at 100°F and 250 PSI at 400°F.
Key features:
Function:
Visually monitors the level of liquids in tanks, boilers, and other vessels.
Technical Specifications:
Transparent gauge glass: Offers clear visibility of liquid level.
High-pressure rating: Available in 100 psi and 500 psi options (verify the specific model for exact rating).
Durable construction: sturdy glass and brass body for enduring use and corrosion resistance.
Automatic ball checks: Prevent backflow and ensure accurate readings.
Chain and lever operation: Easy and convenient adjustment of gauge glass position.
Refill valve: Allows replenishing the gauge glass liquid.
Variety of configurations: Different glass lengths, valve materials, and optional accessories are available (check specific model details).
Benefits:
Enhanced safety: Visual confirmation of liquid levels prevents overfilling and potential hazards.
Improved efficiency: Optimal liquid management and system operation.
Reduced maintenance: Durable construction minimizes maintenance needs.
Easy monitoring: Clear glass and convenient operation facilitate quick and accurate level checks.
Versatility: Suitable for various liquids and applications in diverse industries.
Applications:
Boilers: Monitor water level in boilers to prevent overfilling and ensure efficient operation.
Hydronic heating systems: Monitor coolant levels in hydronic heating systems to maintain proper system pressure and flow.
Other industrial applications: Monitor liquid levels in various industrial applications such as compressors, pumps, and tanks.
Additional Information:
Consult the Conbraco website or a qualified HVAC technician for specific sizing and installation requirements.
This is a gauge glass assembly only and does not include the gauge itself.
For information on correct installation, use, and maintenance, consult the manufacturer's instructions.
Signs of faulty Gauge Glass Chain & Lever Assembly 24-651-00 Conbraco Industries:
Inaccurate Readings:
Visible misalignment of the liquid level in the gauge glass compared to the actual level in the tank: This could indicate faulty ball checks, leaks, or a clogged gauge.
Sudden changes in the liquid level without any corresponding change in the actual tank level: This suggests leaks or internal component malfunctions.
Difficulty maintaining a stable liquid level reading in the gauge glass: This might indicate air bubbles trapped in the gauge or malfunctioning valves.
Physical Damage:
Cracked or broken gauge glass: This needs to be replaced right away since it presents a safety risk.
Leaks from the gauge body or connections: Leaks can compromise system integrity and cause damage.
Corrosion or visible damage to the bronze body, valves, or internal components: Corrosion can affect performance and lead to failures.
Operational Issues:
Difficulty adjusting the gauge glass position using the chain and lever mechanism: This could indicate worn-out components or binding within the system.
Stuck or malfunctioning refill valve: This can prevent proper replenishment of liquid in the gauge glass, hindering accurate readings.
Unusual noises or vibrations coming from the gauge: This might suggest internal component issues or loose connections.
Additional Clues:
Increased Gauge Glass Chain & Lever Assembly 24-651-00 maintenance needs for the gauge, such as frequent refilling or cleaning. This could indicate underlying problems affecting its performance.
System malfunctions or inefficiencies potentially linked to inaccurate liquid level readings. For example, overfilling or underfilling tanks due to unreliable gauge readings.
Remember:
If you suspect any of these signs, immediately shut down the system or equipment connected to the faulty gauge.
Do not attempt to repair the gauge yourself unless you have the necessary expertise and qualifications. Contact a qualified plumber or technician for diagnosis and repair.
Ignoring these warning indicators may result in increased maintenance expenses, system damage, and safety risks.
